Hydraulic mini excavator high quality excavator
Introduction to 1.8 ton mini excavator:

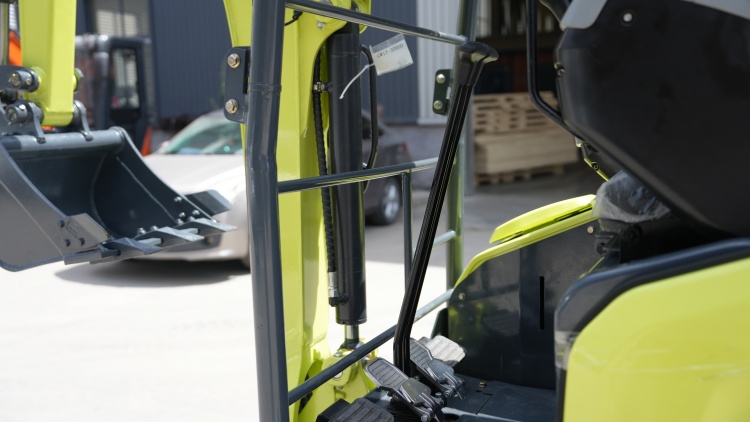

1.Hydraulic pilot operating system, smoother excavation and lifting movements, and lighter operation!
2.The color and appearance style can be personalized according to customer needs.
3. There are a wide variety of optional accessories, including hydraulic breakers, drill bits, rakes, quick couplings, blade cutters, wood clamps, and buckets of various sizes, to meet the needs of different application scenarios.
4. Customers can freely choose different types of engines according to their actual usage needs to adapt to various working environments.
5. Our professional factory provides customized services, not only can we tailor exclusive logos for customers, but we can also help customers create exclusive brands and become your trusted partner.

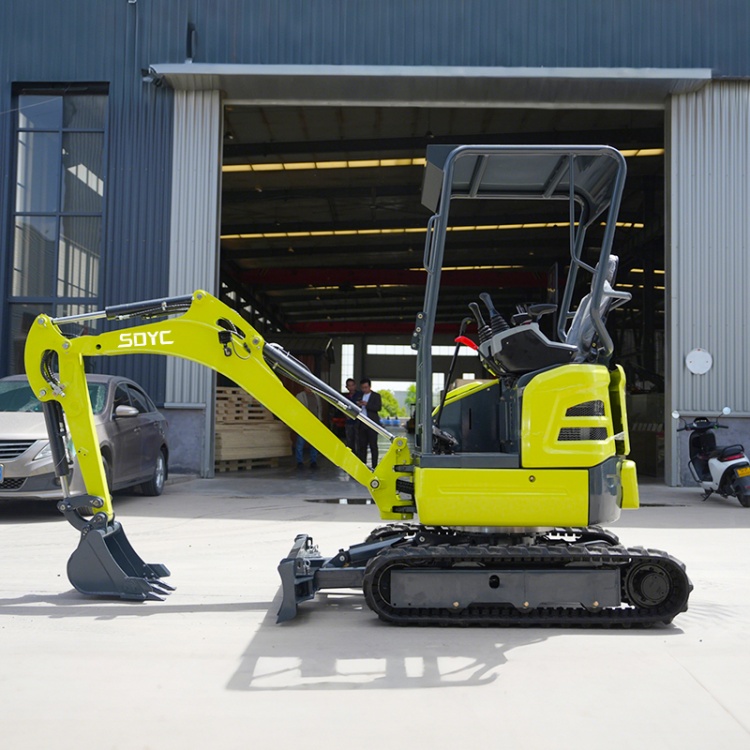

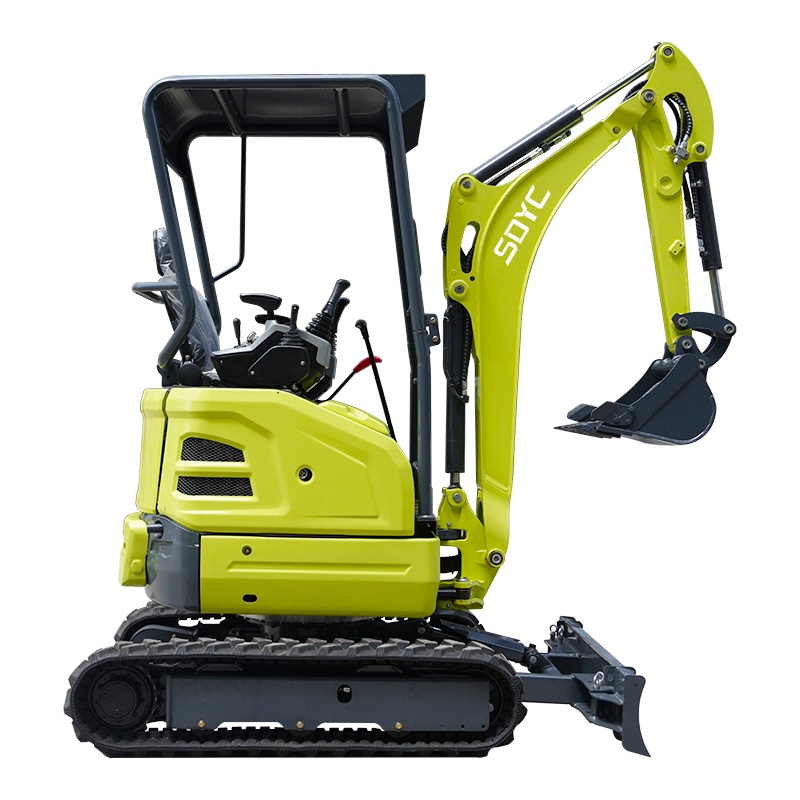

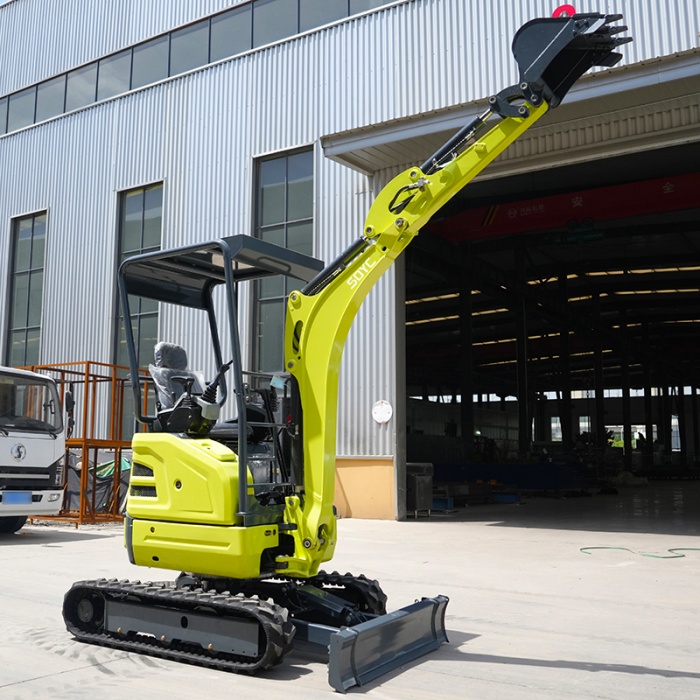

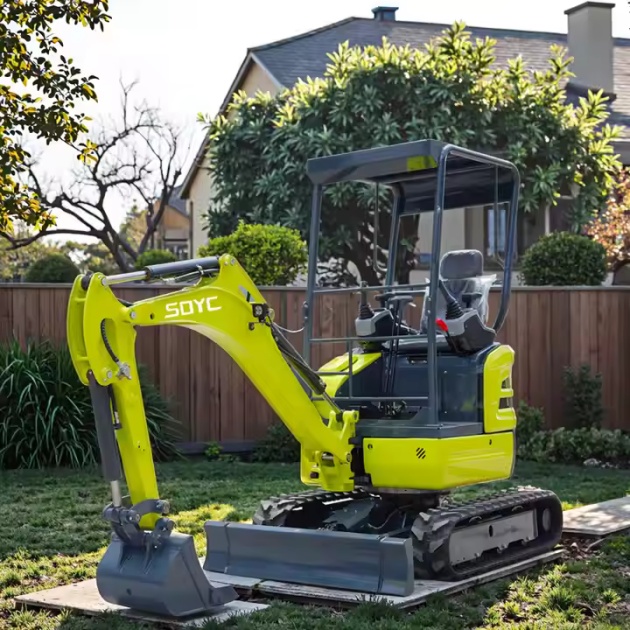

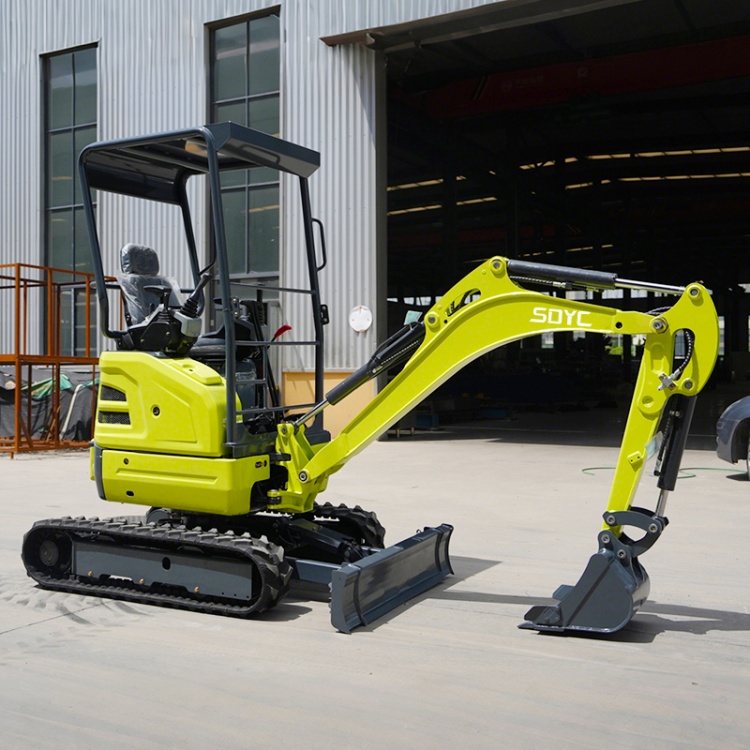

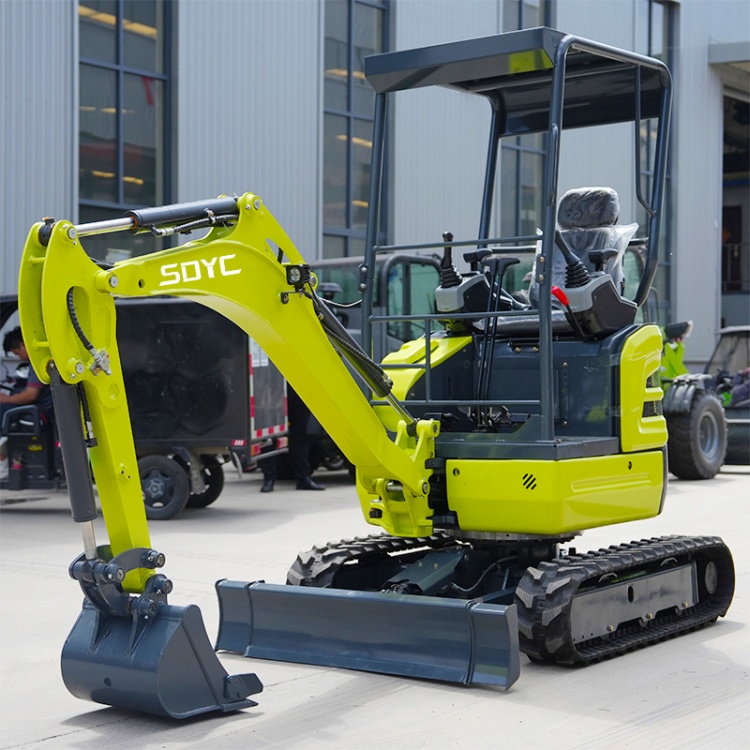

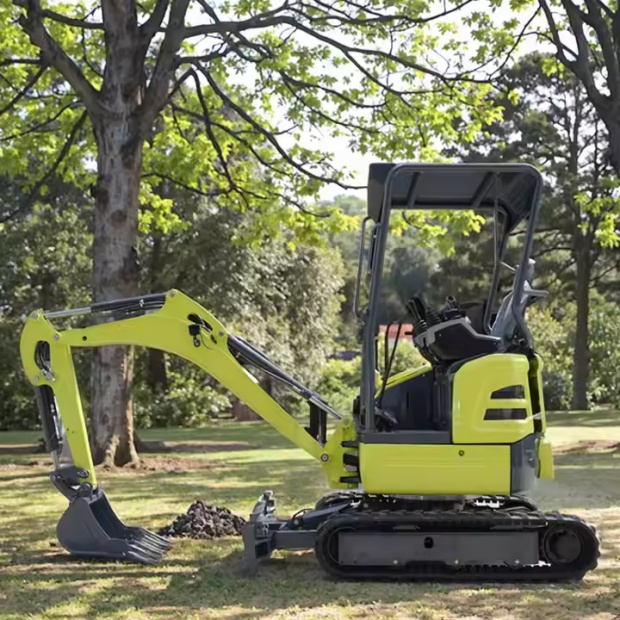

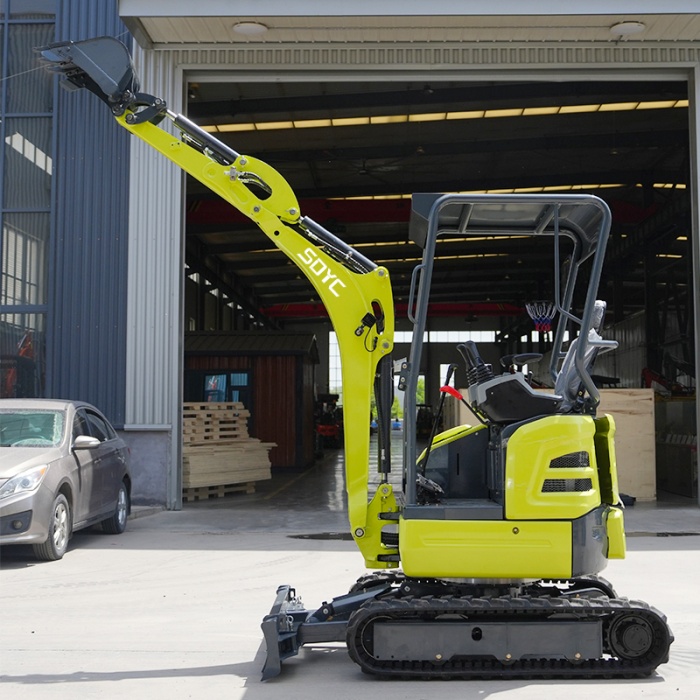

The YC-18 mini excavator is compact, flexible, sturdy, and durable, providing stable and reliable digging work. It is suitable for various agricultural, forestry, and municipal operations, such as digging fertilizer trenches, planting trees, weeding, soil cultivation, land clearing, dry toilet renovation, terrace repair, digging ditches, creating small roads, and deep tilling in vegetable greenhouses. It is characterized by its powerful performance, low noise, low emissions, and low fuel consumption.
| SPECIFICATION | Unit | Numeric |
| Operating weight | kg | 1800 |
| Bucket capacity | m3 | 0.04 |
| Working device form | / | 反铲 Backhoe |
| Fuel tank capacity | L | 19 |
| Engine | Unit | Numeric |
| Model | / | KubotaD902-E4B-CBH-1 |
| Displacement | L | 0.898 |
| Engine power/rpm | kw/r（PS / rpm） | 11.8 / 2300 (16.1 / 2300) |
| Max. torque | N.m/ r/min | 51.3 /1800 |
| Engine oil capacity | L | 3.7 |
| Speed/Digging force | Unit | Numeric |
| Max.Speed | km/h | 2.2/4.5 |
| Swing speed rpm | rpm | 9.5 |
| Max. Grade ability | ° | 30° |
| Bucket digging force kN | kN | 16 |
| Bucket arm digging force kN | kN | 9.5 |
| Maximum tractive force kN | kN | 18 |
| Main Dimension | Unit | Numeric |
| Wheel base | mm | 1230 |
| Track length | mm | 1595 |
| Upper chassis ground clearance | mm | 460 |
| Counter weight turning radius | mm | 735 |
| Chassis width | mm | 990/1300 |

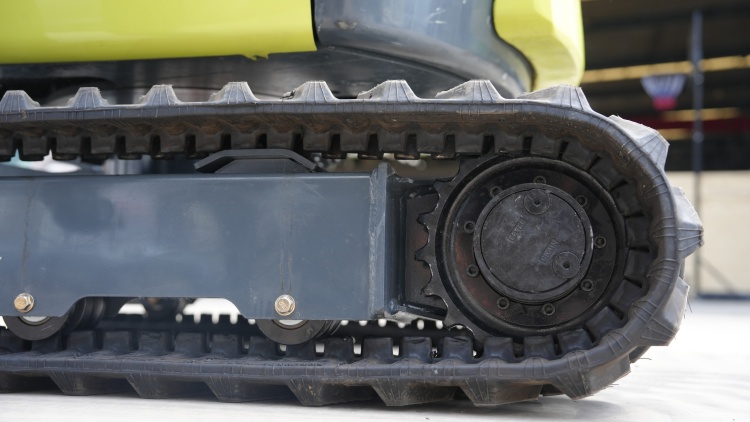

| Track width | mm | 230 |
| Track height | mm | 380 |
| Transportation length | mm | 3600 |
| Total height | mm | 2450 |
| Bucket overall width | mm | 485 |
| Operation Range | Unit | Numeric |
| Max. digging radius on ground | mm | 3840 |
| Max. digging radius | mm | 3910 |
| Max. digging depth | mm | 2270 |
| Max. digging height | mm | 3570 |
| Max. dumping height | mm | 2480 |
| Maximum vertical digging depth | mm | 1910 |
| Minimum turning radius | mm | 1540 |

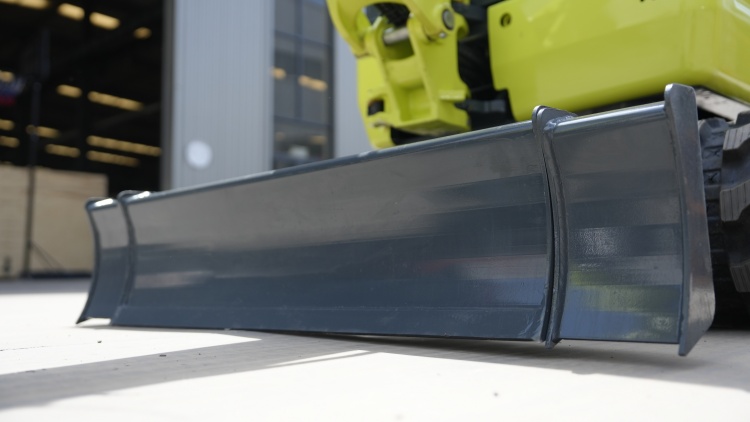

| Maximum Lift Of Dozer blade | mm | 280 |
| Maximum depth Of Dozer blade | mm | 190 |
Our advantages:
1.YC-18 mini excavator is one of the main models of small excavators in our company.
2.Its design is compact and flexible, especially suitable for efficient operations in narrow spaces such as farmland renovation and orchard planting.
3.The YC-18 excavator has excellent excavation capabilities and efficient work performance, providing strong support for your project.
4.If you have any questions about the specific parameters or performance of the YC-18 excavator, please feel free to contact us and we will provide you with detailed information.
Who We Are:
EACHAN GROUP (SDYC) is a leading manufacturer of mini excavators in China. Our products are certified with CE standards, comply with European Stage V and U.S. EPA Tier 4 emission regulations, and have been exported to over 40 countries worldwide, earning an excellent reputation for quality and reliability.
