Hot Selling 2.5 ton Diesel Forklift
Our advantages
1. Currently, EACHAN GROUP (SDYC) has developed multiple product lines, including 0.75-5 ton electric balance weight forklifts and 2-10 ton fuel balance weight forklifts.
2. The supporting manufacturers of gearboxes, gear pumps, multi way valves, drive axles, steering axles, oil pipe joints, batteries, battery boxes, engines, oil cylinders, tires, and instruments are all leading in the domestic industry.
3. Support customization, with multiple colors to choose from.
4. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
5. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
Product Introduction
This 2.5-ton diesel forklift has a reliable power system. Equipped with a well-known gearbox specially developed and produced for this type of car. This product has been validated in the market for decades and is a well-known and reliable transmission system in the industry, greatly reducing the failure rate of the entire vehicle. At the same time, multiple power system auxiliary equipment effectively ensure the reliability of the system's operation.
Product parameters
Model | YC25-KII | |||
Power type | diesel | |||
Rated capacity | kg | 2500 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 130 | ||
Fork size | LxWxT | mm | 1070x122x40 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 441 | ||
Rear overhang | mm | 520 | ||
Min.ground clearance(Bottom of mast) | mm | 115 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 2595 | |
Overall width | mm | 1160 | ||
Mast lowered height | mm | 1980 | ||
Mast extended height (with backrest) | mm | 4050 | ||
Overhead guard height | mm | 2220 | ||
Tuming radius(outside) | mm | 2480 | ||
Speed | Travel(Unladen) | km/h | 19 | |
Lifting(Laden) | mm/sec | 540 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 17(14.5) | ||
Max.Gradeability(Laden) | % | 20 | ||
Tyre | Front | mm | 7.00-12-12PR | |
Rear | mm | 6.00-9-10PR | ||
Tread | Front | mm | 970 | |
Rear | mm | 980 | ||
Wheelbase | mm | 1650 | ||
Self weight（oily water） | kg | 3510 | ||
Weight Distribution | Laden | Front Axle | kg | 5410 |
Rear Axle | kg | 610 | ||
Unladen | Front Axle | kg | 1280 | |
Rear Axle | kg | 2230 | ||
Rattan | Voltage/Capacity | V/Ah | 12/80 | |
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 39/2650 | ||
Rated torque/r.p.m. | N-m | 160/1980 | ||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | 90x100 | ||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||
Product advantages
1. Reliable transmission device.
2. Equipped with an intake system.
3. Optional air filter pressure alarm device.
4. Whirlwind air filter.
5. Lost foam casting box body.
6. Automatic engine preheating system.
7. Compliant with National IV standards, compared to National III models, the overall vibration and noise of the vehicle are significantly reduced.

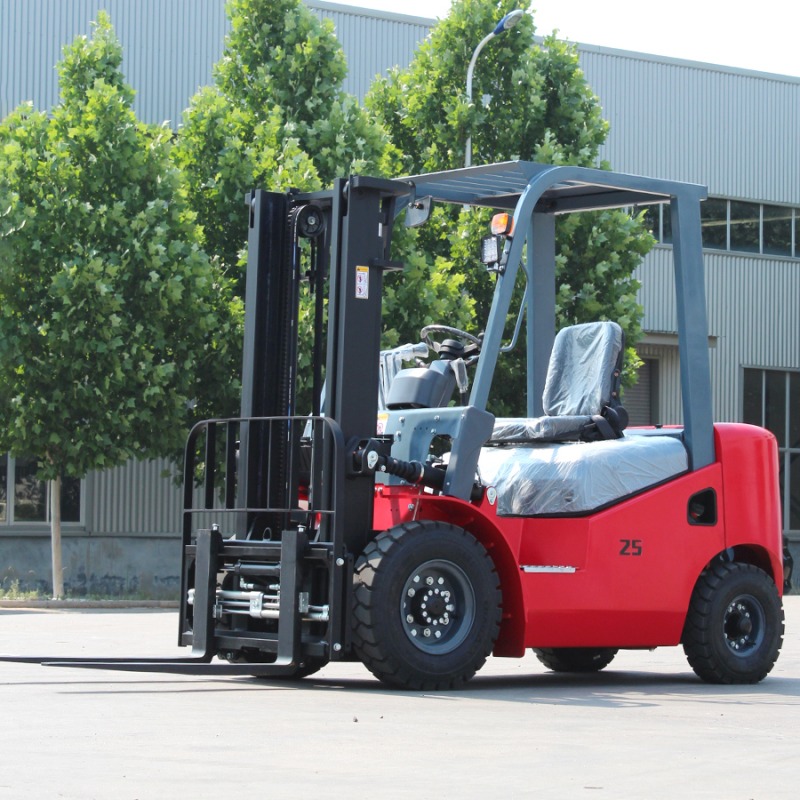

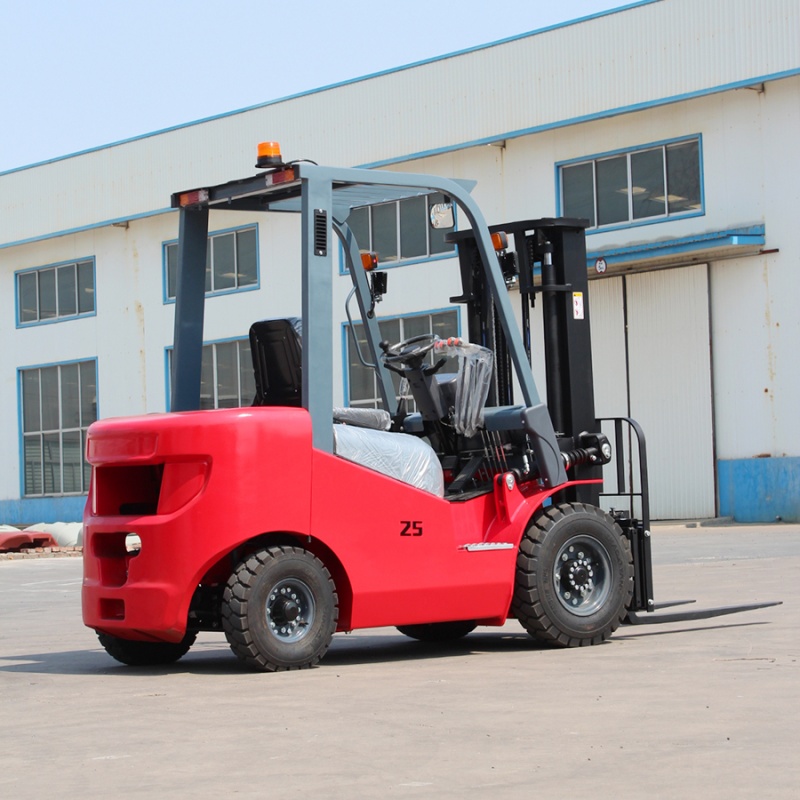

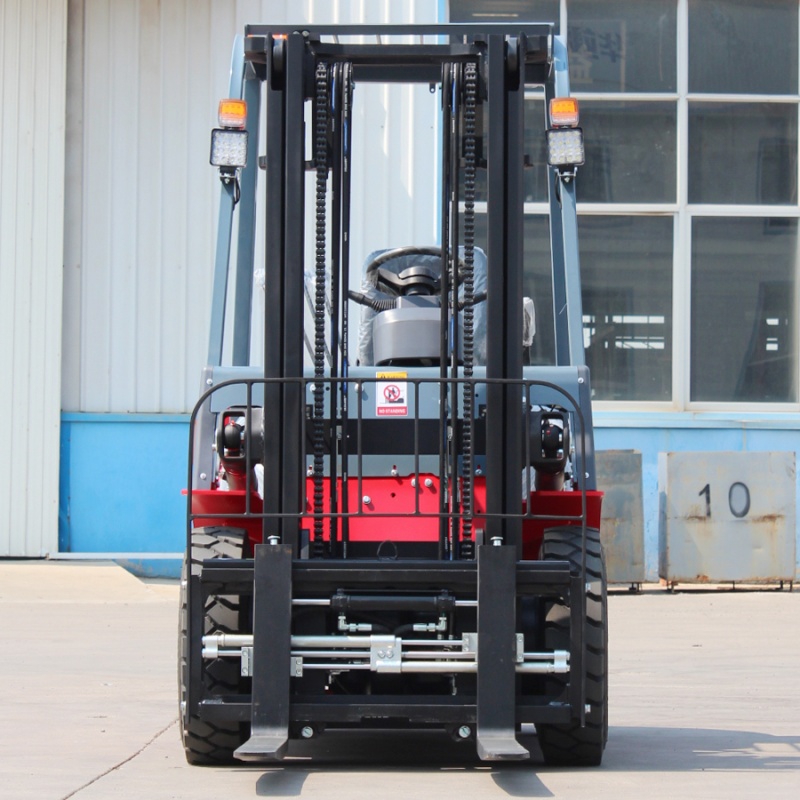

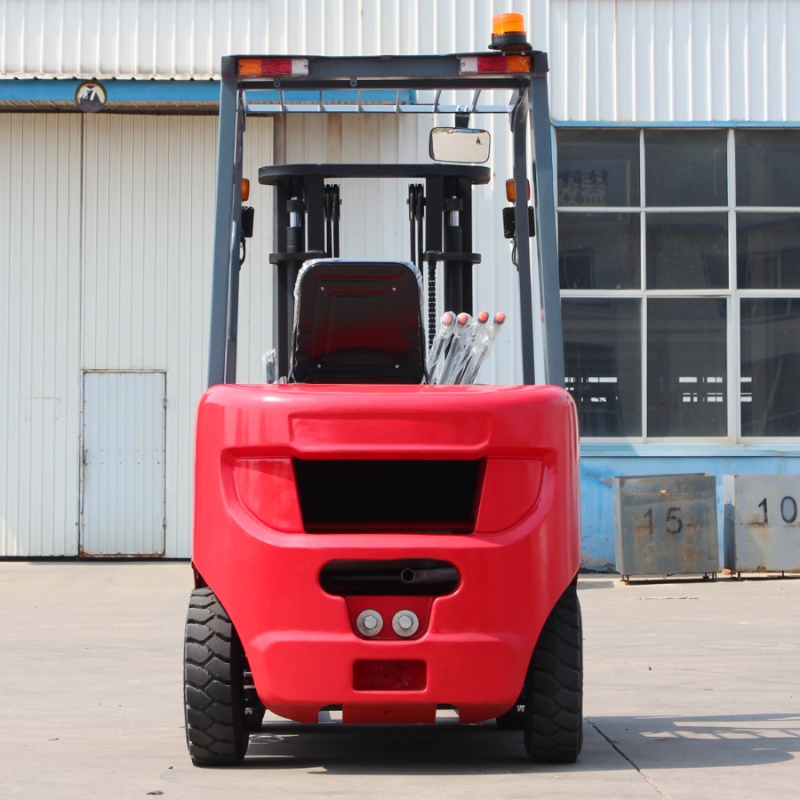

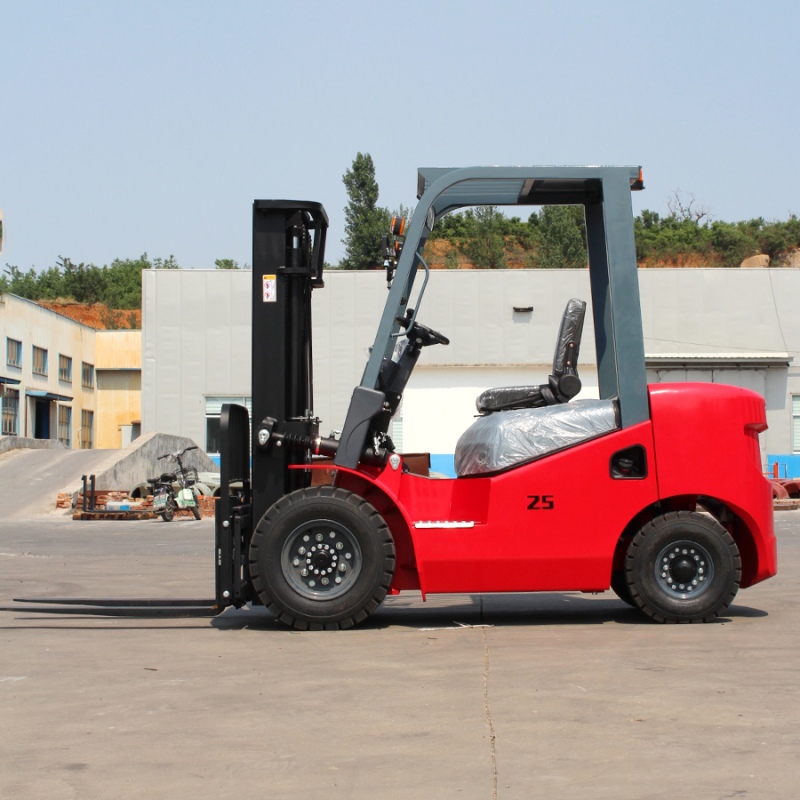

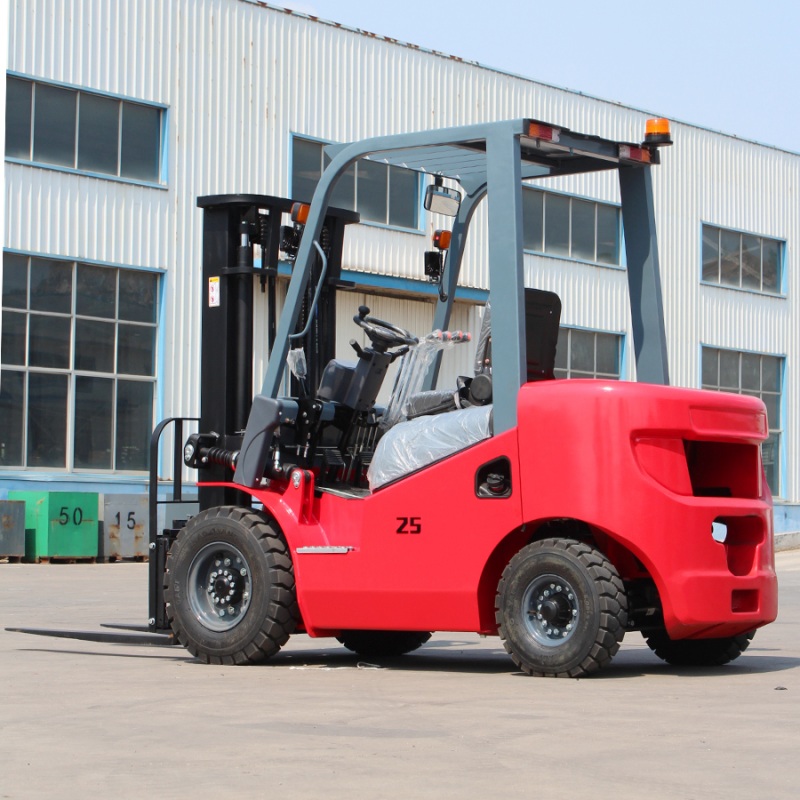

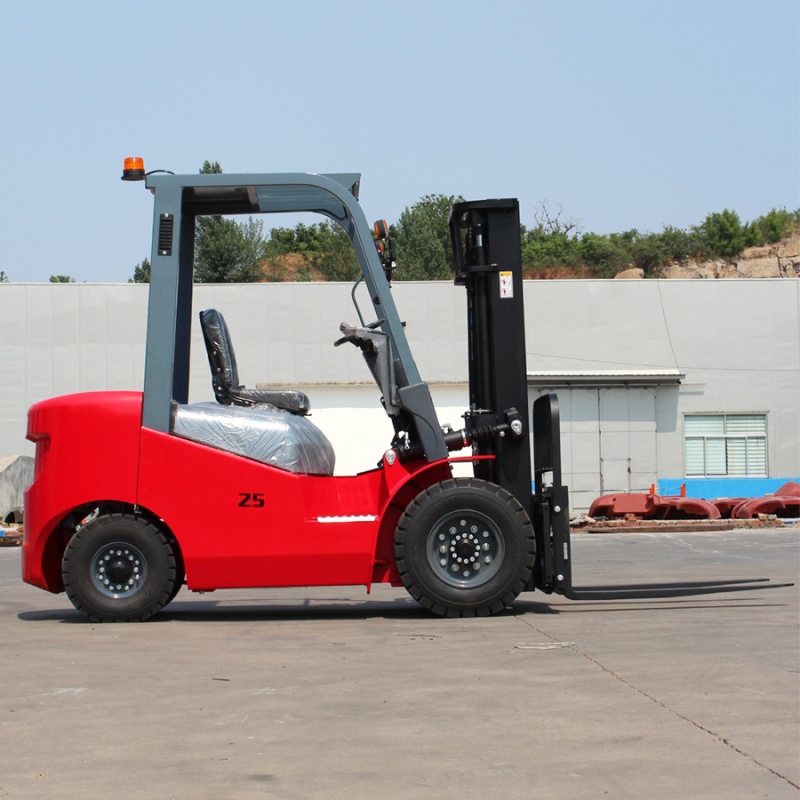

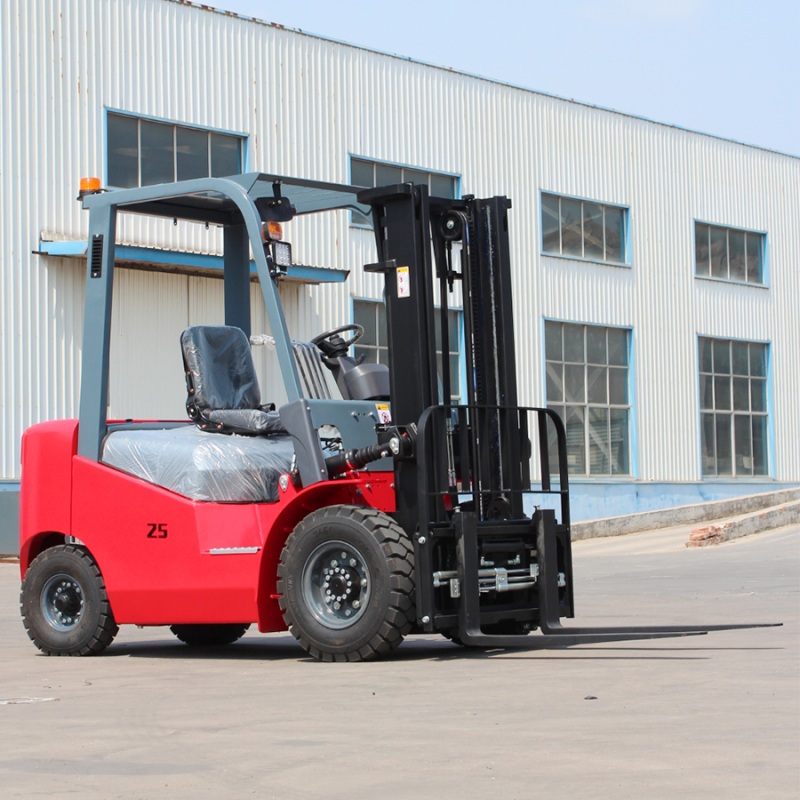

Product Display
About Us
EACHAN GROUP (SDYC) forklifts are widely concerned and favored by domestic and foreign customers for their exquisite appearance, reliable performance, and high-quality service. SDYC forklift adheres to the principle of "adhering to ideals and beliefs, only producing high-quality and high-end products", and takes internationalization, specialization, and green environmental protection as standards, striving to build SDYC forklift into the most popular forklift brand among customers worldwide.

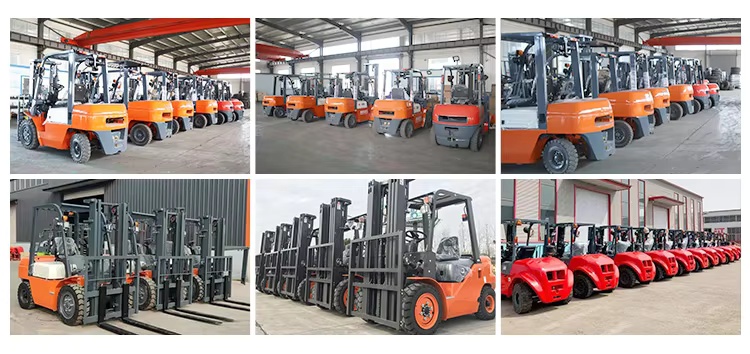

EACHAN GROUP (SDYC) has advanced component machining centers, robot welding equipment, forklift component test benches, painting assembly lines, final assembly lines, and complete machine performance testing lines. At present, SDYC products have developed multiple product series, including 0.75-5 ton electric balance weight forklifts, 2-10 ton fuel balance weight forklifts, loaders, multifunctional storage vehicles, etc.
