Chinese mini excavator factory

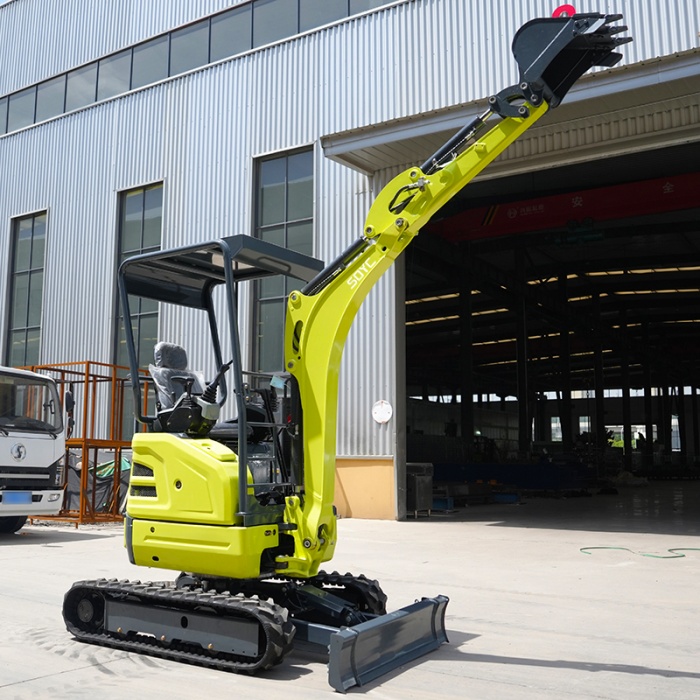

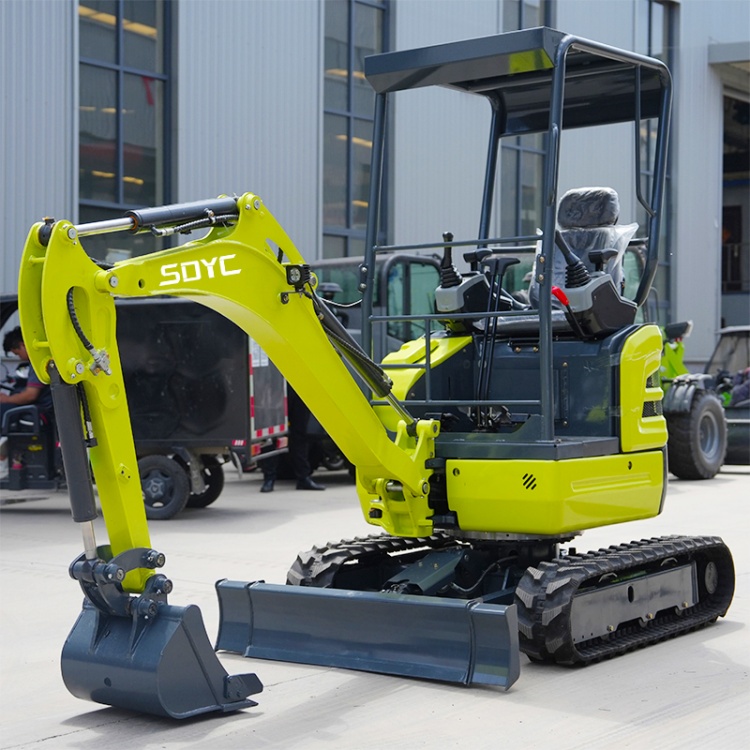

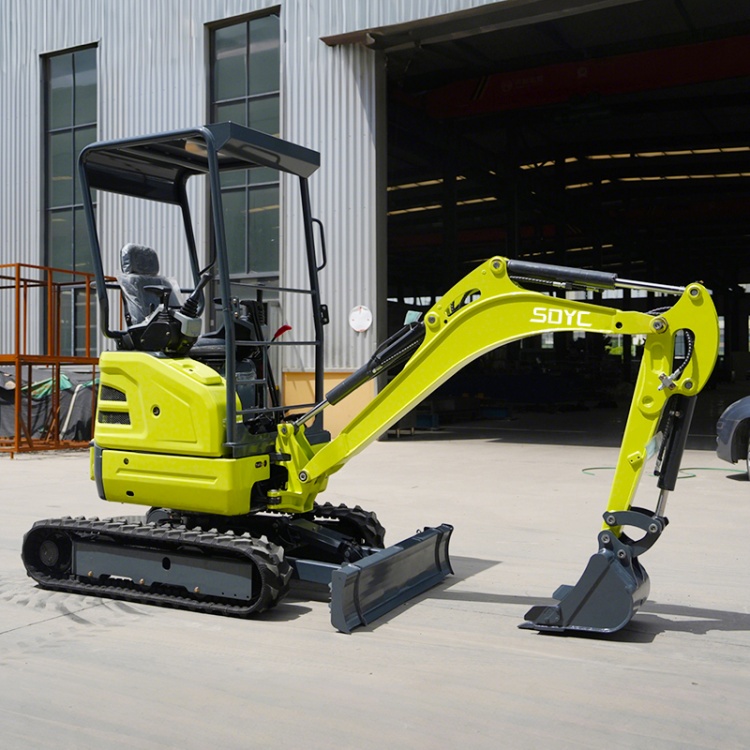

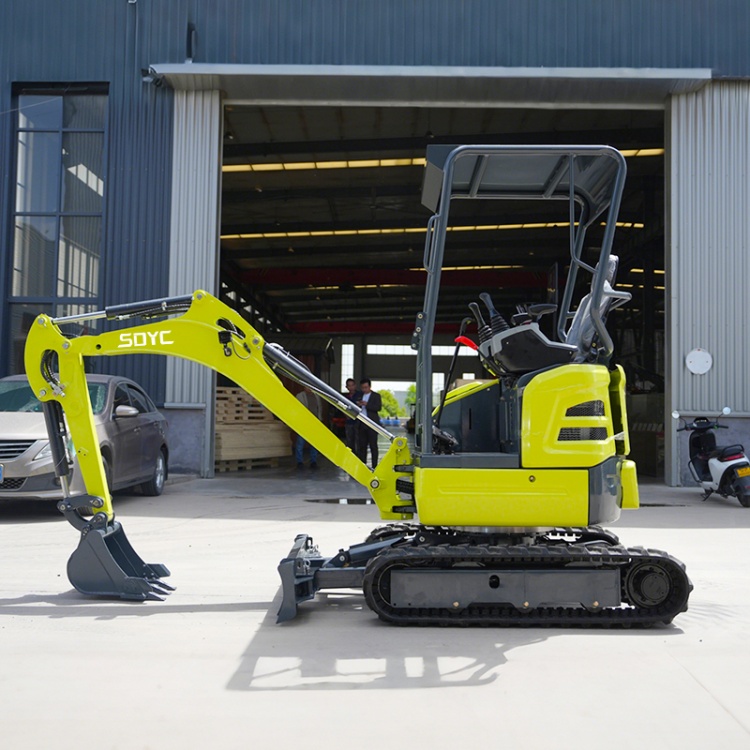

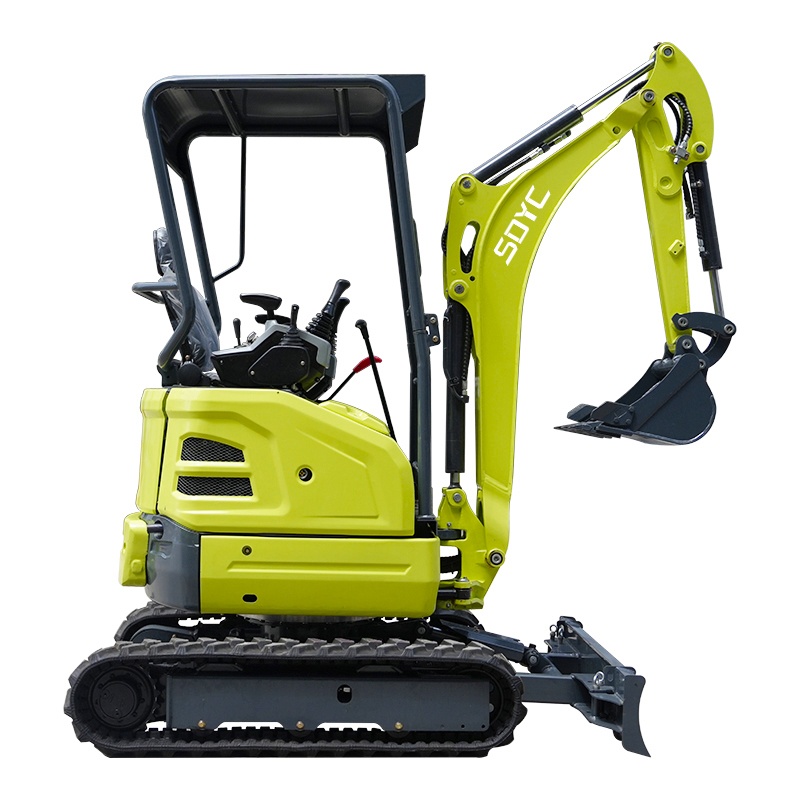

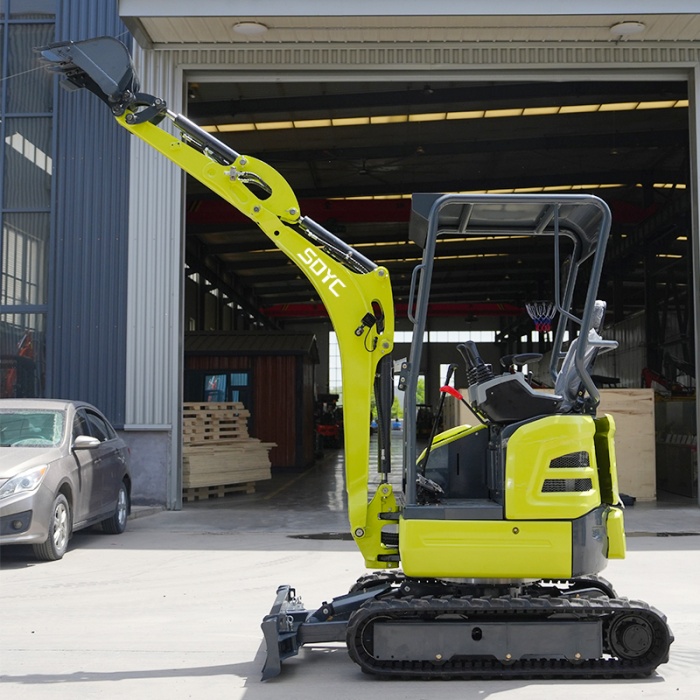

YC-18 mini excavator introduction:
We are a Chinese excavator factory its cost-effective machines and global supply! This small excavator provides working weights of 1.8 tons and 2 tons. The model is specially designed for urban construction and nursery greening fields, with the following notable features:
1. Compact and flexible: the body is small and exquisite, suitable for narrow space operation.
2. Strong power: equipped with high-performance engine, strong power and good fuel economy to ensure long-term stable operation.
3. Adopting advanced hydraulic transmission technology and low noise design, it meets the latest national environmental protection standards and becomes an ideal choice for green construction.
4. Easy to transport: it can be transported by a small truck.
The 1.8 ton mini excavator we produce has the advantages of high cost performance, light weight and easy maintenance. Due to its exquisite, flexible, intelligent and efficient characteristics, it is well received by customers. Compared with large excavators, small excavators have more application scenarios.
Mini excavators are lightweight and flexible, making them ideal for a variety of pipeline excavation, infrastructure construction, utility and house maintenance operations in urban areas. The small size and special design of Miniexcavators enable them to work in environments that large excavators cannot operate.
| SPECIFICATION | Unit | Numeric |
| Operating weight | kg | 1800 |
| Bucket capacity | m3 | 0.04 |
| Working device form | / | 反铲 Backhoe |
| Fuel tank capacity | L | 19 |
| Engine | Unit | Numeric |
| Model | / | KubotaD902-E4B-CBH-1 |
| Displacement | L | 0.898 |
| Engine power/rpm | kw/r（PS / rpm） | 11.8 / 2300 (16.1 / 2300) |
| Max. torque | N.m/ r/min | 51.3 /1800 |
| Engine oil capacity | L | 3.7 |
| Speed/Digging force | Unit | Numeric |
| Max.Speed | km/h | 2.2/4.5 |
| Swing speed rpm | rpm | 9.5 |
| Max. Grade ability | ° | 30° |
| Bucket digging force kN | kN | 16 |
| Bucket arm digging force kN | kN | 9.5 |
| Maximum tractive force kN | kN | 18 |
| Main Dimension | Unit | Numeric |
| Wheel base | mm | 1230 |
| Track length | mm | 1595 |
| Upper chassis ground clearance | mm | 460 |
| Counter weight turning radius | mm | 735 |
| Chassis width | mm | 990/1300 |
| Track width | mm | 230 |
| Track height | mm | 380 |
| Transportation length | mm | 3600 |
| Total height | mm | 2450 |
| Bucket overall width | mm | 485 |
| Operation Range | Unit | Numeric |
| Max. digging radius on ground | mm | 3840 |
| Max. digging radius | mm | 3910 |
| Max. digging depth | mm | 2270 |
| Max. digging height | mm | 3570 |
| Max. dumping height | mm | 2480 |
| Maximum vertical digging depth | mm | 1910 |
| Minimum turning radius | mm | 1540 |

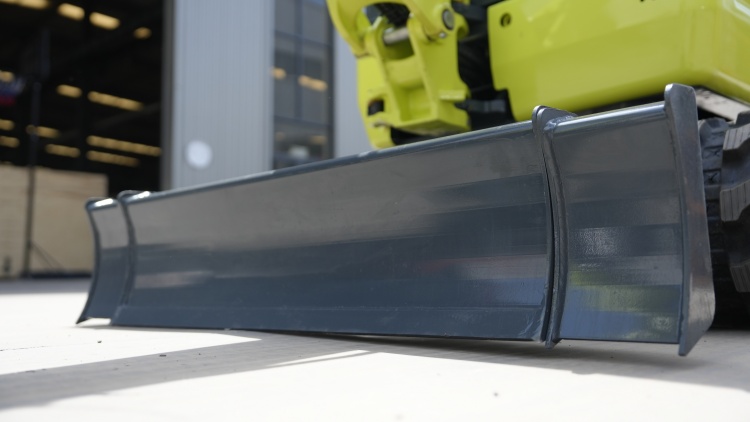

| Maximum Lift Of Dozer blade | mm | 280 |
| Maximum depth Of Dozer blade | mm | 190 |

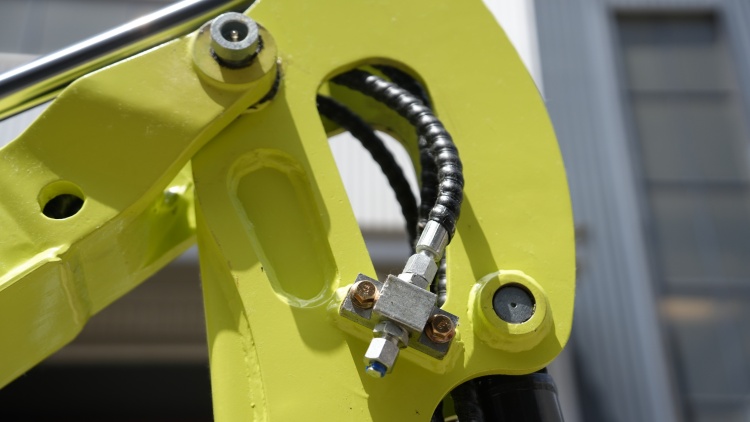

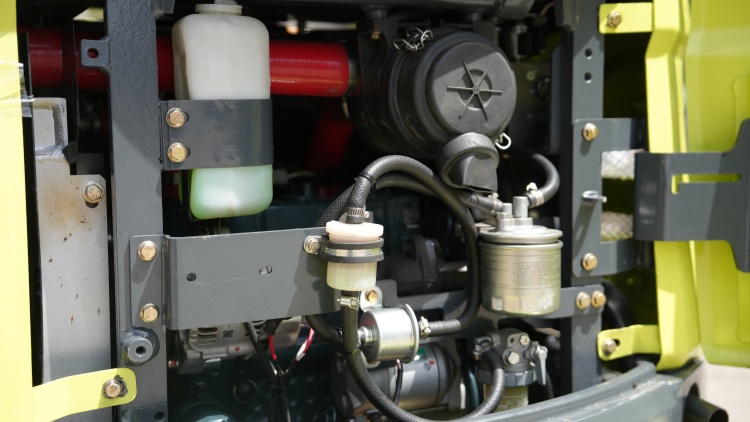

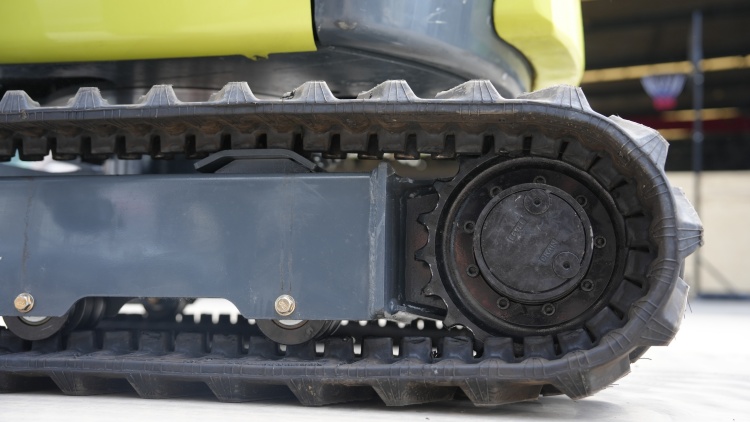

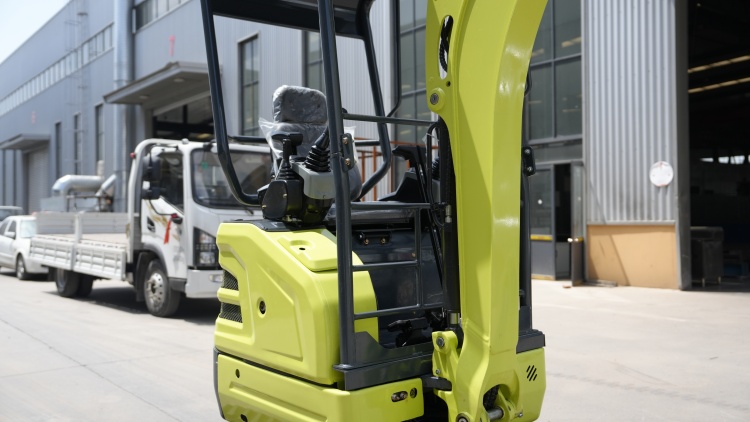

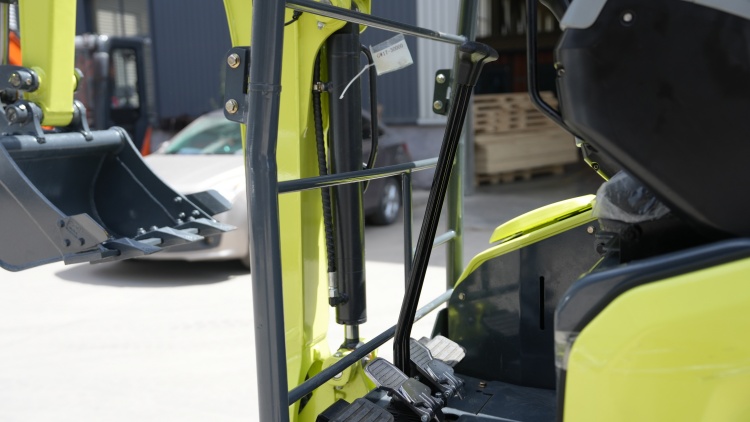

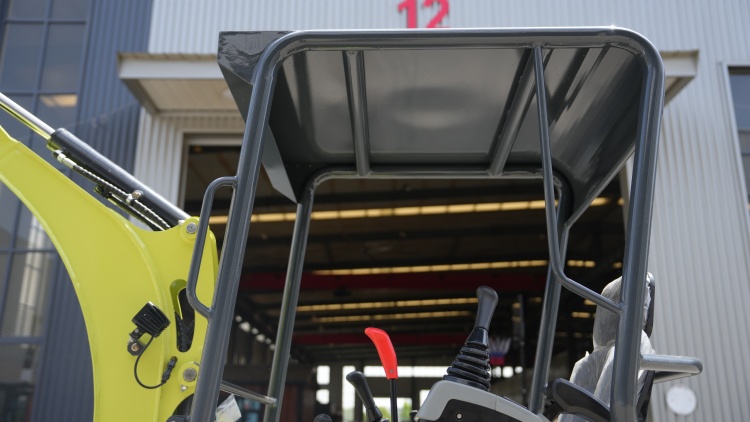

Product details display
All accessories are available here.
Support Multi-Function Operation, Cabin,Air conditioning,Swing boom , Telescopic crawler track function can be optional.
Use our Quick coupler(quick hitch) can add the attachment tools like: driller auger, hydraulic breaker hammer, trailer,20cm--100cm bucket, rake,gripper, wood grab and so on.
Dear friends, due to the word limit of the webpage, the product introduction is not complete. If you need more information, please contact us!
