Diesel Forklift 5 ton
Product advantages
1. Reliable transmission device.
2. Equipped with an intake system.
3. Optional air filter pressure alarm device.
4. Whirlwind air filter.
5. Lost foam casting box body.
6. Automatic engine preheating system.
7. Compliant with National IV standards, compared to National III models, the overall vibration and noise of the vehicle are significantly reduced.
Product Introduction
This 2.5-ton diesel forklift features a robust and reliable power system, equipped with a renowned gearbox specifically designed and manufactured for this model. Validated by decades of market performance, this transmission system is recognized in the industry for its reliability and significantly reduces the overall vehicle failure rate. Additionally, multiple auxiliary power system components ensure consistent and dependable operation.
Our advantages
1. Currently, EACHAN GROUP (SDYC) has developed multiple product lines, including 0.75-5 ton electric balance weight forklifts and 2-10 ton fuel balance weight forklifts.
2. The supporting manufacturers of gearboxes, gear pumps, multi way valves, drive axles, steering axles, oil pipe joints, batteries, battery boxes, engines, oil cylinders, tires, and instruments are all leading in the domestic industry.
3. Support customization, with multiple colors to choose from.
4. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
5. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
Product parameters
Model | YC50-K | |||
Power type | diesel | |||
Rated capacity | kg | 5000 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 150 | ||
Fork size | LxWxT | mm | 1070x150x50 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 560 | ||
Rear overhang | mm | 580 | ||
Min.ground clearance(Bottom of mast) | mm | 175 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 3240 | |
Overall width | mm | 1480 | ||
Mast lowered height | mm | 2275 | ||
Mast extended height (with backrest) | mm | 4310 | ||
Overhead guard height | mm | 2350 | ||
Tuming radius(outside) | mm | 3050 | ||
Speed | Travel(Unladen) | km/h | 18.5 | |
Lifting(Laden) | mm/sec | 400 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 24(20) | ||
Max.Gradeability(Laden) | % | 20 | ||
Tyre | Front | mm | 300-15-18PR | |
Rear | mm | 700-12-14PR | ||
Tread | Front | mm | 1180 | |
Rear | mm | 1190 | ||
Wheelbase | mm | 2100 | ||
Self weight（oily water） | kg | 6660 | ||
Weight Distribution | Laden | Front Axle | kg | 9680 |
Rear Axle | kg | 1480 | ||
Unladen | Front Axle | kg | 2865 | |
Rear Axle | kg | 3795 | ||
Rattan | Voltage/Capacity | V/Ah | ||
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 48/2300 | ||
Rated torque/r.p.m. | N-m | |||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | |||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 90 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

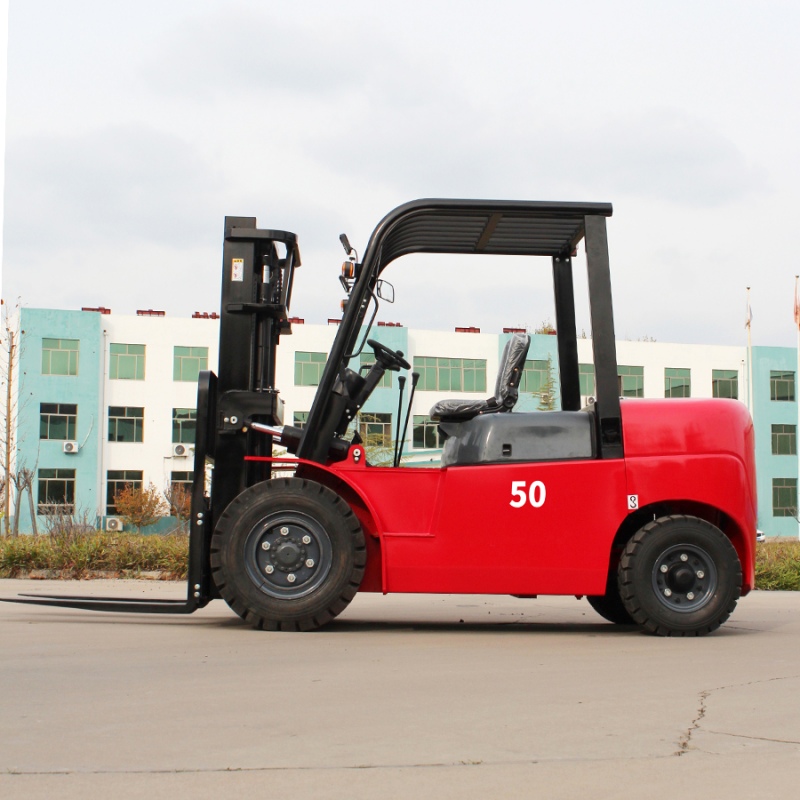

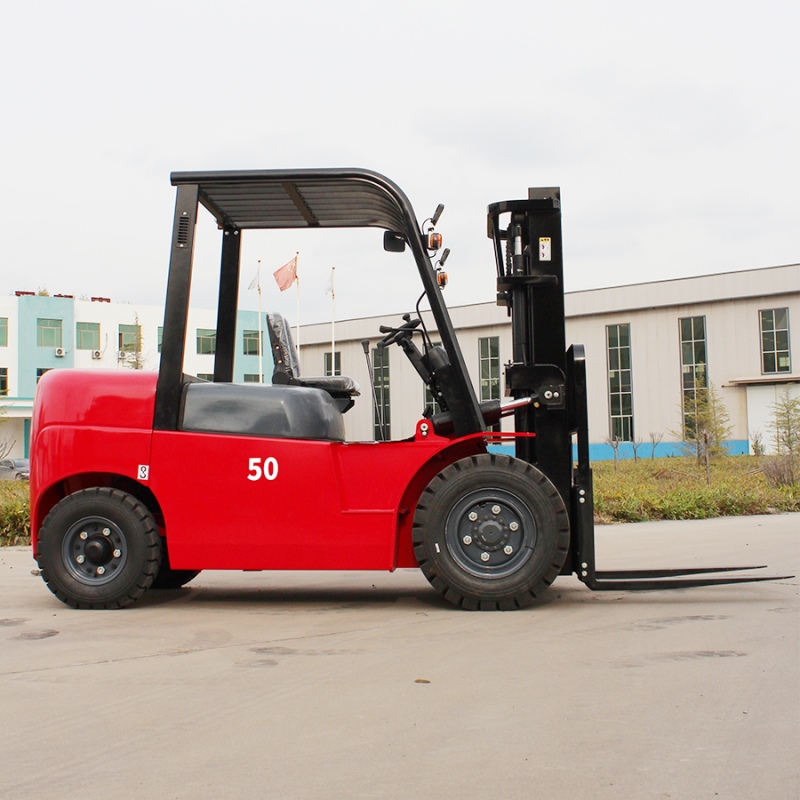

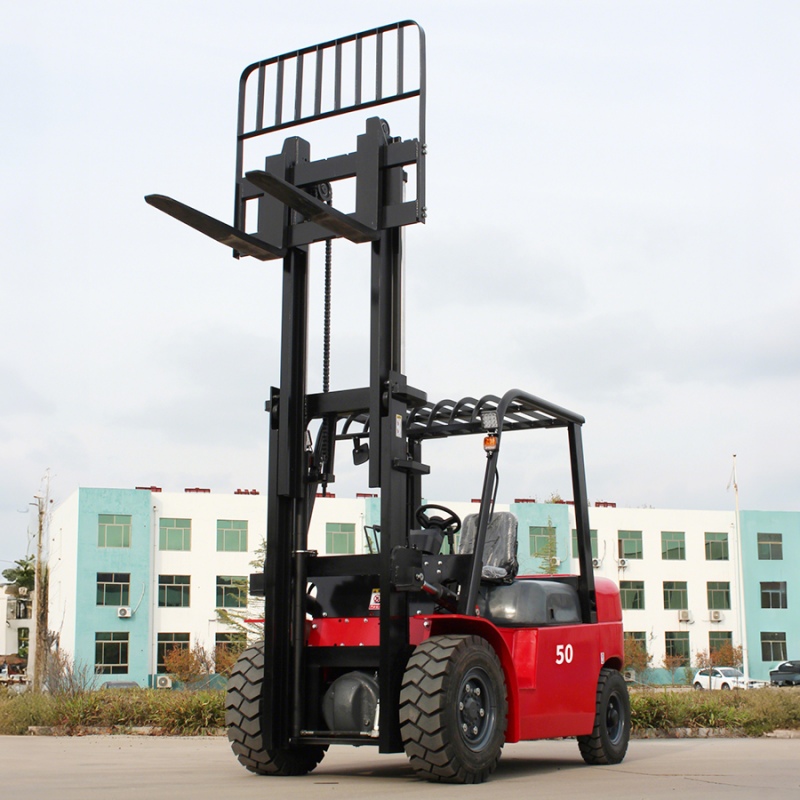

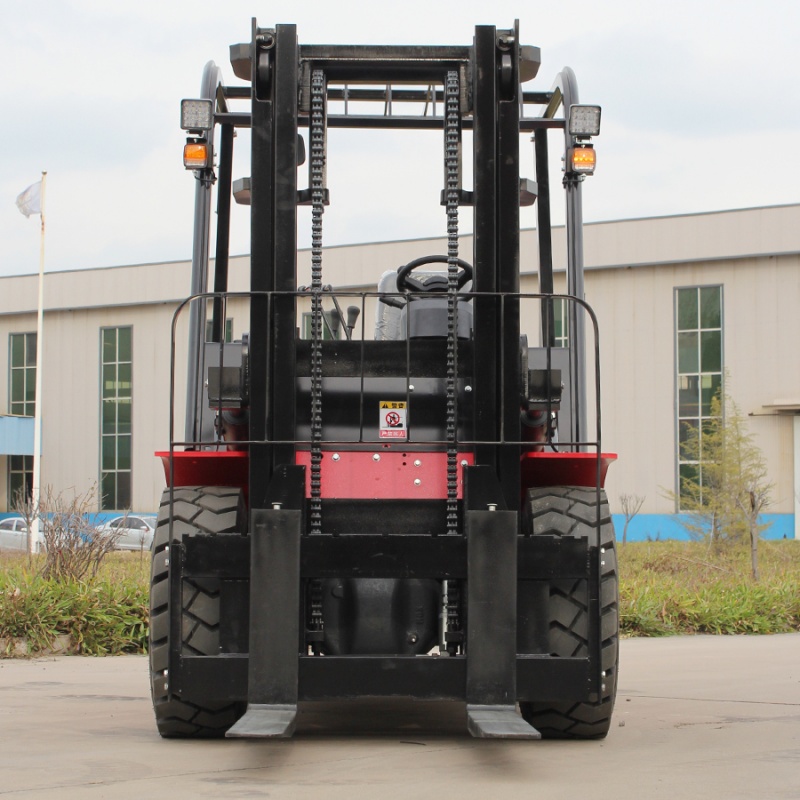

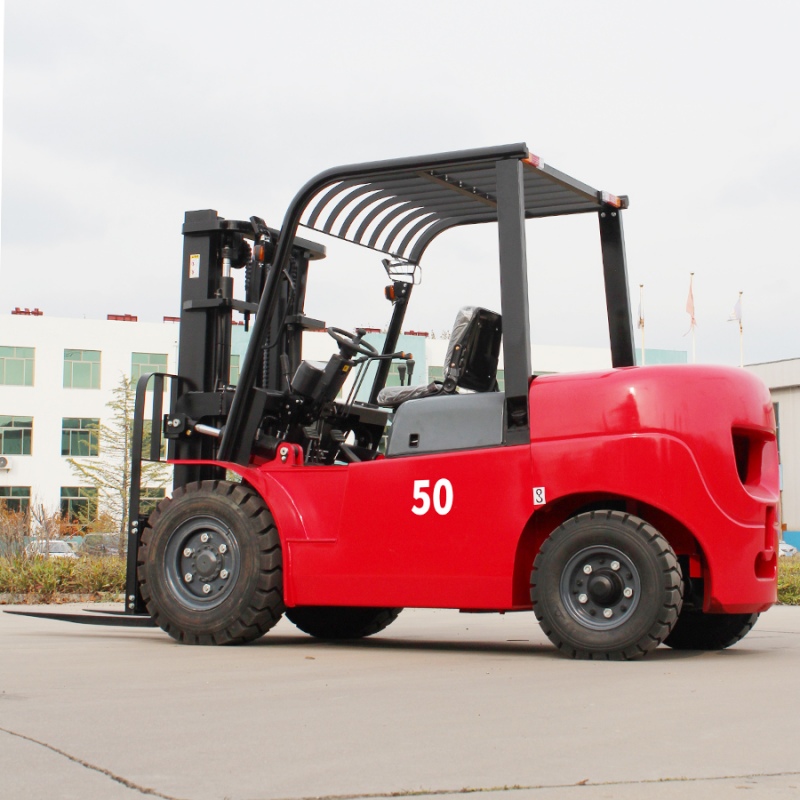

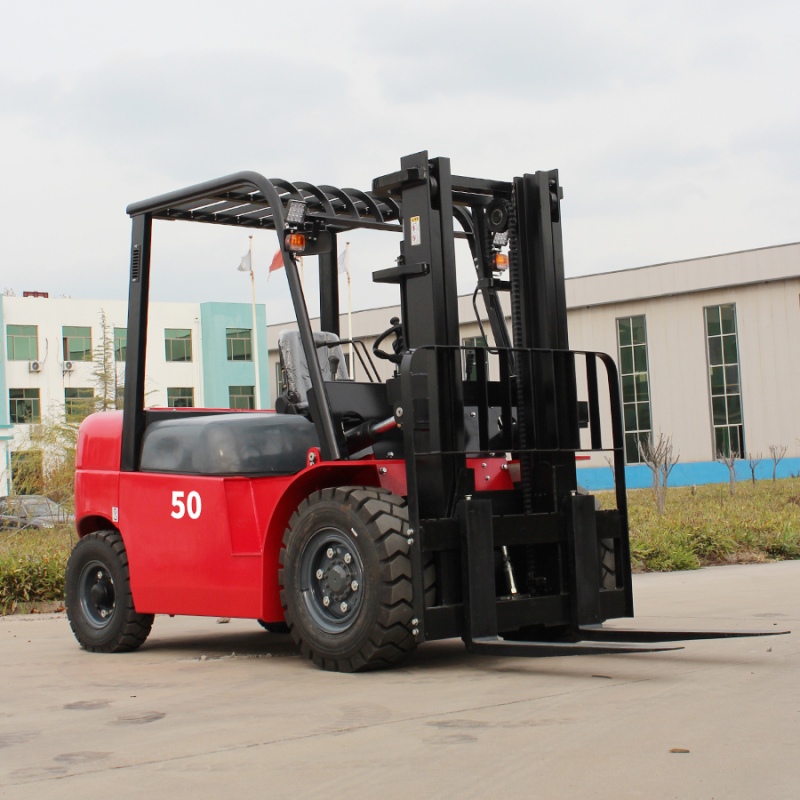

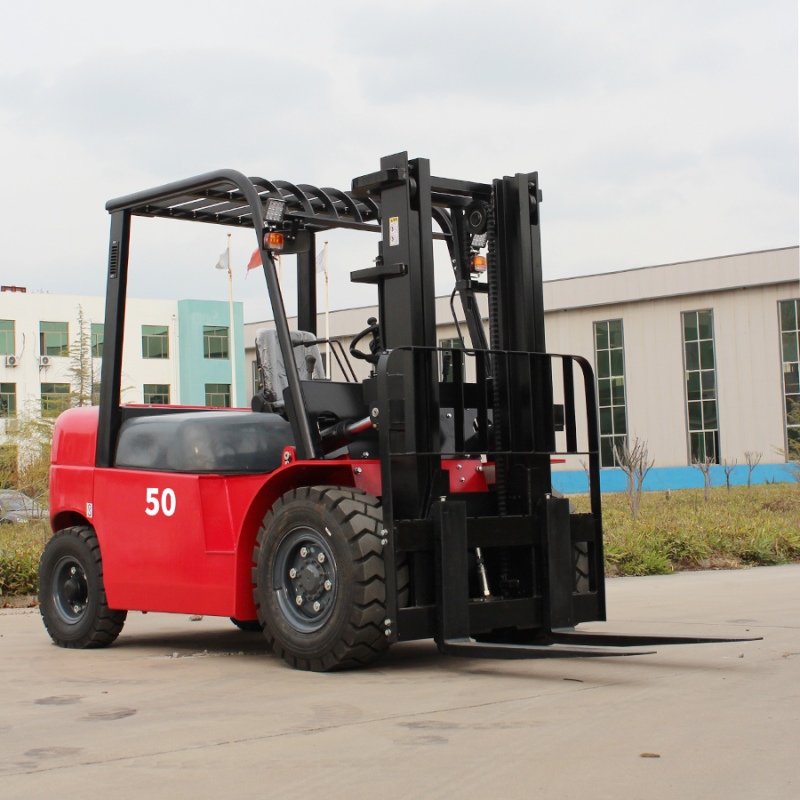

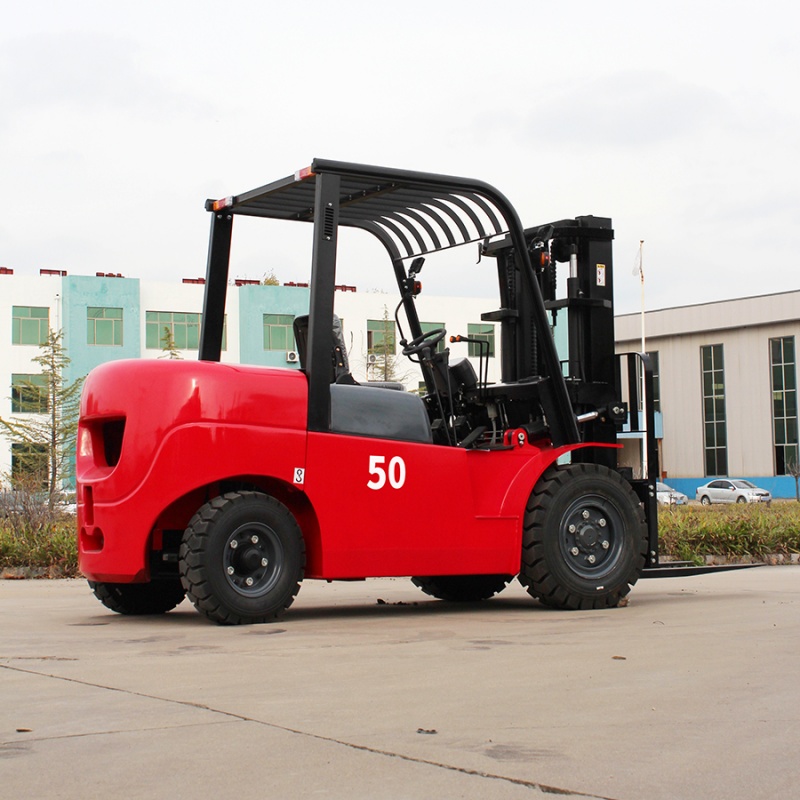

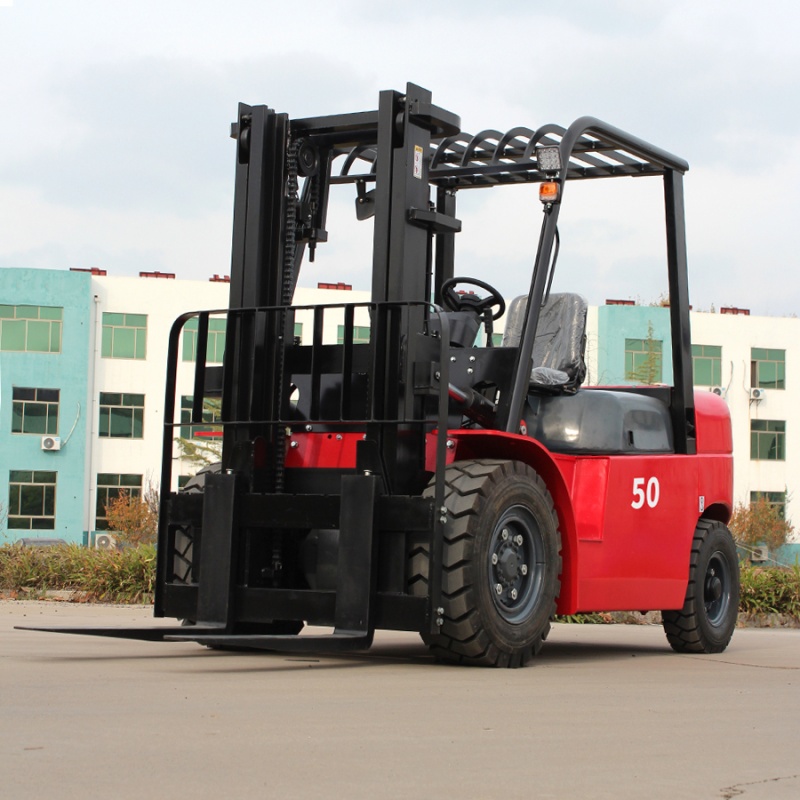

Product Display
Customer Visit
1.We warmly welcome. In order to provide good reception service, before you come to China, please inform us of your arrival time in advance, including the date and name of your arrival at the airport or railway station, 1) how many people will come and how long will you stay in China 2) your business and travel schedule in China when you arrive in China, we will have someone to pick you up and accompany you to visit our factory. Also, if time permits, we will show you some famous scenic spots in China.
2.You can also tell us what places you are interested in. We can give you some travel plans after visiting our factory. We will provide the necessary accommodation and catering services, of course, if you have any taboos, please let us know in advance.
3.We will try our best to provide high-quality service, we sincerely hope that after this trip, not only to achieve mutually beneficial cooperation, but also you will have a pleasant trip to China.
Dear friend, due to the word limit of the webpage, the product introduction is not complete. If you need more information, please contact us for the most suitable solution for you!
