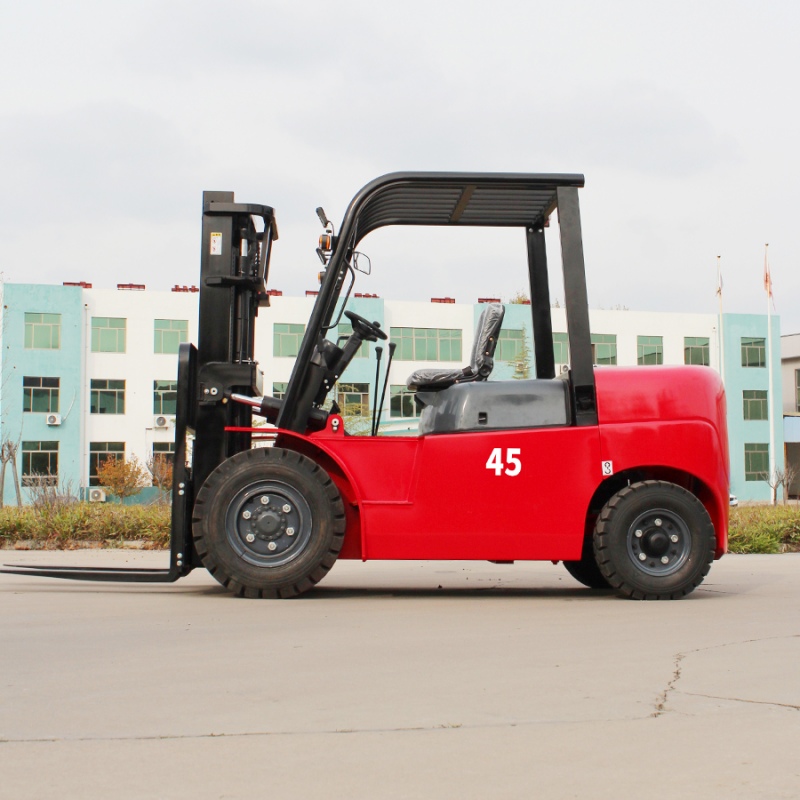

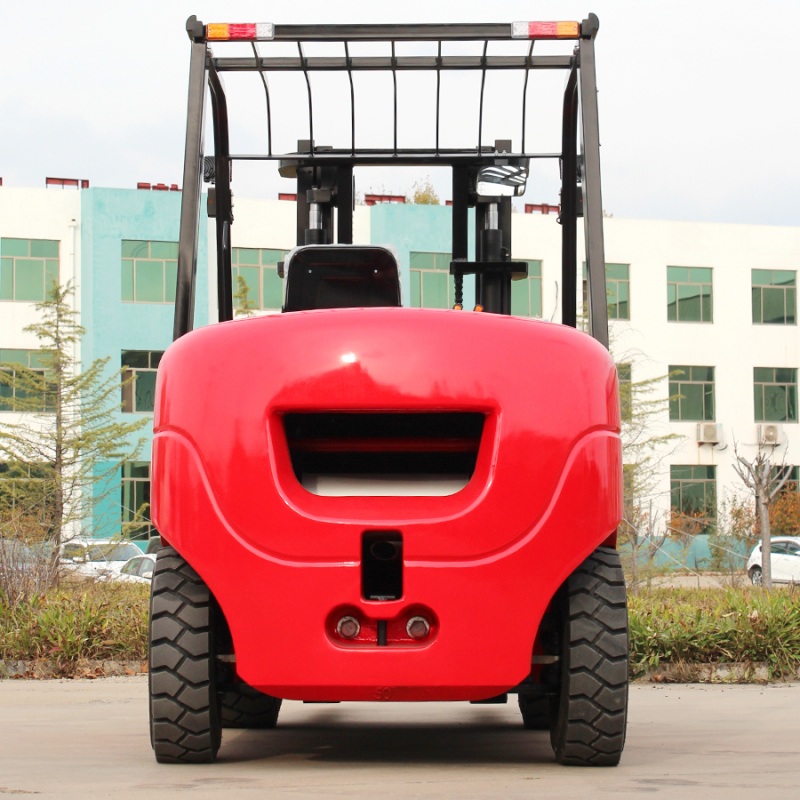

4.5 ton Diesel Forklift
High security
1. The boarding pedal adopts a fully anti-skid pedal to ensure the safety of forklift drivers getting on and off the forklift.
2. The connection between the steering axle and the frame is supported by shock-absorbing rubber pads, which reduces the vibration of the entire vehicle and improves comfort.
3. The OPS seat sensing function can prevent improper driving by children and autonomous driving, ensuring the safety of the driver.
Reliable power system
Equipped with a well-known gearbox specially developed and produced for this type of car. This product has been validated in the market for decades and is a well-known and reliable transmission system in the industry, greatly reducing the failure rate of the entire vehicle. At the same time, multiple power system auxiliary equipment effectively ensure the reliability of the system's operation.
Product Introduction
Optional configuration
1. Engine options: well-known brands, supporting Chinese and European and American emission standards
3. Optional side shifter and fork locator.
2. Support customization of door frames ranging from 3 to 7.5 meters.
4. Provide solid and inflatable tires.
Our advantages
1. EACHAN GROUP (SDYC) has developed multiple forklift product lines, including 2-10 ton fuel balance weight forklifts, 2-5 ton off-road forklifts, and 0.75-5 ton electric balance weight forklifts.
2. All products comply with national and EU emission standards.
3. Support customization, with multiple colors to choose from.
4. Our forklift's gearbox, gear pump, multi way valve, drive axle, steering axle, oil pipe joint, battery, battery box, engine, oil cylinder, tire, and instrument supporting manufacturers are all leading in the domestic industry.
5. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
6. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
parameter
Model | YC45-K | |||
Power type | diesel | |||
Rated capacity | kg | 4500 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 150 | ||
Fork size | LxWxT | mm | 1070x150x50 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 560 | ||
Rear overhang | mm | 580 | ||
Min.ground clearance(Bottom of mast) | mm | 175 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 3240 | |
Overall width | mm | 1480 | ||
Mast lowered height | mm | 2275 | ||
Mast extended height (with backrest) | mm | 4310 | ||
Overhead guard height | mm | 2350 | ||
Tuming radius(outside) | mm | 3050 | ||
Speed | Travel(Unladen) | km/h | 19 | |
Lifting(Laden) | mm/sec | 420 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 24(20) | ||
Max.Gradeability(Laden) | % | 20 | ||
Tyre | Front | mm | 8.25-15-14PR | |
Rear | mm | 700-12-14PR | ||
Tread | Front | mm | 1180 | |
Rear | mm | 1190 | ||
Wheelbase | mm | 2100 | ||
Self weight（oily water） | kg | 6490 | ||
Weight Distribution | Laden | Front Axle | kg | 9600 |
Rear Axle | kg | 1390 | ||
Unladen | Front Axle | kg | 2830 | |
Rear Axle | kg | 3600 | ||
Rattan | Voltage/Capacity | V/Ah | ||
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 48/2300 | ||
Rated torque/r.p.m. | N-m | |||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | |||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 90 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

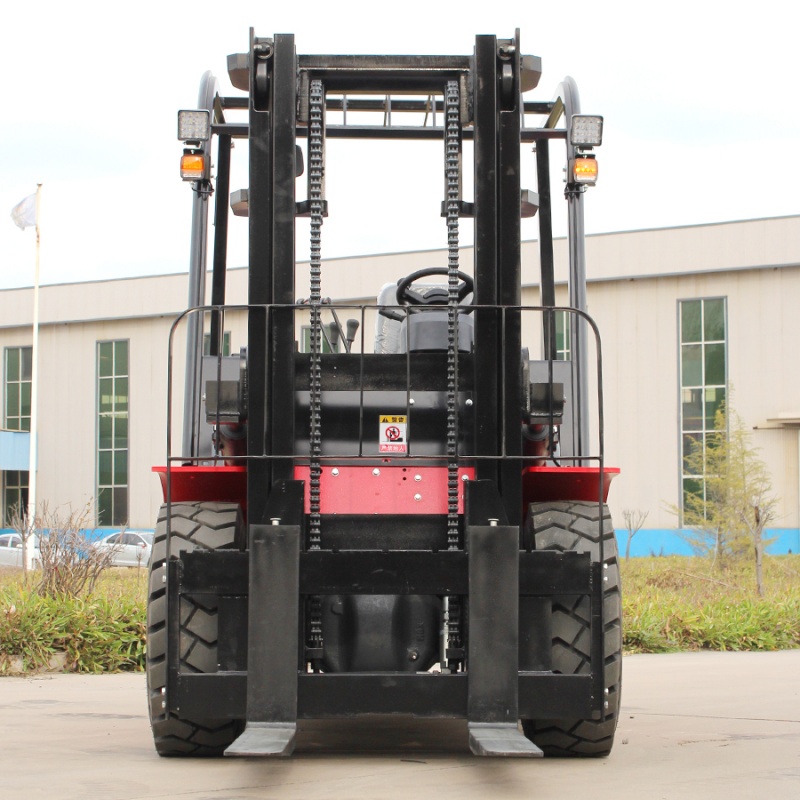

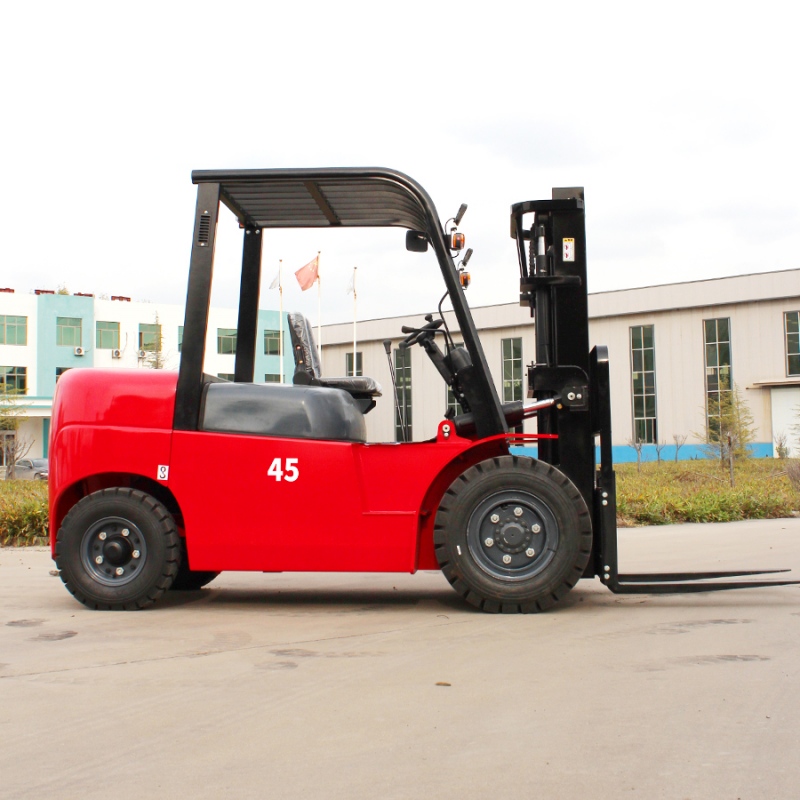

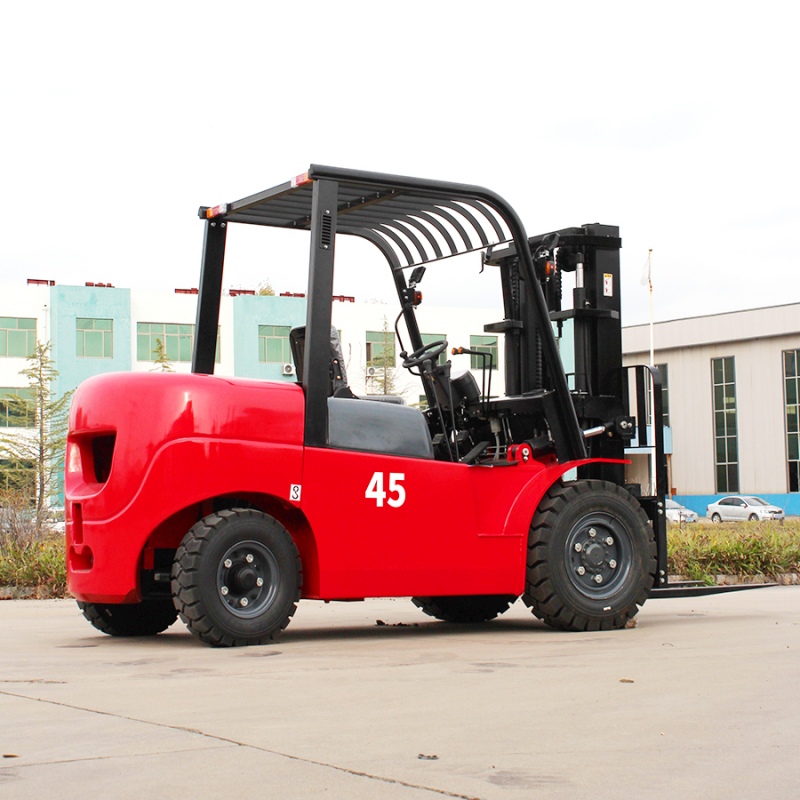

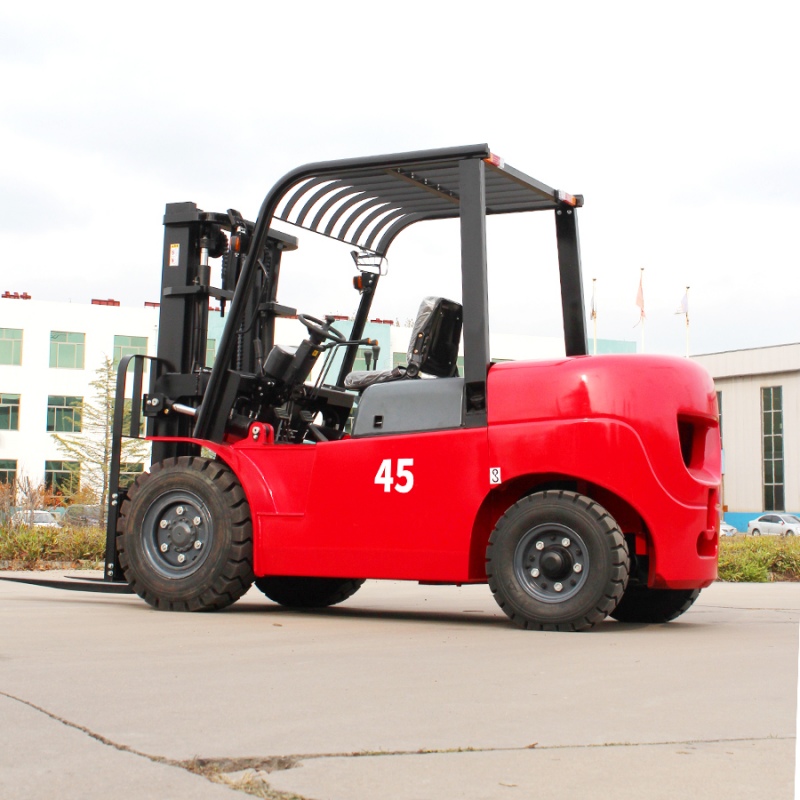

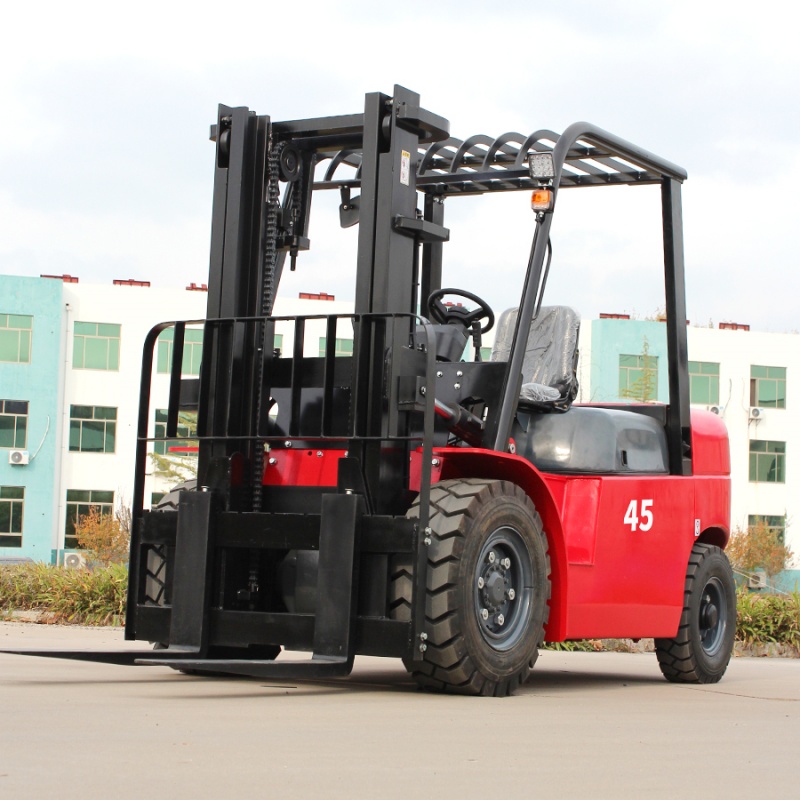

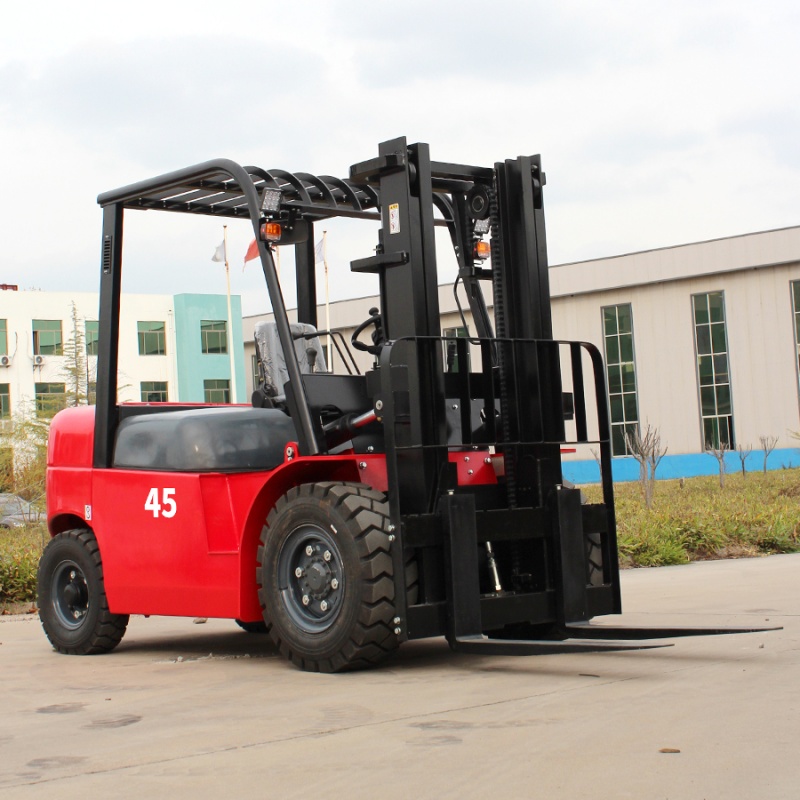

Product images

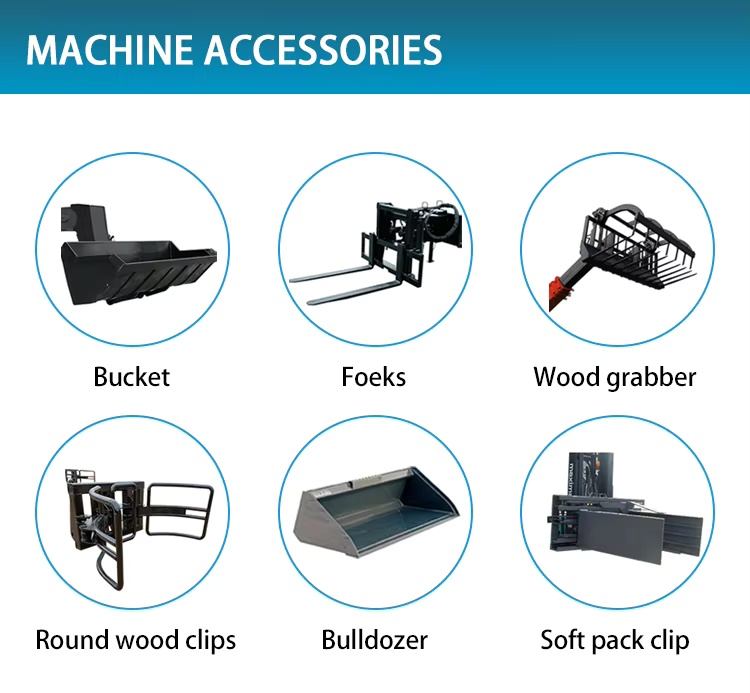

Forklift accessories
Who We Are
EACHAN Group (SDYC) stands as one of China's premier forklift manufacturers. Our products have earned prestigious certifications, including CE certification, compliance with European V-class and American EPA4 emission standards, and are exported to over 40 countries worldwide, earning us an outstanding reputation in the industry.With more than a decade of experience in manufacturing and exporting construction machinery, we have developed a comprehensive range of forklift product series. These include 2-10 ton fuel-powered balanced forklifts, 2-5 ton off-road forklifts, and 0.75-5 ton electric balanced forklifts. Equipped with cutting-edge technology, we ensure meticulous production of every machine, while providing thoughtful service at every stage.We strictly adhere to all process requirements, making it convenient for global buyers to purchase our products and ensuring a comfortable user experience. Our mission is clear: to deliver serious service, high-quality delivery, and ultimate customer satisfaction.
Dear friend, due to the word limit on the webpage, the product introduction is incomplete. If you need more information, please contact us to find the most suitable solution for you!
