High end 5 ton diesel forklift
Product selling points:
1. The smooth line design gives the forklift a dynamic appearance, and the whole machine adopts a brand new appearance design, which has successfully applied for patent protection.
2. The core components such as gearbox and drive axle are selected from imported high-quality components, significantly reducing the failure rate and ensuring excellent product reliability.
3. Equipped with a cast steering axle, the structure is compact and lightweight, with minimal deformation after loading, and excellent dust and water resistance, effectively improving product life and reliability.
4. Adopting high-strength and aging resistant high-quality air filters can better adapt to complex and harsh working environments, ensuring long-term stable operation of the equipment.
5. The design of the H-shaped steel portal frame is optimized by increasing the cross-sectional arc, and the overall structure is firm and reliable, providing a solid guarantee for high-intensity operations.
Product Introduction
1. The smooth line design gives the forklift a dynamic appearance, and the whole machine adopts a brand new appearance design, which has successfully applied for patent protection.
2. The core components such as gearbox and drive axle are selected from imported high-quality components, significantly reducing the failure rate and ensuring excellent product reliability.
3. Equipped with a cast steering axle, the structure is compact and lightweight, with minimal deformation after loading, and excellent dust and water resistance, effectively improving product life and reliability.
4. Adopting high-strength and aging resistant high-quality air filters can better adapt to complex and harsh working environments, ensuring long-term stable operation of the equipment.
5. The design of the H-shaped steel portal frame is optimized by increasing the cross-sectional arc, and the overall structure is firm and reliable, providing a solid guarantee for high-intensity operations.
Product parameters
Model | YC50-K | |||
Power type | diesel | |||
Rated capacity | kg | 5000 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 150 | ||
Fork size | LxWxT | mm | 1070x150x50 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 560 | ||
Rear overhang | mm | 580 | ||
Min.ground clearance(Bottom of mast) | mm | 175 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 3240 | |
Overall width | mm | 1480 | ||
Mast lowered height | mm | 2275 | ||
Mast extended height (with backrest) | mm | 4310 | ||
Overhead guard height | mm | 2350 | ||
Tuming radius(outside) | mm | 3050 | ||
Speed | Travel(Unladen) | km/h | 18.5 | |
Lifting(Laden) | mm/sec | 400 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 24(20) | ||
Max.Gradeability(Laden) | % | 20 | ||
Tyre | Front | mm | 300-15-18PR | |
Rear | mm | 700-12-14PR | ||
Tread | Front | mm | 1180 | |
Rear | mm | 1190 | ||
Wheelbase | mm | 2100 | ||
Self weight（oily water） | kg | 6660 | ||
Weight Distribution | Laden | Front Axle | kg | 9680 |
Rear Axle | kg | 1480 | ||
Unladen | Front Axle | kg | 2865 | |
Rear Axle | kg | 3795 | ||
Rattan | Voltage/Capacity | V/Ah | ||
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 48/2300 | ||
Rated torque/r.p.m. | N-m | |||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | |||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 90 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

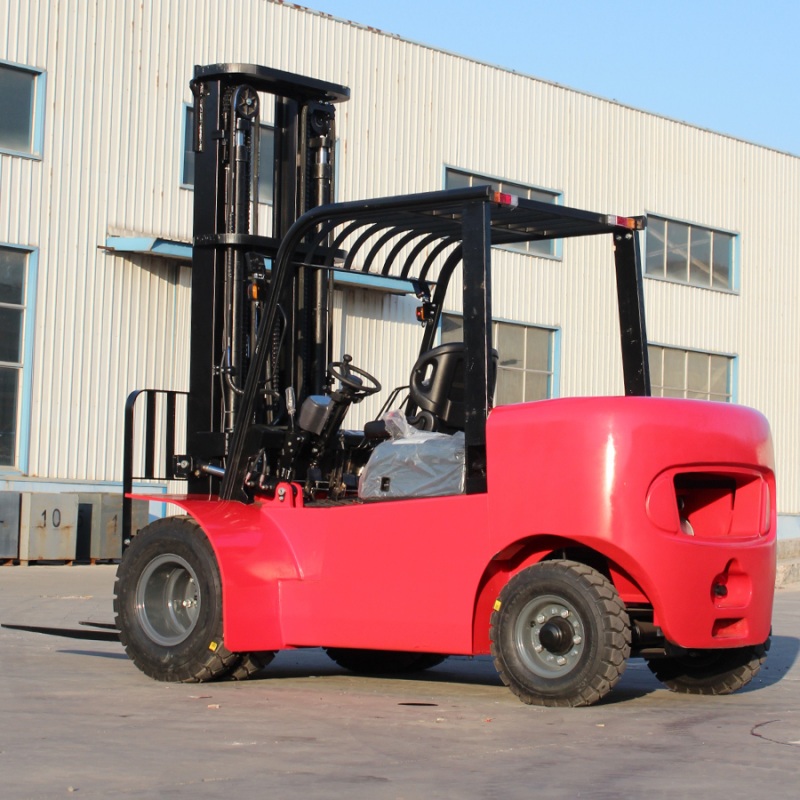

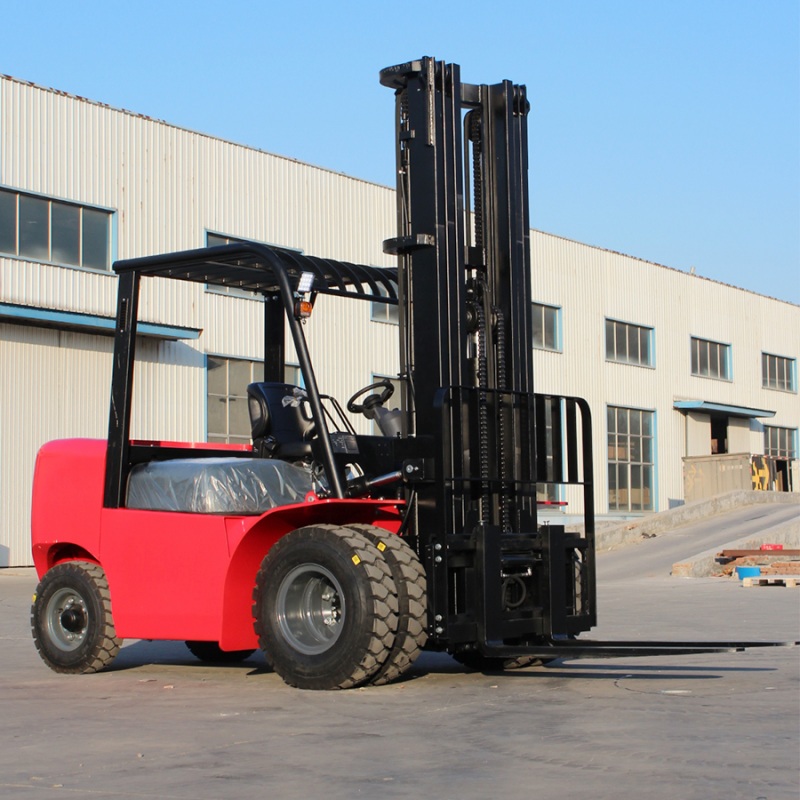

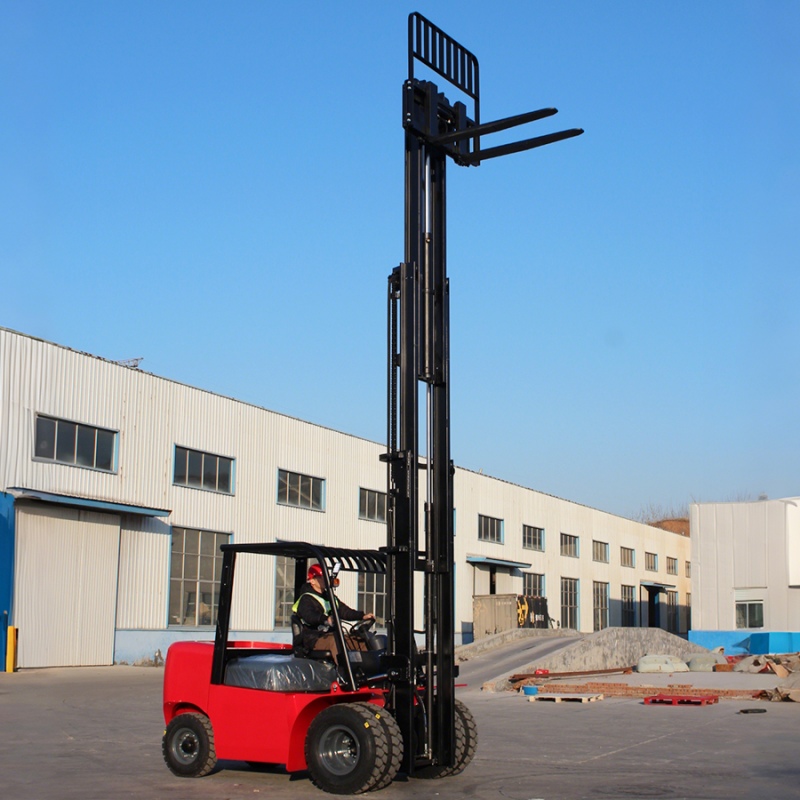

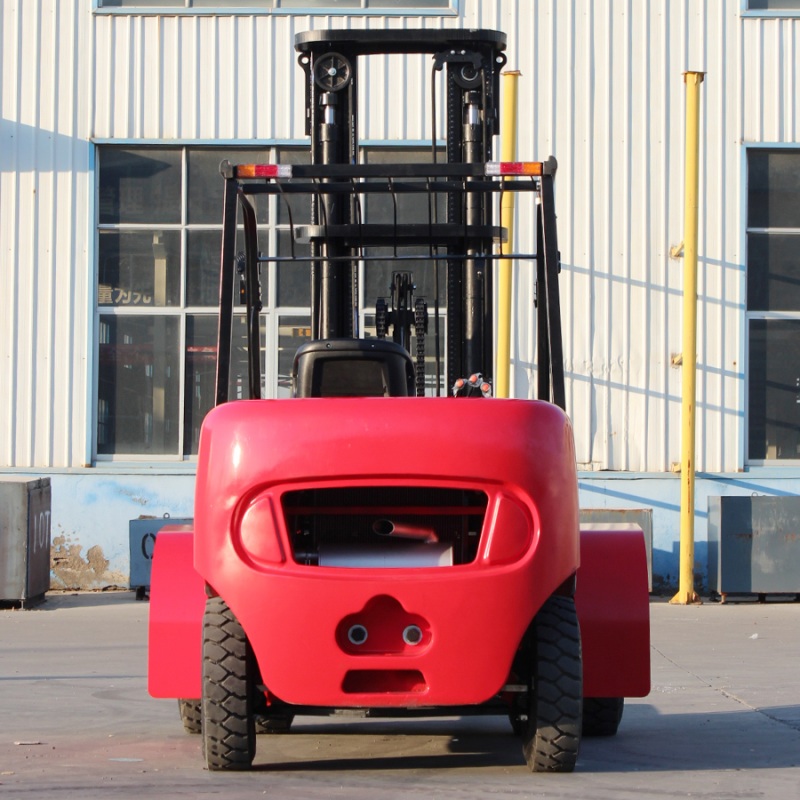

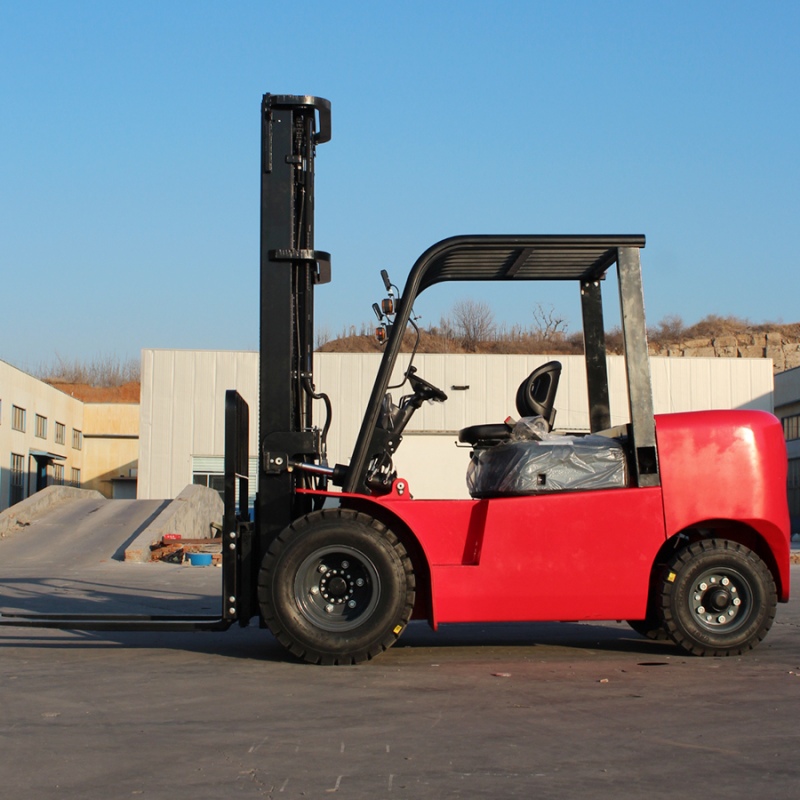

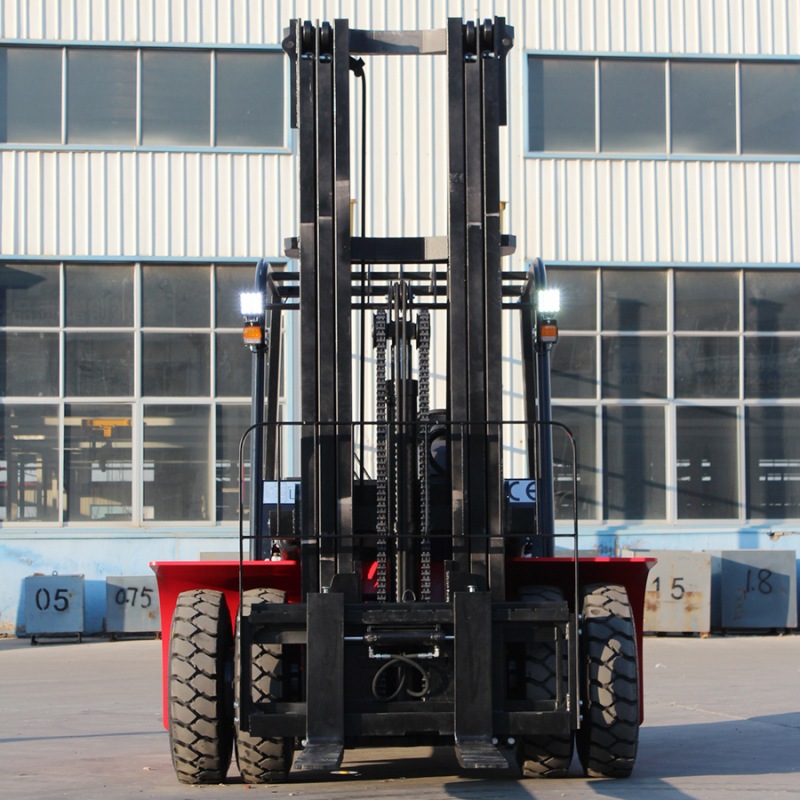

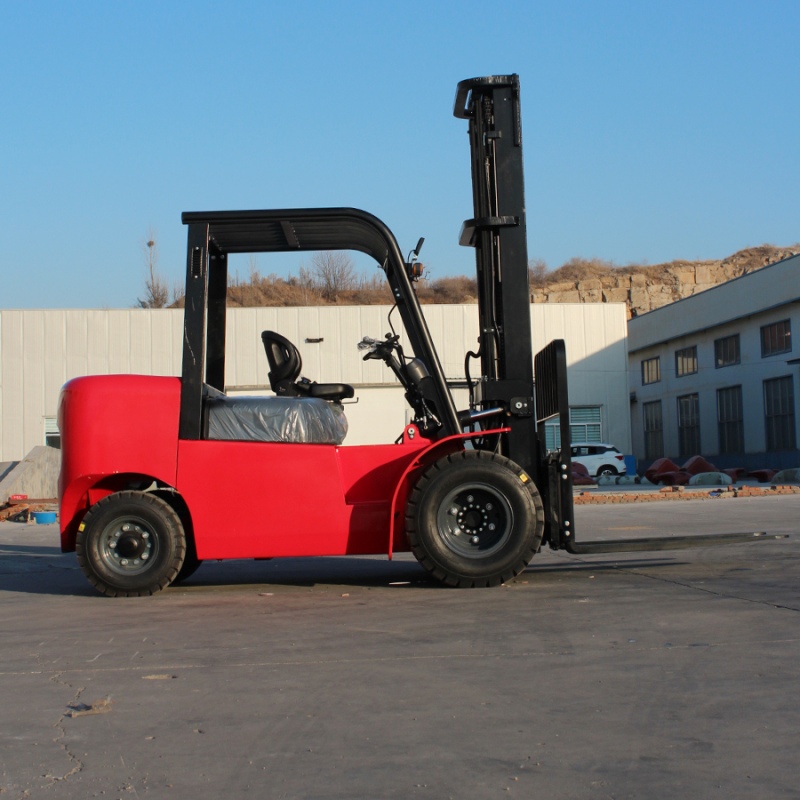

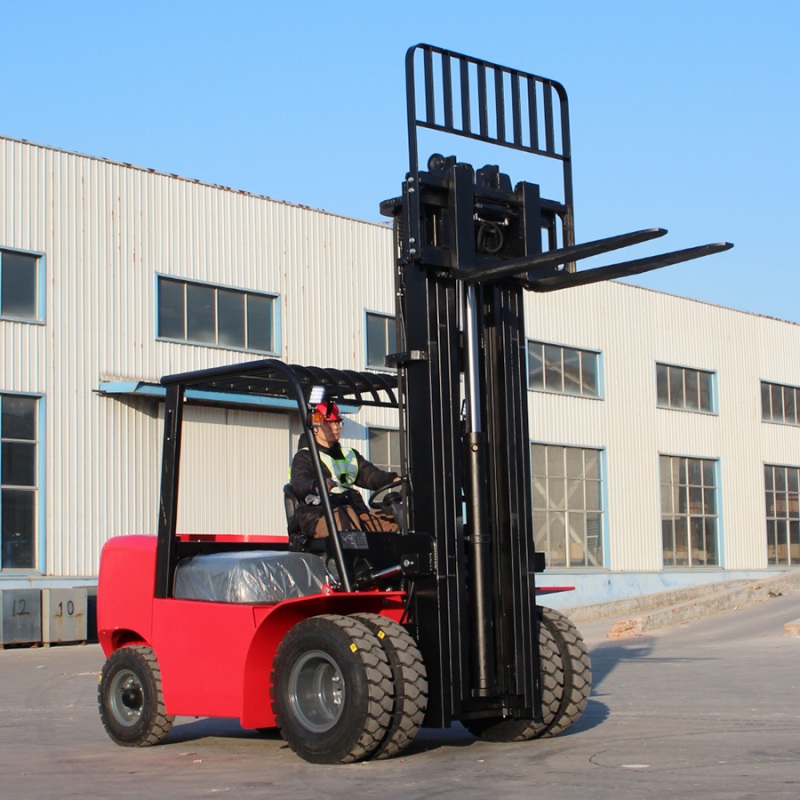

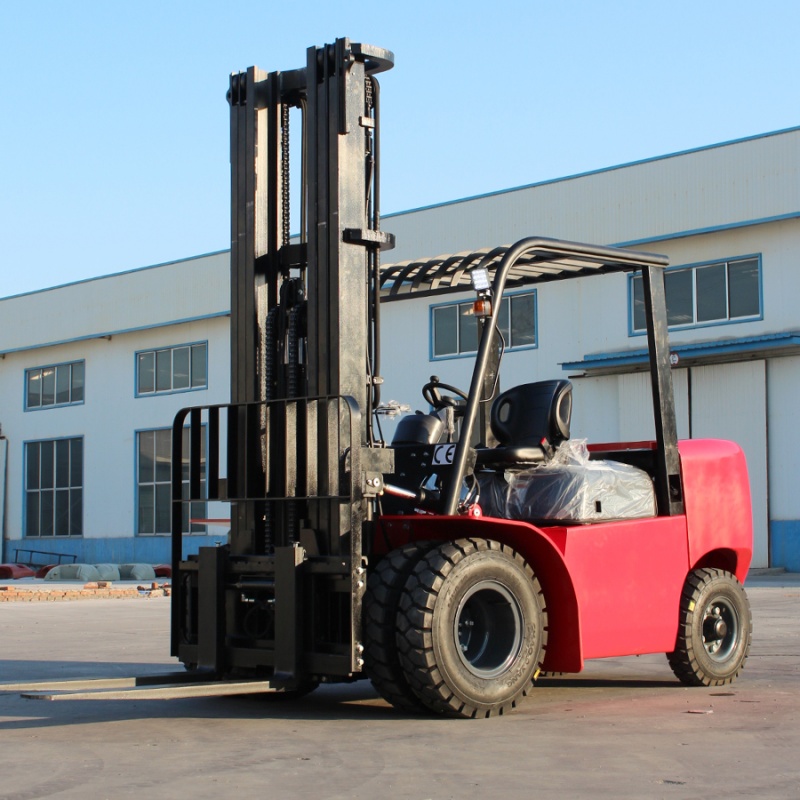

Product real-life picture
Optional configuration
1. Engine options: well-known brands, supporting Chinese and European and American emission standards

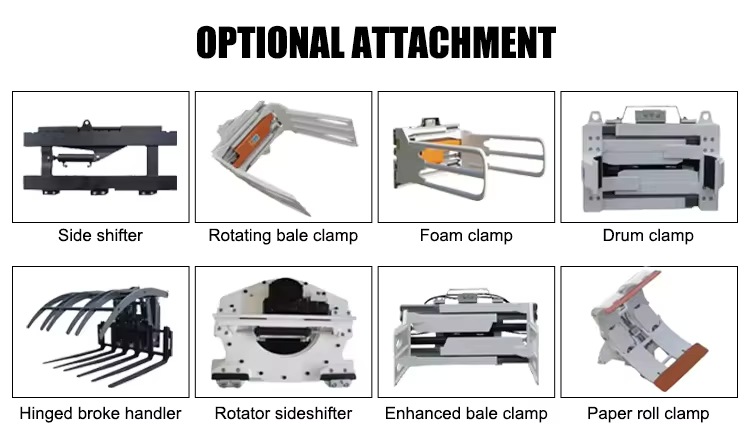

3. Optional side shifter and fork locator.
2. Support customization of door frames ranging from 3 to 7.5 meters.
4. Provide solid and inflatable tires.
All accessories are available here
