18 ton four-wheel drive wheel excavator
Product advantages:
1) Our excavators comply with EU certification standards and are known for their high cost-effectiveness.
2) This excavator is equipped with a continuously variable automatic transmission, four-wheel drive, and four-wheel hydraulic oil brakes, suitable for all road conditions
3) The reinforced front shovel with a balanced oil cylinder and rear support leg design enhances the stability of the excavator,
4) This wheeled excavator is equipped with an original imported rotary motor Fast rotation speed and stable rotation brake
5) The original fully imported hydraulic system adopts dual pump merging technology, with fast transition speed
6) Wheel side deceleration wet ZF style front and rear axles, four layer winding oil pipes, and the same model as Doosan comes standard with a buffer cylinder
7) Our factory can provide customized production to meet special construction and bidding needs
Product Introduction
The YC-180 wheeled excavator provides a working weight of 18 tons. It is an all terrain, multi-functional spider excavator that can easily handle both plateau and plain areas. It is equipped with a wheel drive chassis and has strong off-road capabilities, allowing it to reach places that are difficult for other mechanical equipment to reach, such as valleys, swamps, plateaus, and cold regions. This device can be widely used in various engineering operation scenarios such as excavation, lifting, crushing, drilling, and pile planting.
Product parameters
Basic parameters | |||
Brand | SDYC | Model | YC-180 |
Engine type | customization | Engine power | 153kw/2200rpm |
Machine weight | 17000kg | Dipper capacity | 0.75m³ |
Dimensions | |||
Total length in transit | 7840mm | Lever length | 4800mm |
Total height During transportation | 3240mm | Pole length | 3135mm |
Machine width | 2550mm | Height of bulldozer plate | 590mm |
Turntable width | 2450mm | Width of bulldozer blade | 2500mm |
Wheel base | 2800mm | Height of bulldozer plate lifting | 450mm |
Tread | 1900mm | Height of bulldozer plate support | 110mm |
Tail turning radius | 2400mm | Leg clearance from the ground | 380mm |
Ground clearance of counterweight | 1350mm | Minimum ground clearance | 360mm |
Hydraulic oil tank capacity | 180L | Fuel tank capacity | 220L |
Scope of operation and digging power | |||
Maximum digging radius | 8350mm | Maximum mining height | 8100mm |
Maximum mining depth | 5525mm | Maximum dump clearance | 5800mm |
Hydraulic system pressure | 32MPa | Hydraulic system flow | 2*160L/min |
Pit digger force | 92.5kn | Derrick digging force | 60kn |
Swiveling speed | 13-14r/min | Maximum highway speed | 28-35km/h |
Grade of ascent | ≥60% | ||

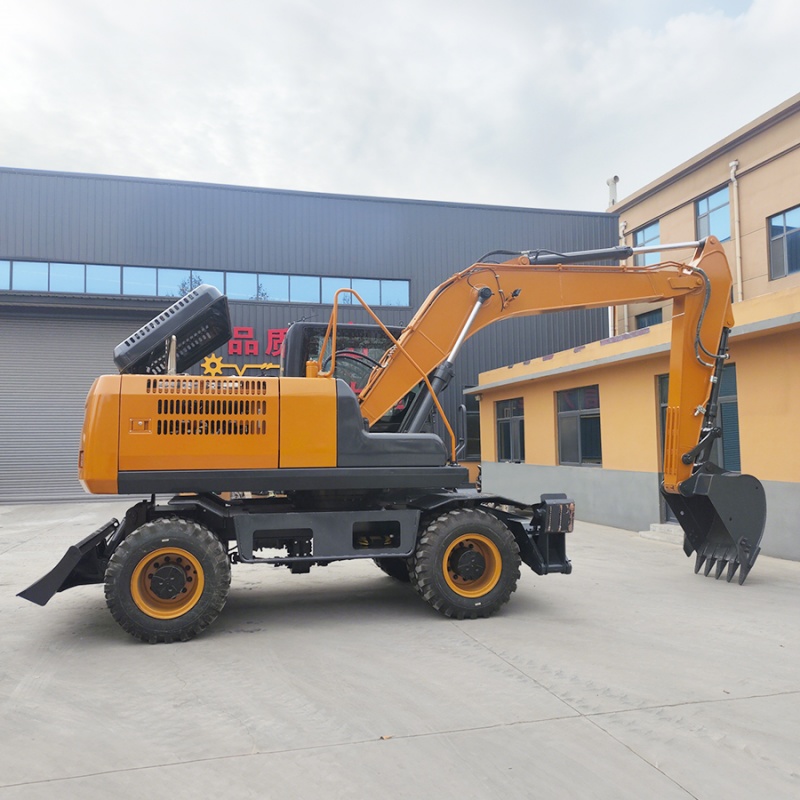

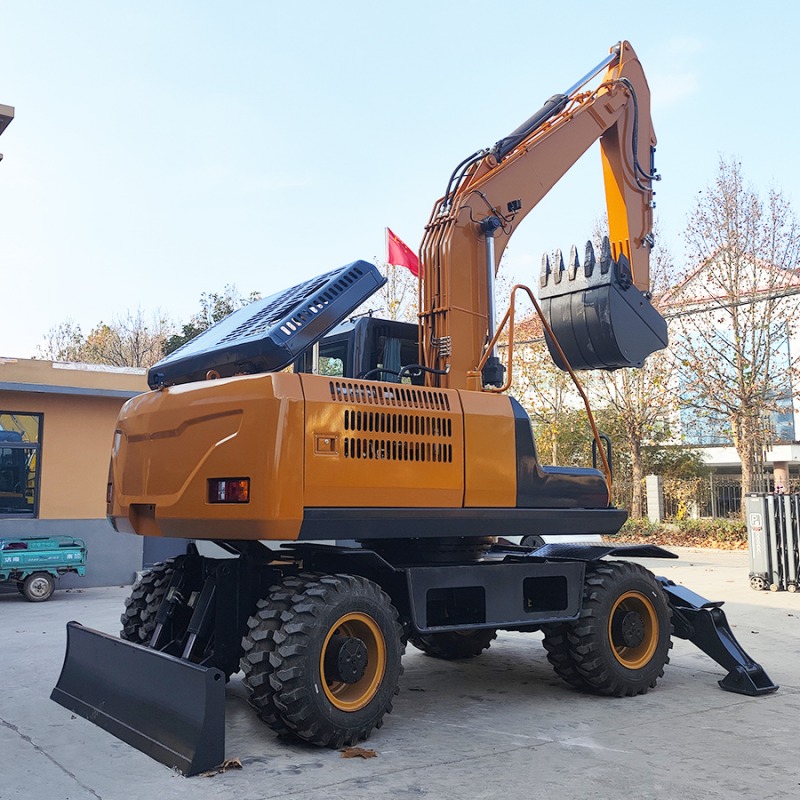

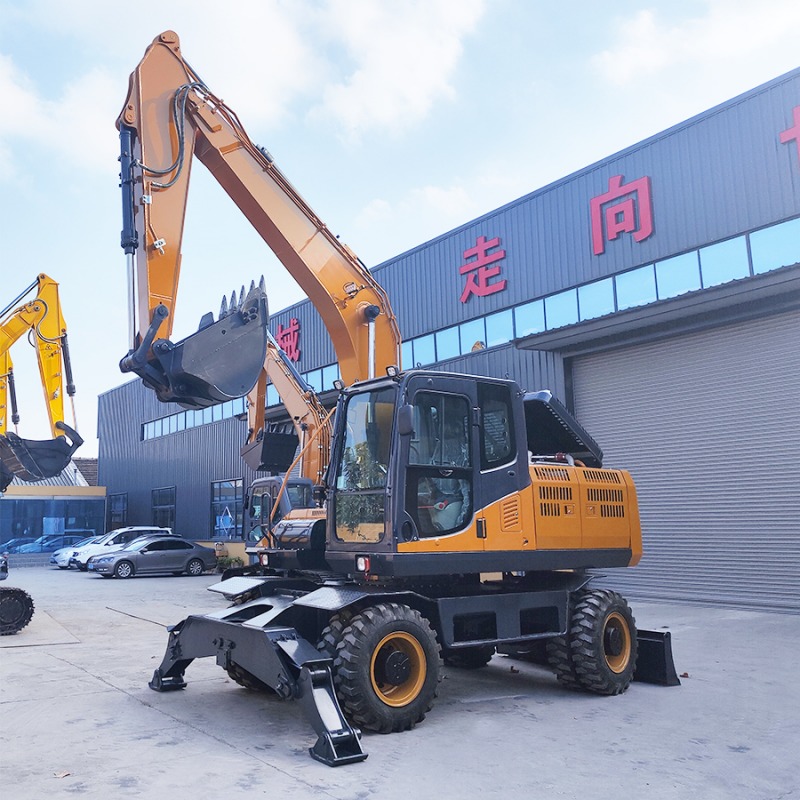

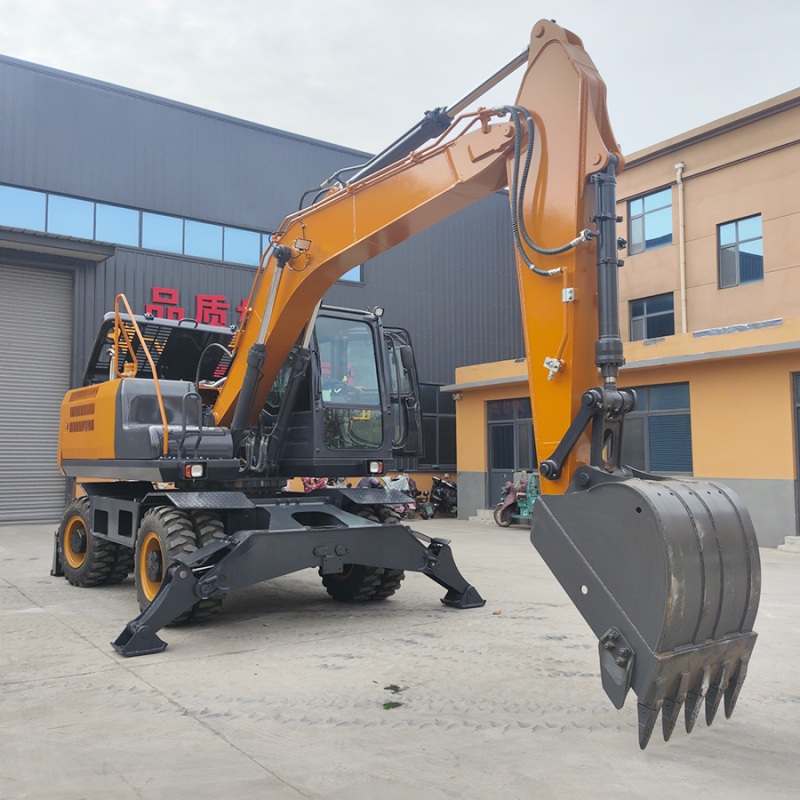

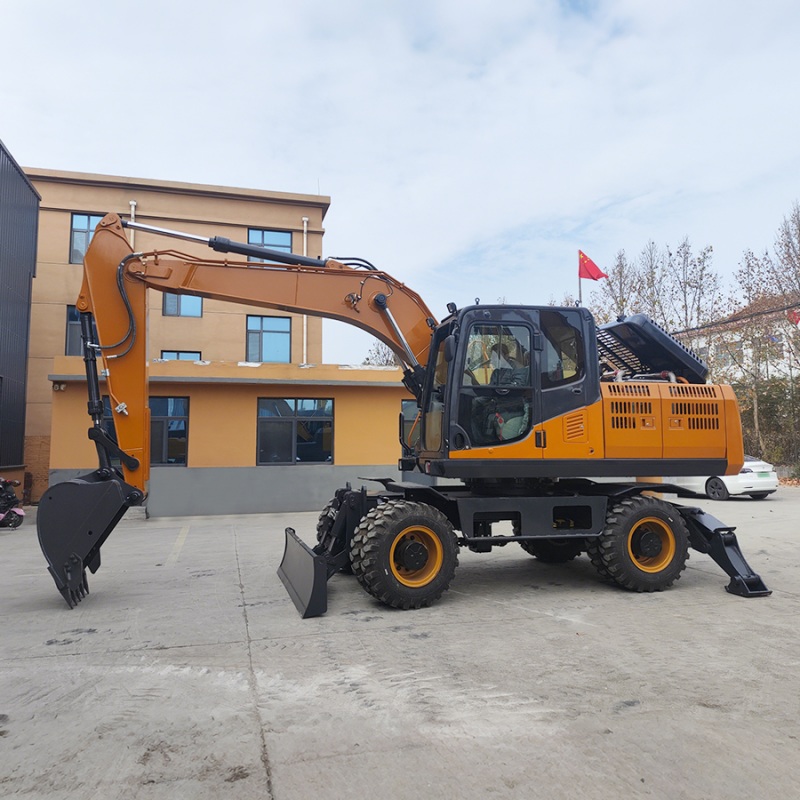

Product Display

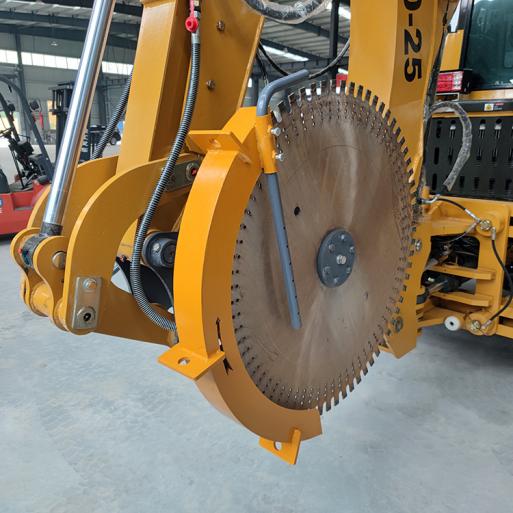

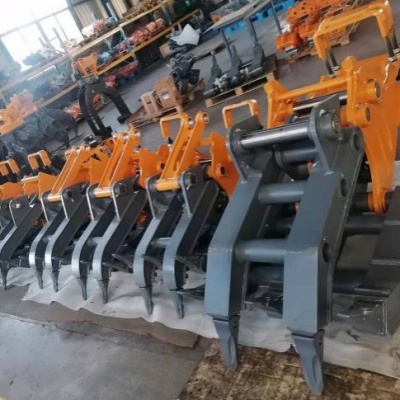

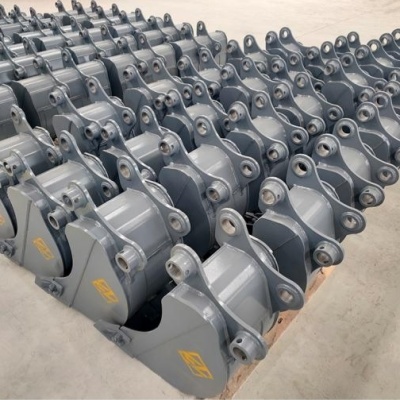

Optional accessories
Various special supporting accessories can be installed, which are sturdy and durable. Welcome to contact us!

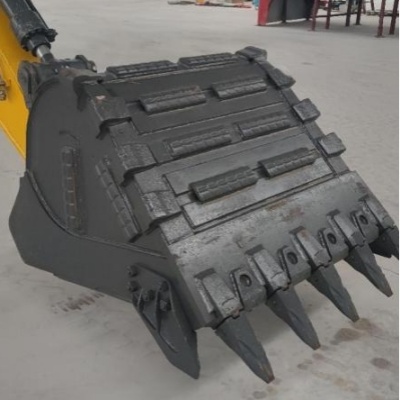

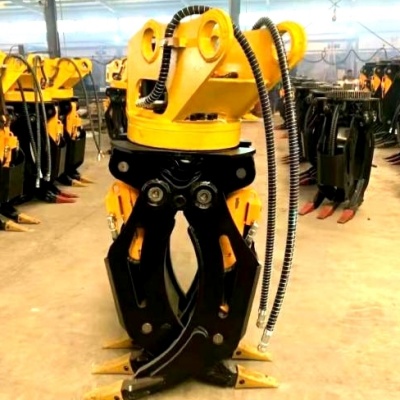

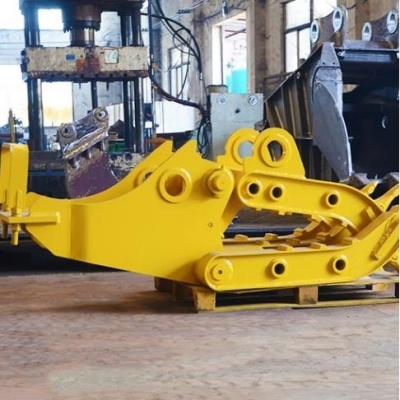

The auxiliary equipment includes: 1.0m ³ rock bucket, φ 140 breaking hammer, rotating wooden gripper, 400 small digging bucket, 1.0m ³ net fighting, 1500 inclined bucket, 15 meter long arm, mechanical gripper rotating gripper, etc.
Dear friend, due to the word limit of the webpage, the product introduction is not complete. If you need more information, please contact us for the most suitable solution for you!
