23 ton crawler excavator
Product advantages:
1) This tracked excavator is designed specifically for reinforced working conditions, with high excavation power and strong adaptability.
2) The excavator is equipped with a load sensitive system and a well-known brand engine combination, which is more energy-efficient and efficient.
3) Original imported hydraulic system The compound action is fast, making the excavator's turning brake stable.
4) Standard anti-collision beam, reinforced large and small arm design, greatly improving service life.
5) Powerful vehicle performance, excellent job stability, ensuring fast work efficiency.
6) We can provide customized production of excavators to meet special construction and bidding needs.
Product Introduction
This 23 Ton Excavator is a robust piece of machinery that has been specifically designed to make digging and excavation works more efficient and effortless. With its rugged build, advanced features, and user-friendly design, this excavator has been optimized to deliver unparalleled performance and reliability even in the toughest and most demanding construction environments.
Technical Parameter
Basic parameters | |||
Brand | SDYC | Model | YC-230 |
Engine type | customization | Engine power | 153kw/2200rpm |
Machine weight | 22500kg | Dipper capacity | 1.0-1.2m³ |
Size | |||
Total length in transit | 9600mm | Lever length | 5700mm |
Total height During transportation | 3005mm | Pole length | 2900mm |
Machine width | 2900mm | Track length | 4440mm |
Turntable width | 2710mm | Track gauge | 2400mm |
track width | 600mm | Afterservice height | 2980mm |
Tail turning radius | 2794mm | Minimum rotary width | 3560mm |
Ground clearance of counterweight | 1096mm | Minimum ground clearance | 470mm |
Hydraulic oil tank capacity | 210L | Fuel tank capacity | 360L |
Scope of operation and digging power | |||
Maximum digging radius | 9873mm | Maximum mining height | 9616mm |
Maximum mining depth | 6592mm | Maximum dump clearance | 6830mm |
Hydraulic system pressure | 32.34/34.3MPa | Hydraulic system flow | 2*212L/min |
Pit digger force | 146.4kn | Derrick digging force | 108kn |
Swiveling speed | 0-10.7r/min | Maximum highway speed | 5.9-3.2km/h |
Grade of ascent | ≥70% | ||

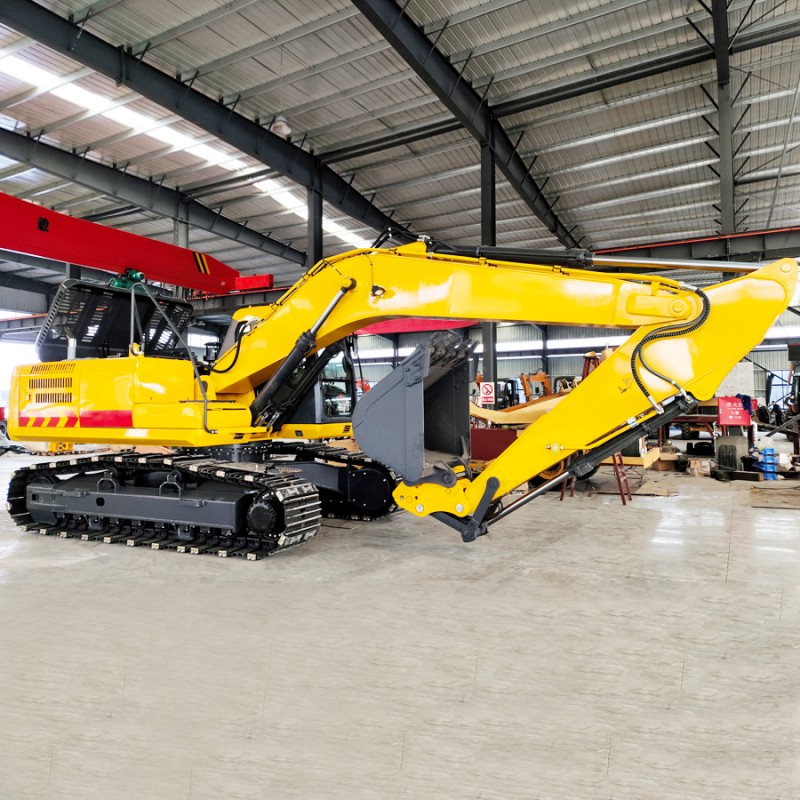

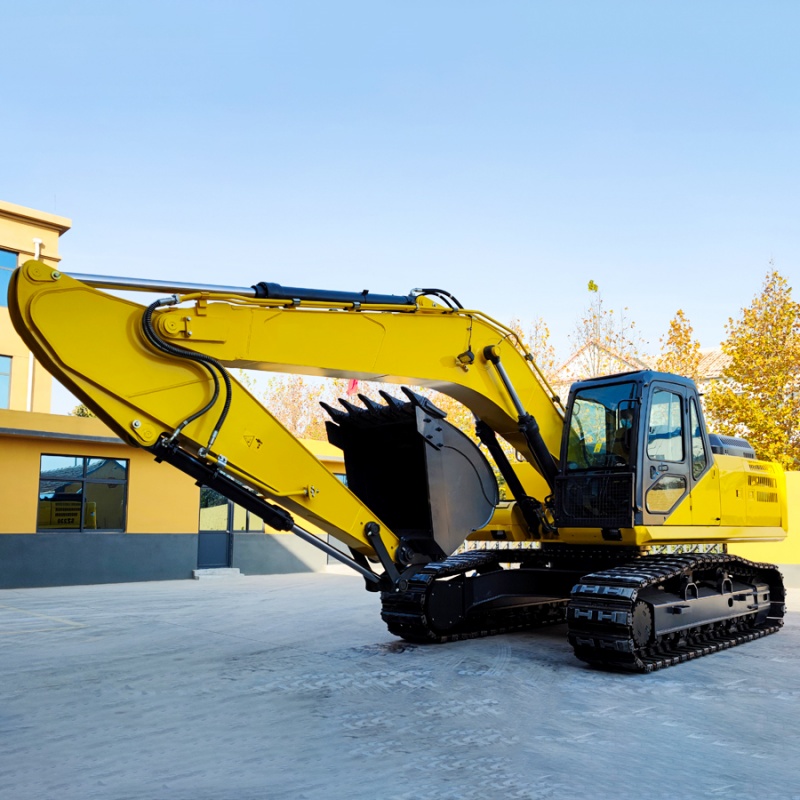

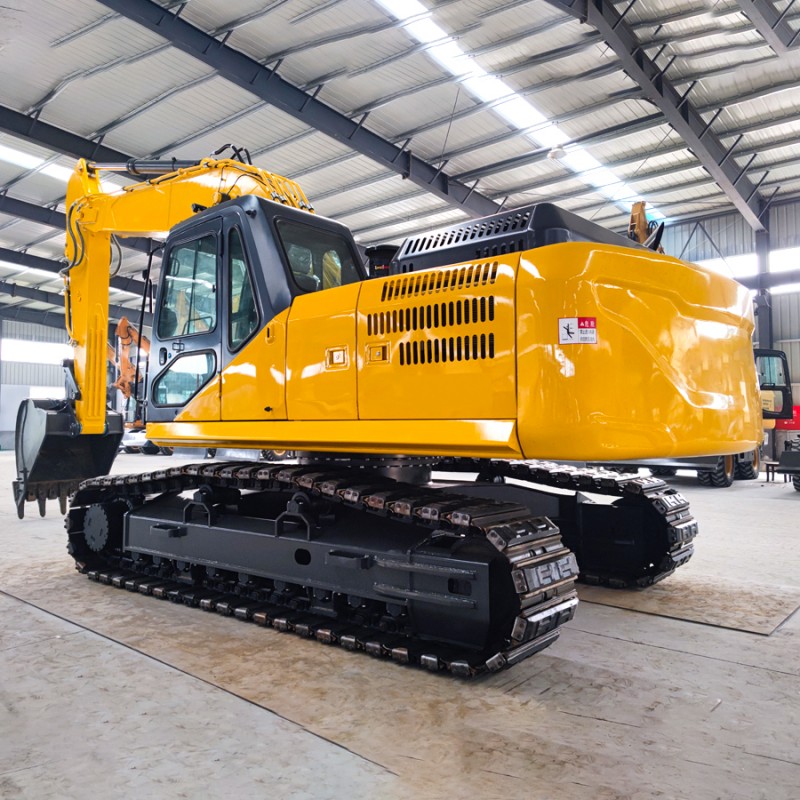

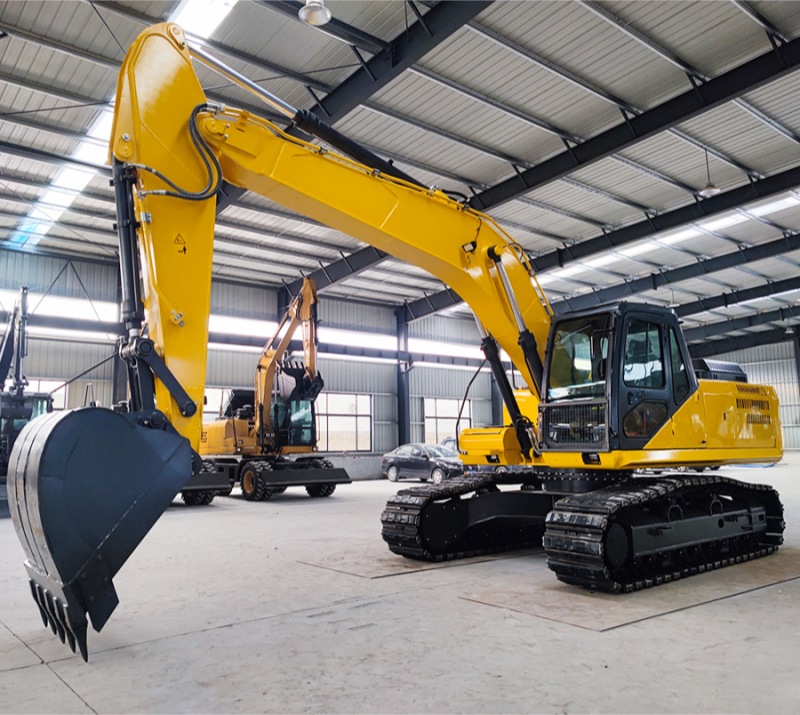

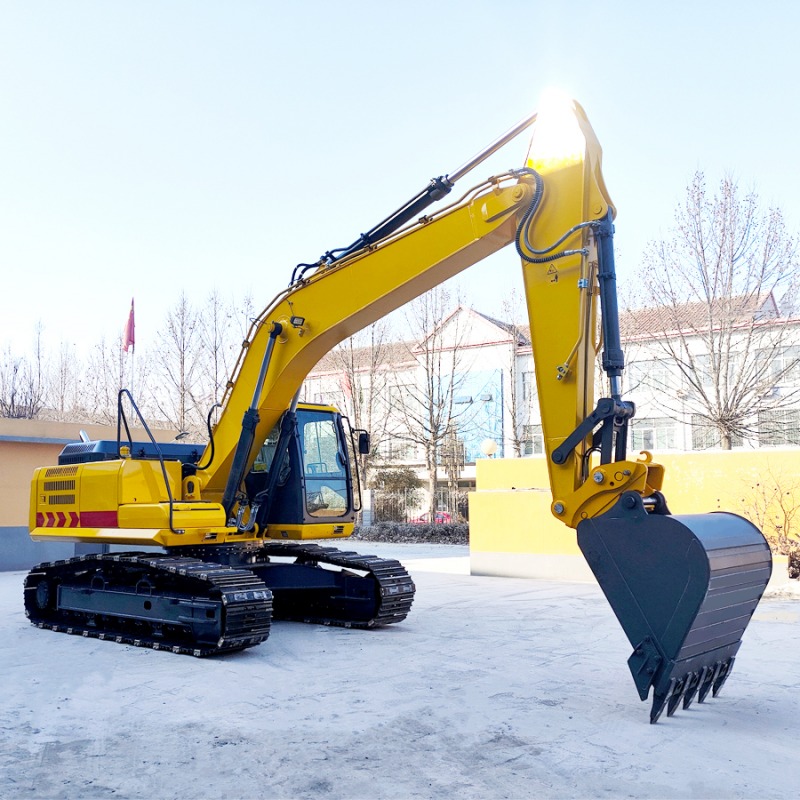

Product Display

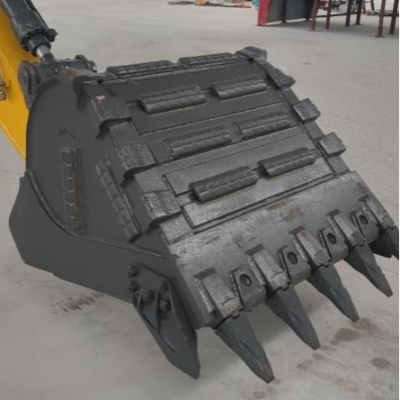

Optional accessories
Various special supporting accessories can be installed, which are sturdy and durable. Welcome to contact us!

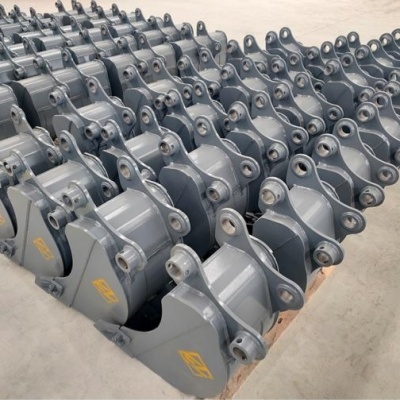

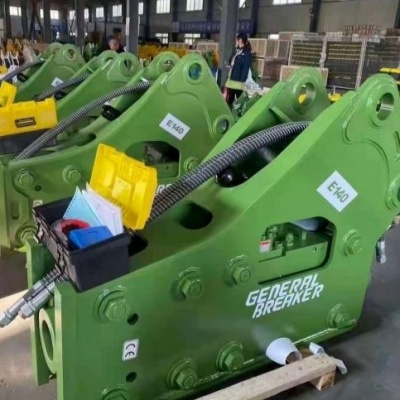

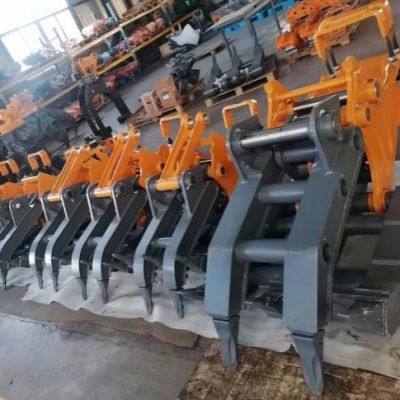

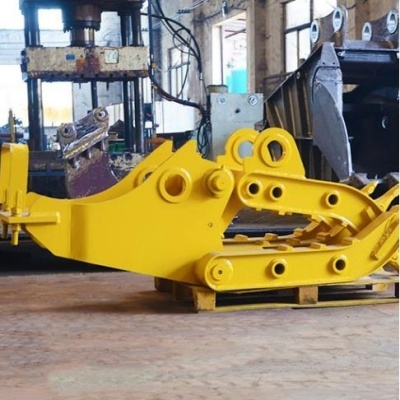

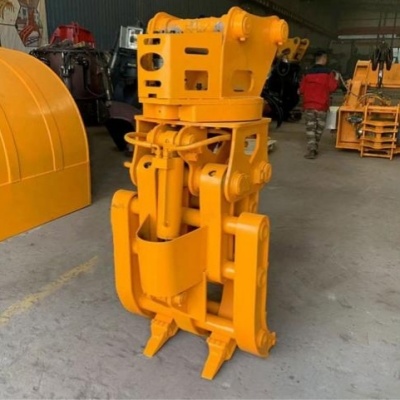

Auxiliary equipment includes: hydraulic quick change, φ 100 breaking hammer, rotating wood gripper, four petal stone gripper, asphalt cutting machine, hydraulic compactor, rotating wire rod gripper, 400 small excavator bucket, mechanical wood gripper, etc.
About Us
Choose EACHAN GROUP (SDYC) - we are committed to becoming your long-term trusted partner.
We have over ten years of experience in excavator production and export, specializing in excavators of various models ranging from 1 to 60 tons.
Our excavators perform excellently in terms of construction efficiency, production cycle, product quality, transportation, and after-sales service. With advanced technological strength, we promise to carefully manufacture every machine, strictly control all process flows, and provide convenient purchasing experience and comfortable usage experience for global customers.
We uphold the concept of "customer-centric" and provide professional and thoughtful services, high-quality product delivery, and comprehensive after-sales support. Customer satisfaction is always our mission.
