YC-32 China High Quality Bulldozer
Our advantages:
1. The SDYC32 bulldozer is equipped with Cummins engines, which are reliable in quality, provide sufficient power, have high combustion efficiency, and are easy to maintain.
2. The working device can be equipped with traction, single tooth soil loosening device, and pipeline control.
3. The shovel can be selected from straight inclined shovel, coal pushing shovel, sanitation shovel, semi U-shaped shovel, and U-shaped shovel.
4. We are a Chinese bulldozer manufacturer with over ten years of production and sales experience!
5. Due to the word limit of the webpage, our description is not comprehensive. If you need to learn more, please contact us. Thank you!
Characteristics of YC32 bulldozer

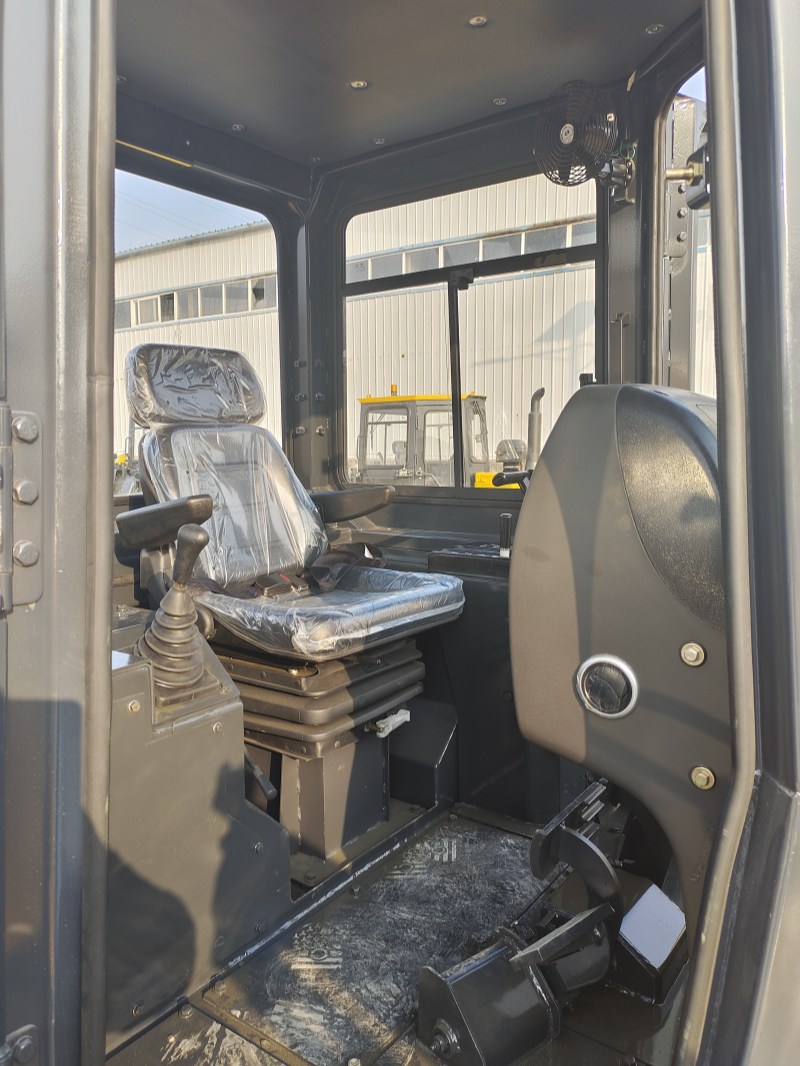

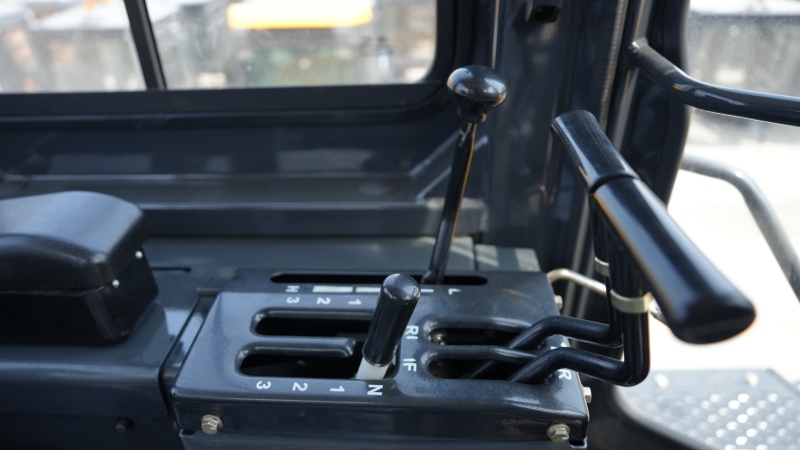

1. The new hexahedral cab has a wide interior space and good visibility, excellent shock resistance, and a good damping cabin, providing a comfortable working environment for the driver. According to ergonomics, the driver's seat and armrest can be easily adjusted up and down, forward and backward. The speed change, steering and throttle control are placed on the left side, and the flexible shaft structure is used. The working device is placed on the right side, and the servo control system is used to make the operation process more light and flexible and reduce fatigue.
2. The bulldozer is equipped with a Cummins engine, which is reliable in quality, has sufficient power, high combustion efficiency, and is easy to maintain.

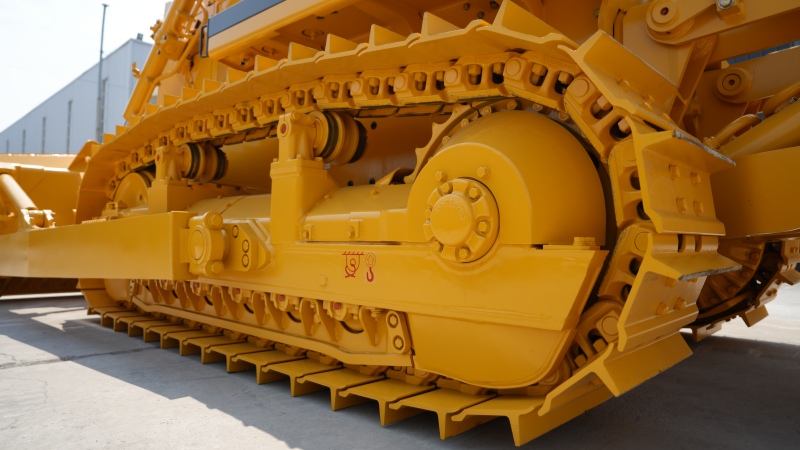

3. The chassis components are reliable and durable, using four wheels and one belt produced using Japanese Komatsu heat treatment technology. The quality is stable, sturdy and durable, and an optional oil chain greatly improves the service life of the chassis components.
4. The working device can be equipped with traction, single tooth soil loosening device, and pipeline control.
5. On the premise of fully considering the heat dissipation requirements, the front hood and side rear hood adopt a long bar grille semi sealed structure to facilitate comprehensive protection of the engine, smoother air suction, better heat dissipation effect, and significantly reduce noise.
6. The shovel can be selected from straight inclined shovel, coal pushing shovel, sanitation shovel, semi U-shaped shovel, and U-shaped shovel.
7. A shock absorber is installed between the floor and the wing panel to absorb vibrations and improve driving comfort. The bottom guard can effectively protect the bottom of the engine.
8. The final drive part adopts the Japanese version Komatsu technology for heat treatment of the two-stage straightedge structure, and the fully lubricated final drive system has the characteristics of strong load-bearing capacity, smooth transmission, and long service life.
Product Technical Parameters
| Model | YC32 |
| Length x width x height (mm) (without ripper) | 6535X4150X3515 |
| Usage weight (T) (without ripper) | 37.2 |
| Engine model | Customizable |
| Power (kw/r/min) | 257/2000 |
| Minimum fuel consumption g/kw.h | 245 |
| Ground length (mm) | 3150 |
| Ground pressure (MPa) | 0.105 |
| Minimum ground clearance (mm) | 500 |
| Gradability (°) | 30 |
| Number of track shoes (each side) | 41 |
| Track shoe width (mm) | 560 |
| Crawler center distance (mm) | 2140 |
| Chain track pitch (mm) | 228.6 |
| Number of supporting wheels (each side) | 2 |
| Number of supporting wheels (each side) | 7 |
| Maximum traction force (KN) | 281 |
| Blade type | Straight, half U, angle |
| Blade capacity (m*) | Straight 10 Half U 11.7 Angle 6.2U 16.2 |
| Blade lifting height (mm) | 1560/1560/ 1703/1560 |
| Blade depth (mm) | 560 /560/630/560 |
| Maximum blade tilt (mm) | Straight 1000 Angle 500 Half U1000 U1000 |

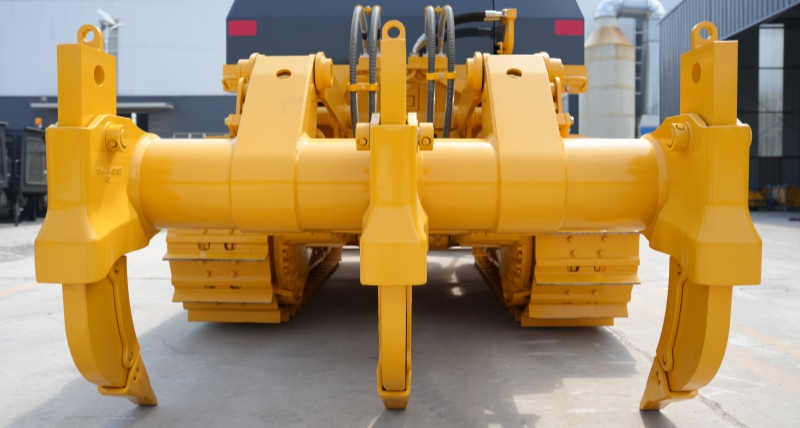

| Ripper type | Single tooth Three teeth |
| Ripper weight (T) | Single 4.1 Three 4.4 |
| Ripping depth (mm) | Single 470.Three 543 |
| Maximum ripping depth (mm) | Single 1250 Three 842 |
| Ripper lifting height (mm) | Single 995.Three 883 |
| Forward speeds (km/h) | F1:0~3.6 F2:0~6.6 F3:0~11.5 |
| Reverse speed at each gear (km/h) | R1:0~4.4 R2:0~7.8 R3:0~13.5 |
| Water tank coolant capacity (L) | 82 |
| Fuel tank capacity (L) | 640 |
| Engine oil capacity (L) | 47 |
| Blade length xheight (mm) | Straight: 4150X1592 Half U:4150X1712 Angle: 5000X1142 U:4440X1740 |

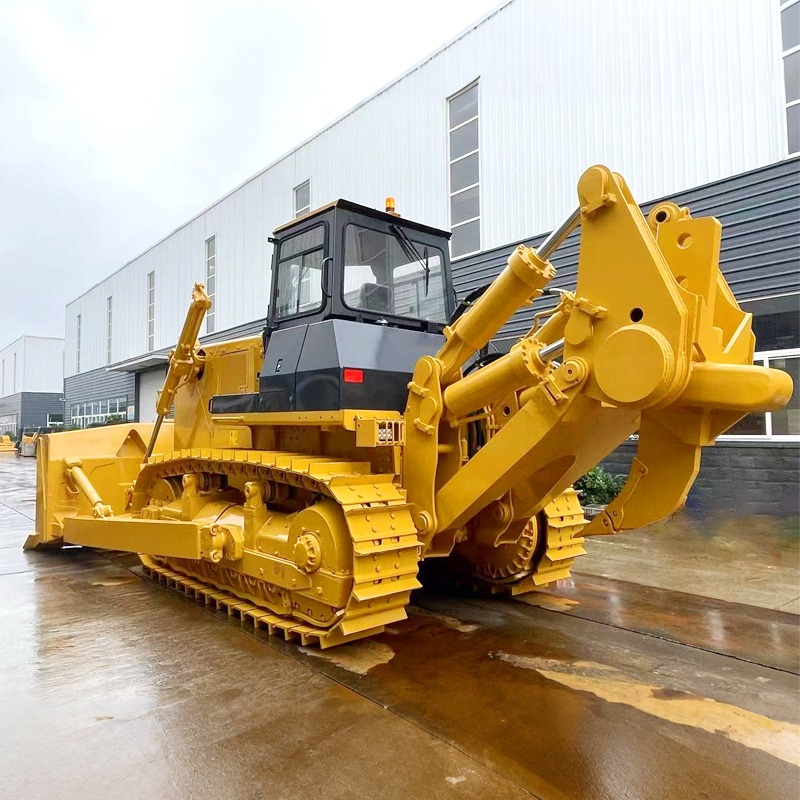

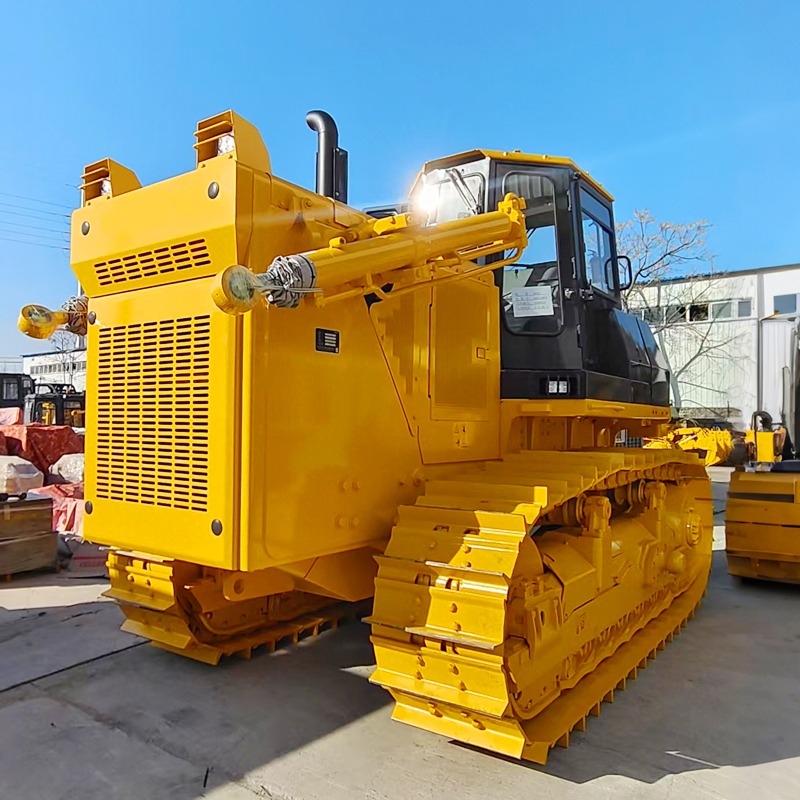

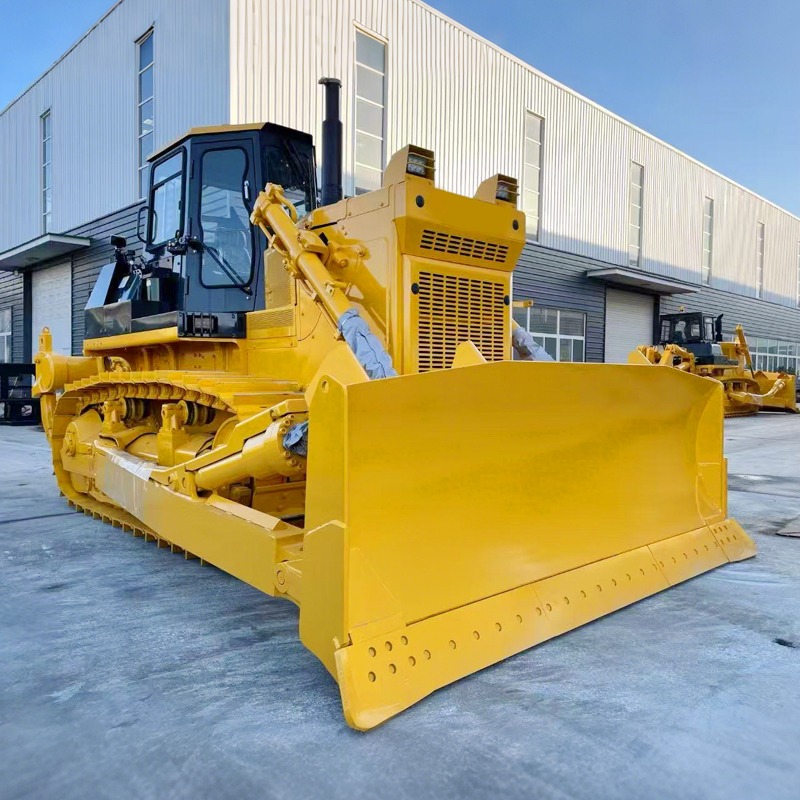

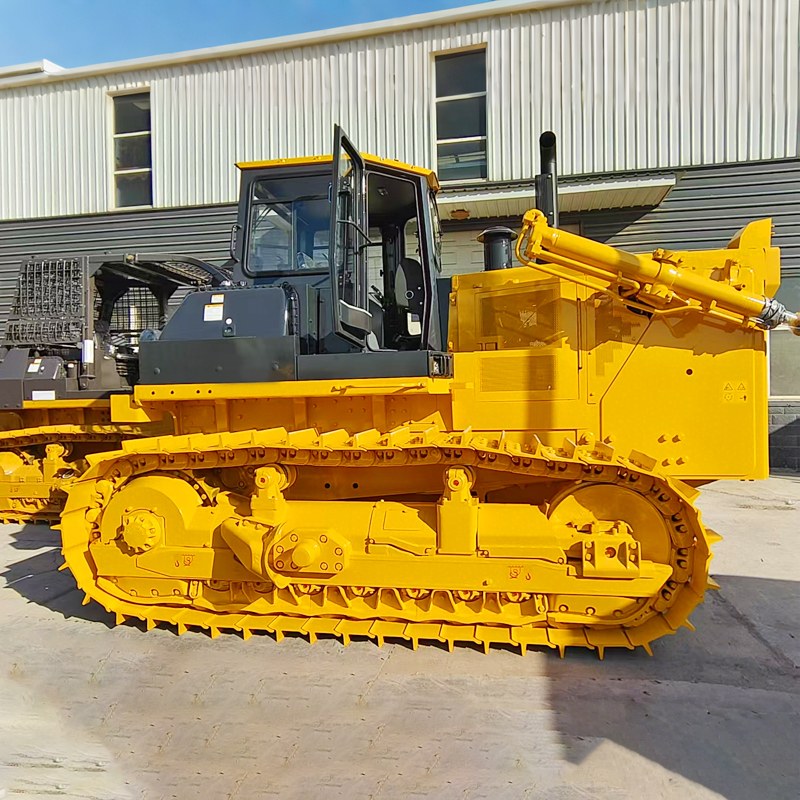

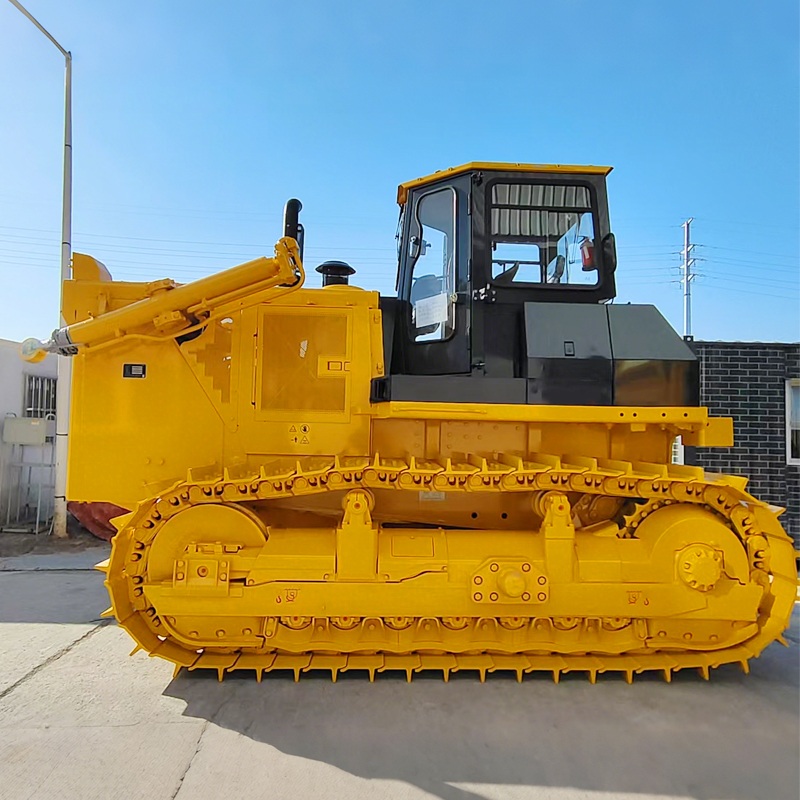

Product Photograph
Product Details
Due to the word limit of the webpage, the product introduction is not complete. If you need more information, please contact us. Our team will provide you with the best solution!
