YC60 Crawler Bulldozer Equipped with Cummins Engine
Product advantages:
1. The SDYC YC60 bulldozer adopts a modular design, which is easy to disassemble and repair.
2. The electronically controlled engine meets European emission standards, air-to-air intercooling, strong power and low fuel consumption.
3. The torque converter has a locking function and high transmission efficiency.
4. The large-displacement intelligent temperature-controlled hydraulic fan not only has perfect heat dissipation, but also reverses to remove dust.
5. Due to the current webpage, our description is not comprehensive. If you need to know more, please contact us!
Characteristics of YC60 bulldozer
1. The whole machine adopts modular design, which is easy to disassemble and repair.
2. The electronically controlled engine meets Euro III emission standards, is air-cooled, has strong power, and low fuel consumption.
3. The hydraulic torque converter has a locking function and high transmission efficiency.
4. Large displacement intelligent temperature controlled hydraulic fan, not only perfect for heat dissipation, but also capable of reversing dust removal.
5. K-type floating support wheel suspension mechanism and main section sealed lubrication track reduce overall vibration and improve the service life of the walking system.
6. Single handle variable speed steering control, quickly and efficiently achieving control over variable speed steering.
7. The working device is operated using pilot control technology, which has low operating force, high control accuracy, reduces operating intensity, and improves work efficiency.
8. The 360 degree panoramic monitoring system provides drivers with a 360 degree driving view without any blind spots, improving the convenience and safety of driving and riding.
9. The centralized lubrication system greatly improves the convenience of vehicle maintenance and effectively ensures the service life of the machine.
10. Equipped with Webasto fuel water and air heaters, the seats integrate electric heating and airbag shock absorption functions, greatly improving the adaptability to extremely cold environments and driving comfort of this vehicle.
11. It is compatible with an automatic soil loosening device, USB radio, USB charging port, etc.
Technical Parameter
| Model | YC60 |
| Dimension (mm)(without ripper) | 7640X4690X4530 |
| Dimension(mm)(with ripper) | 10390X4690X4530 |
| Weight (T)(with single ripper) | 70.63 |
| Weight (T)(without ripper) | 66.7 |
| Transport weight (excluding work unit, looser cylinder,shovel tilt cylinder,anti-roll bar,cab, driver,20% fuel) | 52.1 |
| Engine mode | Customizable |
| Power (kw/r/min) | 450/1800 |
| Engine displacement (L) | 19 |
| Maximum torque(N.m/rpm) | 3019/1300 |
| Minimum turning radius (m) | 6.786 |
| Grounding length(mm) | 3840 |
| Ground specific pressure (MPa) | 0.1469 |
| Minimum ground clearance (mm) | 610 |
| Gradeability (°) | 30 |
| Track type | Main single-tooth crawler board |
| No. of track shoes (each side) | 40 |
| Width of Track shoe (mm) | 610 |
| Track Gauge (mm) | 2500 |
| pitch (mm) | 280 |
| No of carrier rollers (each side) | 2 |
| No. of Track roller (each side) | 7 |
| Working Pressure (MPa) | 21 |
| Blade type | Semi-U Blade |
| Blade length x height (mm) | 4690X2250 |
| Blade Capacity( m3) | 18.5 |
| Blade lift height(mm) | 1660 |
| Blade depth (mm) | 715 |
| Maximum inclination of blade (mm) | 730 |
| Ripper type | single ripper |
| Ripper weight(T) | 3.59 |
| Maximum loosening depth (mm) | 1435 |
| Looseners lifting height (mm) | 1105 |

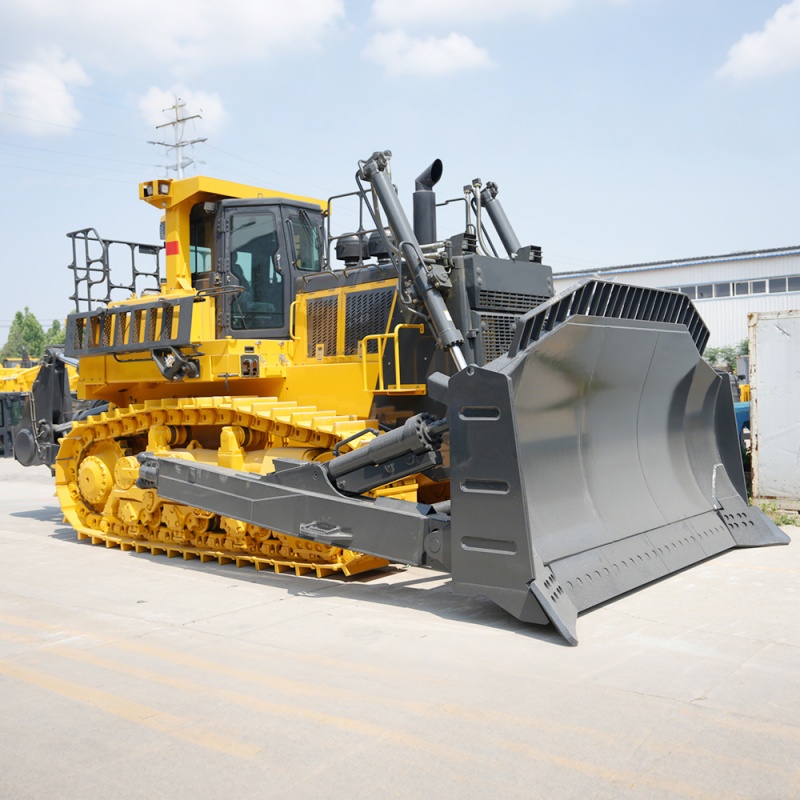

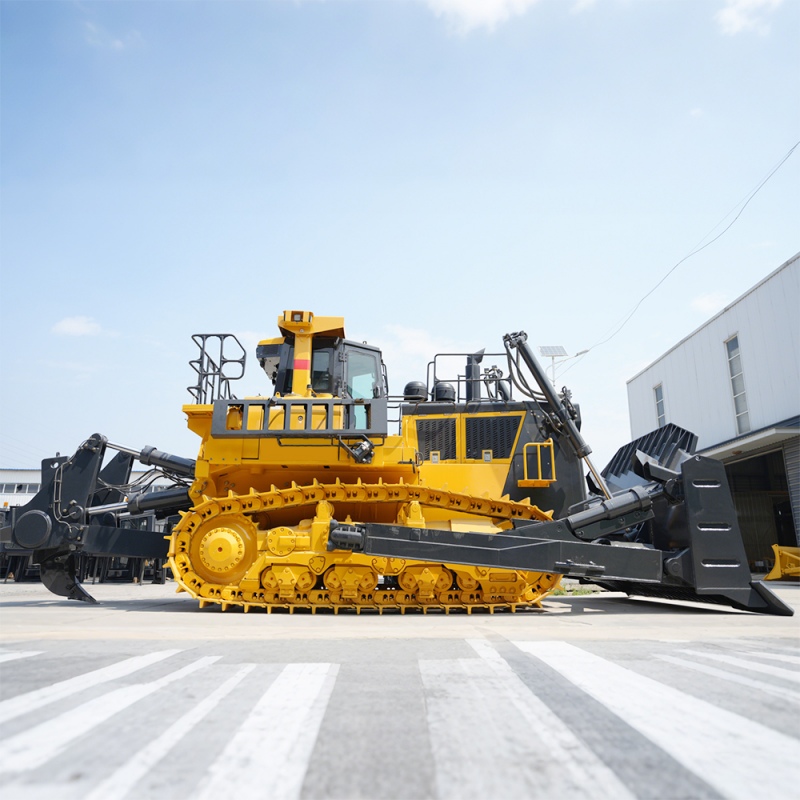

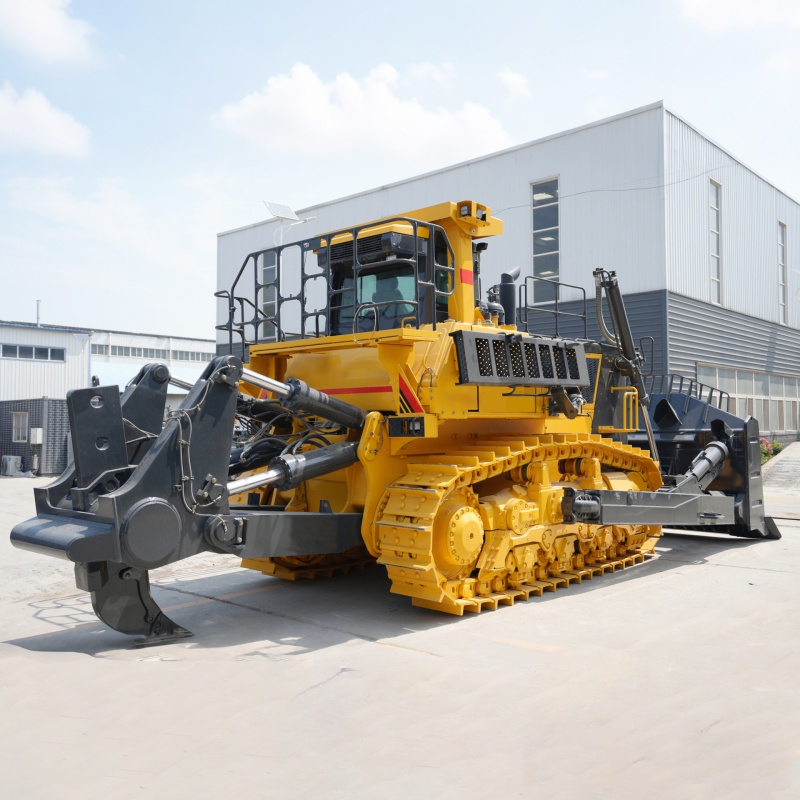

YC60 bulldozer real shot

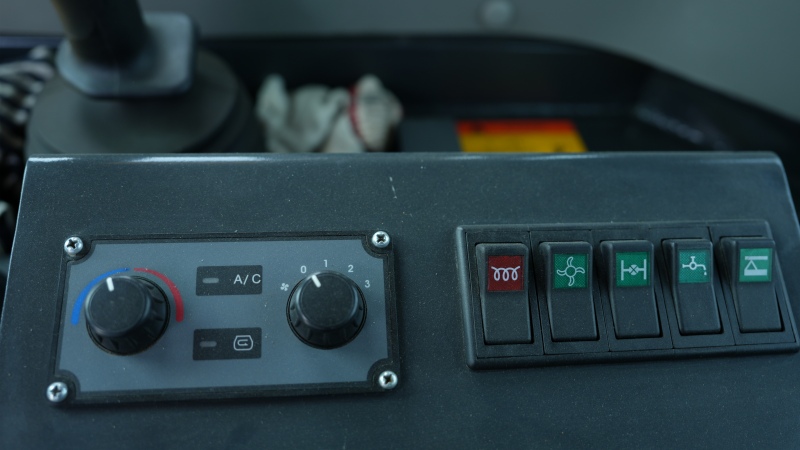

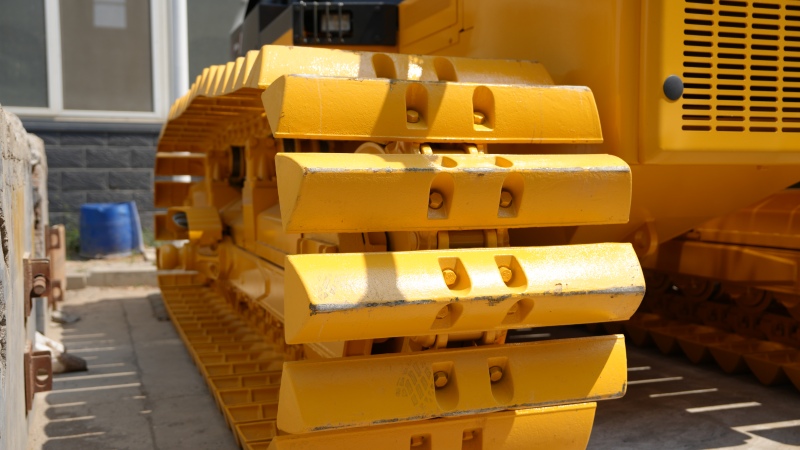

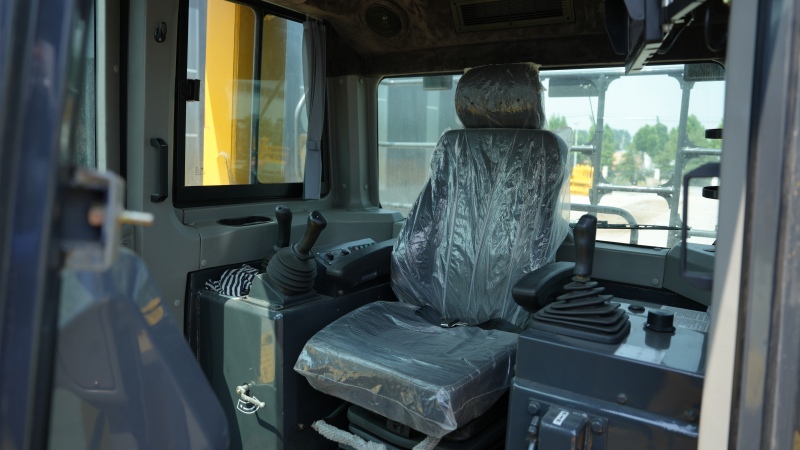

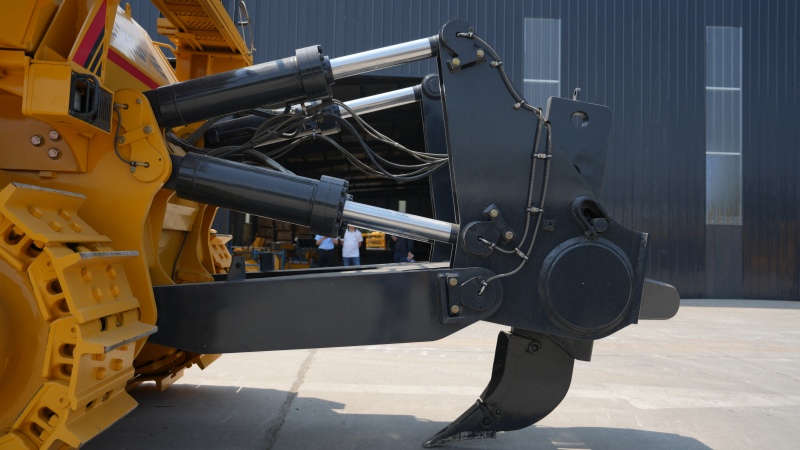

Detail display of bulldozer
Due to the word limit of the webpage, the product introduction is not complete. If you need more information, please contact us. Our team will provide you with the best solution!
