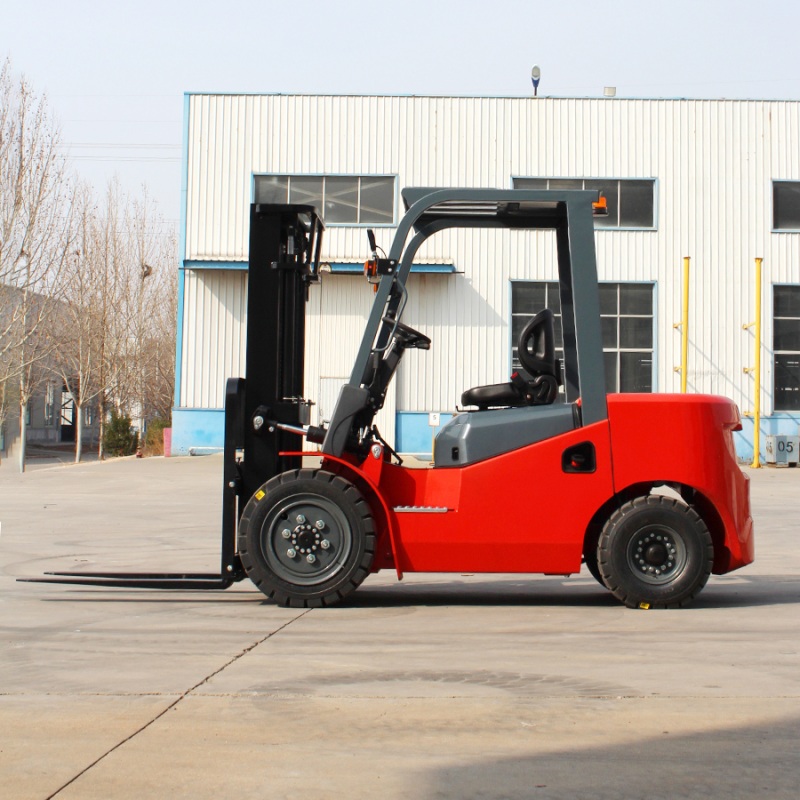

3 ton Diesel Forklift
Product Introduction
This 3-ton diesel forklift has a reliable power system. Equipped with a well-known gearbox specially developed and produced for this type of car. This product has been validated in the market for decades and is a well-known and reliable transmission system in the industry, greatly reducing the failure rate of the entire vehicle. At the same time, multiple power system auxiliary equipment effectively ensure the reliability of the system's operation.
Optional configuration
1. Engine options: well-known brands, supporting Chinese and European and American emission standards
3. Optional side shifter and fork locator.
2. Support customization of door frames ranging from 3 to 7.5 meters.
4. Provide solid and inflatable tires.
Product advantages
1. Currently, EACHAN GROUP (SDYC) has developed multiple product lines, including 0.75-5 ton electric balance weight forklifts and 2-10 ton fuel balance weight forklifts.
2. Our forklift's gearbox, gear pump, multi way valve, drive axle, steering axle, oil pipe joint, battery, battery box, engine, oil cylinder, tire, and instrument supporting manufacturers are all leading in the domestic industry.
3. Support customization, with multiple colors to choose from.
4. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
5. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
Product parameters
Model | YC30-K | |||
Power type | diesel | |||
Rated capacity | kg | 3000 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 140 | ||
Fork size | LxWxT | mm | 1070x122x45 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 460 | ||
Rear overhang | mm | 550 | ||
Min.ground clearance(Bottom of mast) | mm | 135 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 2750 | |
Overall width | mm | 1240 | ||
Mast lowered height | mm | 2070 | ||
Mast extended height (with backrest) | mm | 4065 | ||
Overhead guard height | mm | 2220 | ||
Tuming radius(outside) | mm | 2600 | ||
Speed | Travel(Unladen) | km/h | 19 | |
Lifting(Laden) | mm/sec | 430 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 18(15.7) | ||
Max.Gradeability(Laden) | % | 20 | ||
Tyre | Front | mm | 28x9-15-12PR | |
Rear | mm | 6.50-10-10PR | ||
Tread | Front | mm | 1000 | |
Rear | mm | 980 | ||
Wheelbase | mm | 1750 | ||
Self weight（oily water） | kg | 4100 | ||
Weight Distribution | Laden | Front Axle | kg | 6300 |
Rear Axle | kg | 800 | ||
Unladen | Front Axle | kg | 1536 | |
Rear Axle | kg | 2546 | ||
Rattan | Voltage/Capacity | V/Ah | 12/80 | |
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 39/2650 | ||
Rated torque/r.p.m. | N-m | 160/1980 | ||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | 90x100 | ||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

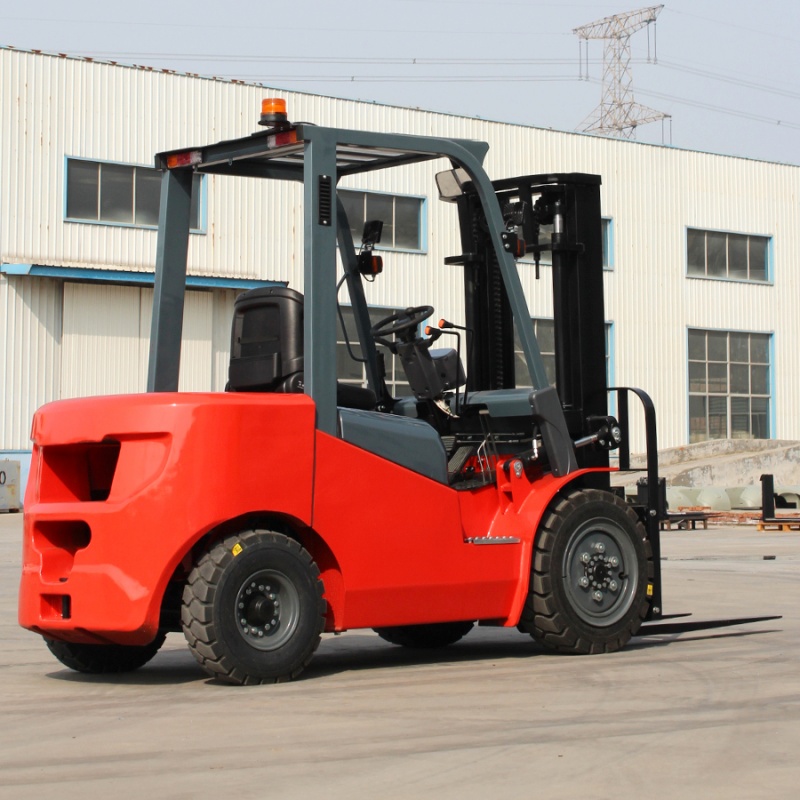

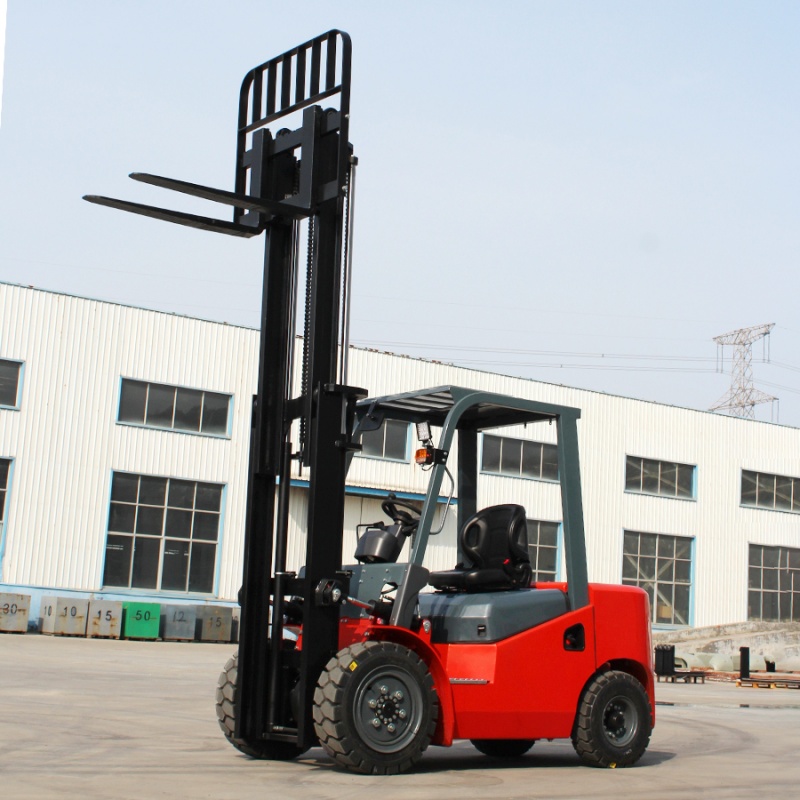

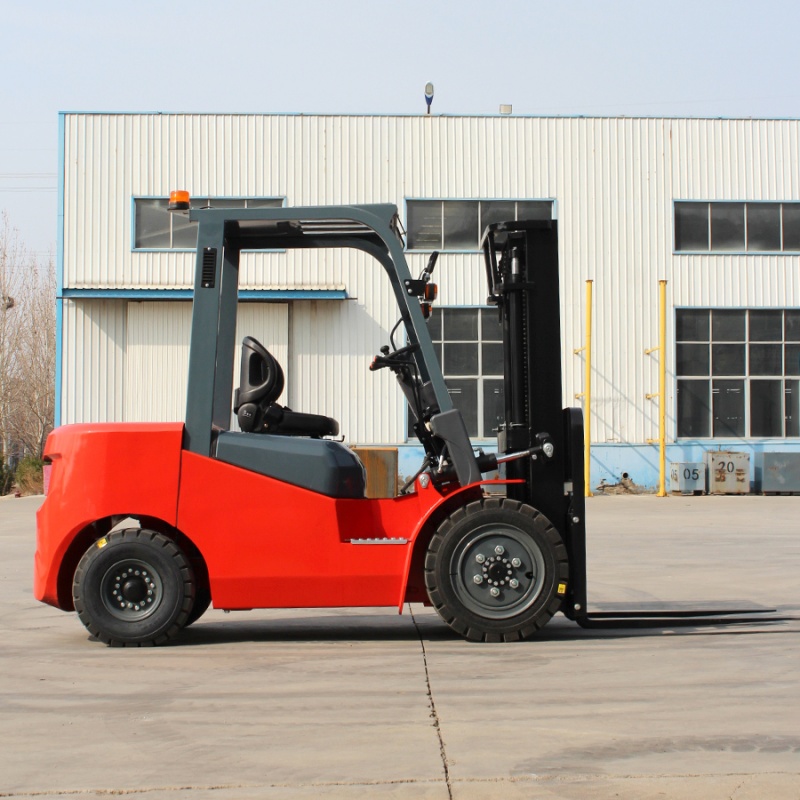

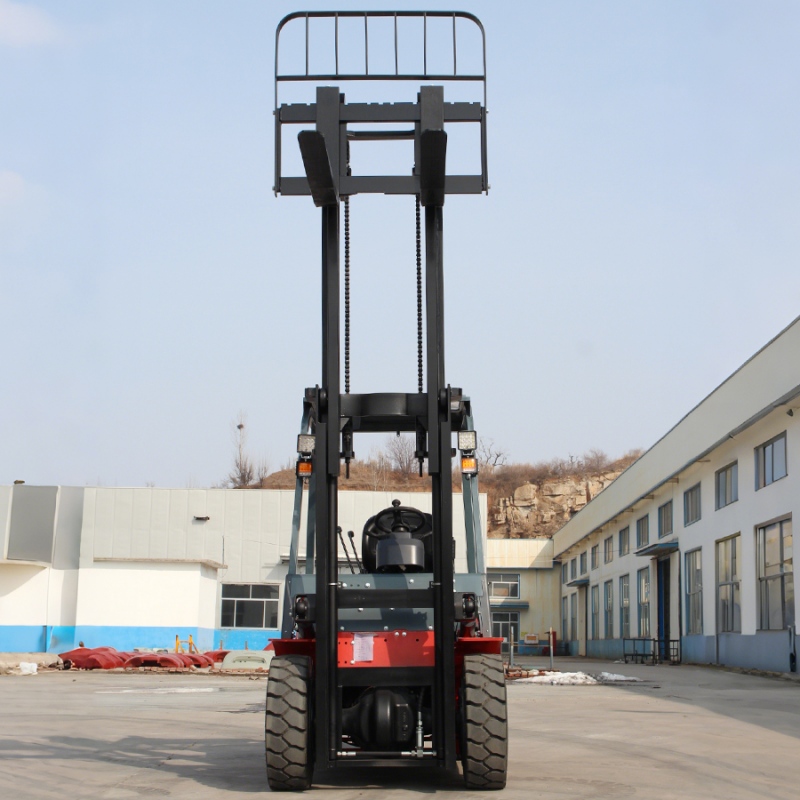

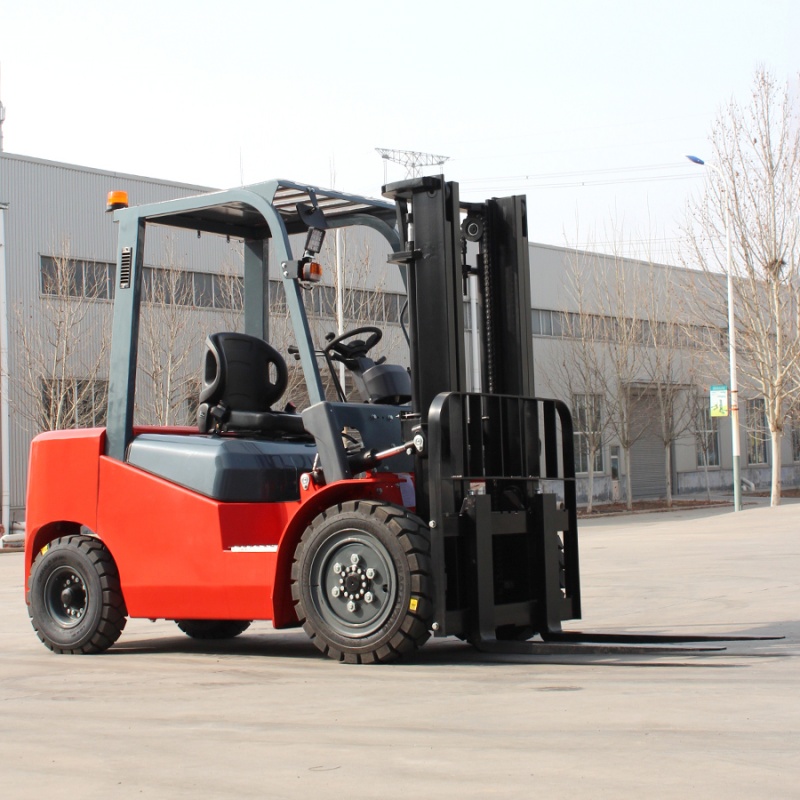

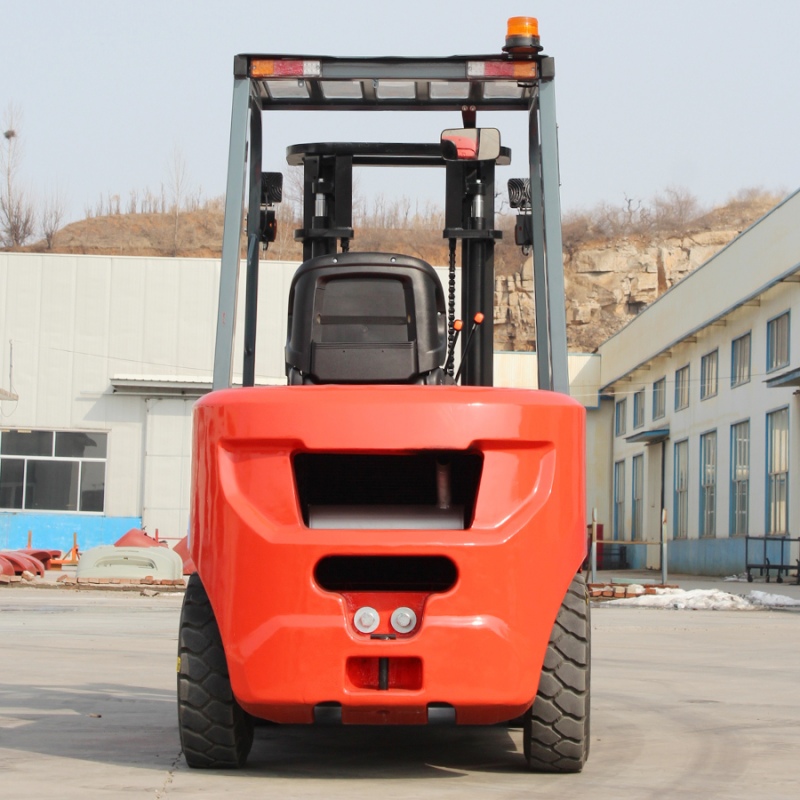

Product Display

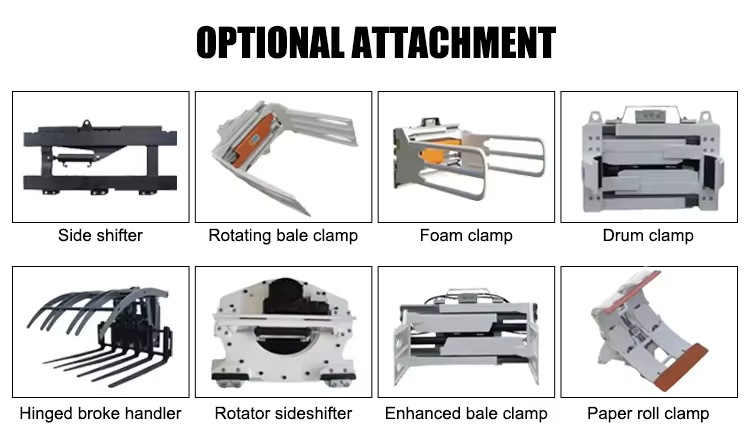

Forklift accessories
Welcome global buyers to visit the factory
The company receives a large number of foreign customers to visit and inspect the factory every year, and repeatedly places new orders. Every time, it has left a good reputation and impression on customers. From production to quality, as well as the professionalism and cultural quality of employees, it makes foreigners feel respected and have to give them a thumbs up.
In order to provide a profound product experience for global customers, the factory showroom is equipped with popular overseas models, neatly arranged spare parts, and a professional technical team provides customers with detailed product performance and technical advantages.
Since its establishment 10 years ago, SDYC has accumulated rich experience in overseas sales. Our clients come from multiple overseas countries, and the quality and professional level of our products are beyond doubt.
