3.8 ton Diesel Forklift
Reliable power system
Equipped with a well-known gearbox specially developed and produced for this type of car. This product has been validated in the market for decades and is a well-known and reliable transmission system in the industry, greatly reducing the failure rate of the entire vehicle. At the same time, multiple power system auxiliary equipment effectively ensure the reliability of the system's operation.
High security
1. The boarding pedal adopts a fully anti-skid pedal to ensure the safety of forklift drivers getting on and off the forklift.
2. The connection between the steering axle and the frame is supported by shock-absorbing rubber pads, which reduces the vibration of the entire vehicle and improves comfort.
3. The OPS seat sensing function can prevent improper driving by children and autonomous driving, ensuring the safety of the driver.
Product Introduction
Our advantages
1. EACHAN GROUP (SDYC) has developed multiple forklift product lines, including 2-10 ton fuel balance weight forklifts, 2-5 ton off-road forklifts, and 0.75-5 ton electric balance weight forklifts.
2. All products comply with national and EU emission standards.
3. Support customization, with multiple colors to choose from.
4. Our forklift's gearbox, gear pump, multi way valve, drive axle, steering axle, oil pipe joint, battery, battery box, engine, oil cylinder, tire, and instrument supporting manufacturers are all leading in the domestic industry.
5. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
6. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
Optional configuration
1. Engine options: well-known brands, supporting Chinese and European and American emission standards
3. Optional side shifter and fork locator.
2. Support customization of door frames ranging from 3 to 7.5 meters.
4. Provide solid and inflatable tires.
parameter
Model | YC38-K | |||
Power type | diesel | |||
Rated capacity | kg | 3800 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 150 | ||
Fork size | LxWxT | mm | 1070x122x50 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 485 | ||
Rear overhang | mm | 590 | ||
Min.ground clearance(Bottom of mast) | mm | 135 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 2820 | |
Overall width | mm | 1240 | ||
Mast lowered height | mm | 2070 | ||
Mast extended height (with backrest) | mm | 4065 | ||
Overhead guard height | mm | 2220 | ||
Tuming radius(outside) | mm | 2650 | ||
Speed | Travel(Unladen) | km/h | 19 | |
Lifting(Laden) | mm/sec | 400 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 18(18) | ||
Max.Gradeability(Laden) | % | 16 | ||
Tyre | Front | mm | 28x9-15-12PR | |
Rear | mm | 6.50-10-10PR | ||
Tread | Front | mm | 1000 | |
Rear | mm | 980 | ||
Wheelbase | mm | 1750 | ||
Self weight（oily water） | kg | 4550 | ||
Weight Distribution | Laden | Front Axle | kg | 7520 |
Rear Axle | kg | 830 | ||
Unladen | Front Axle | kg | 1600 | |
Rear Axle | kg | 2950 | ||
Rattan | Voltage/Capacity | V/Ah | 12/80 | |
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 39/2650 | ||
Rated torque/r.p.m. | N-m | 160/1980 | ||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | 90x100 | ||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

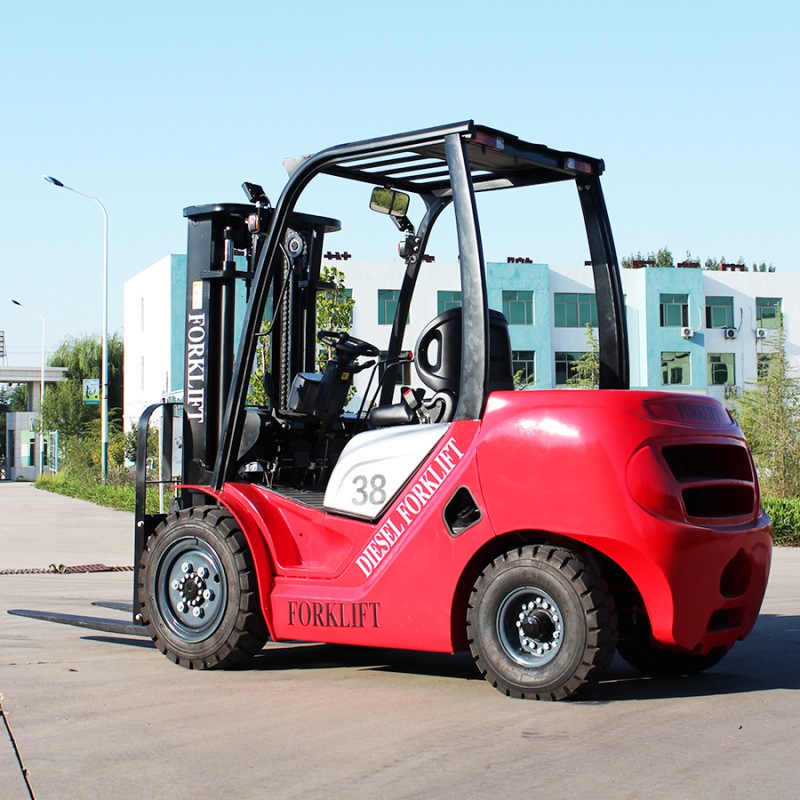

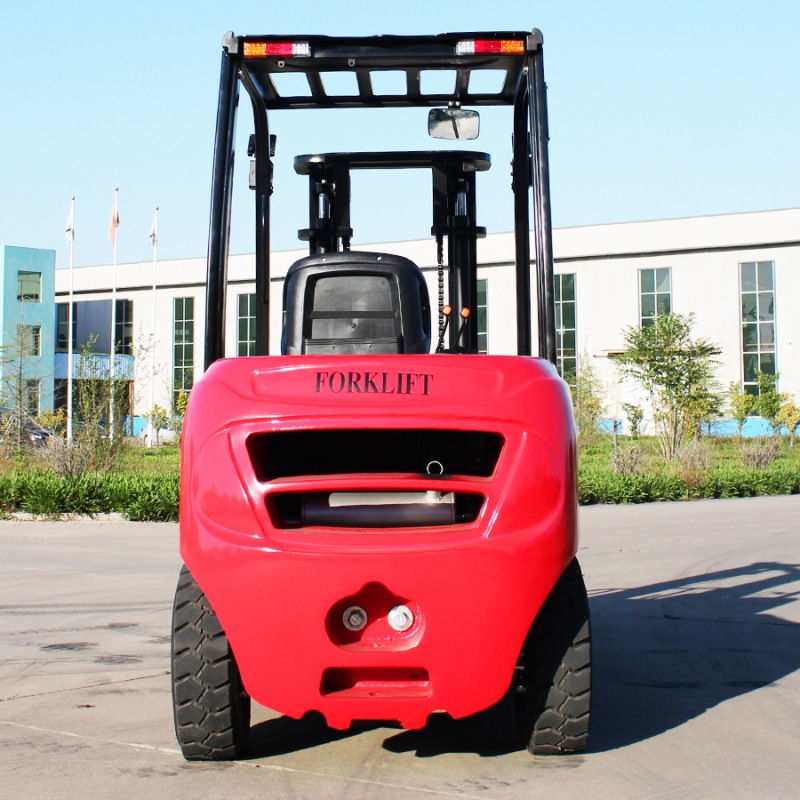

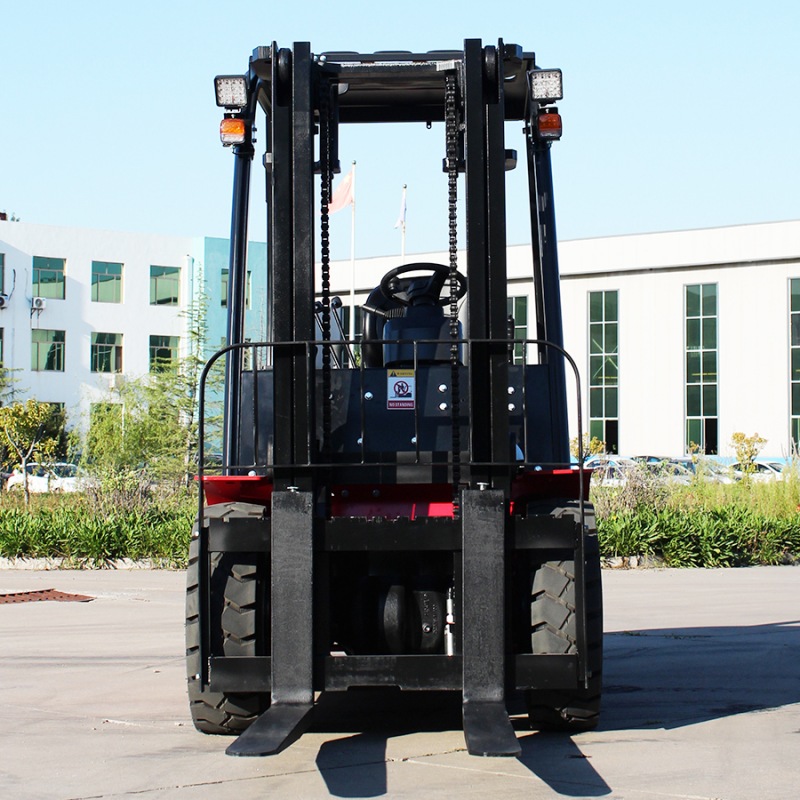

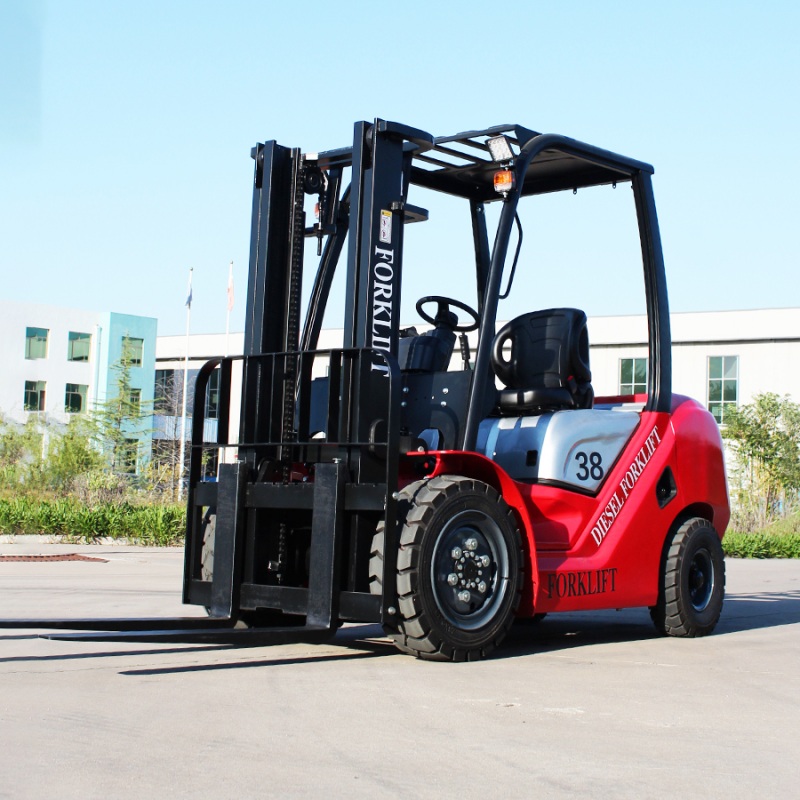

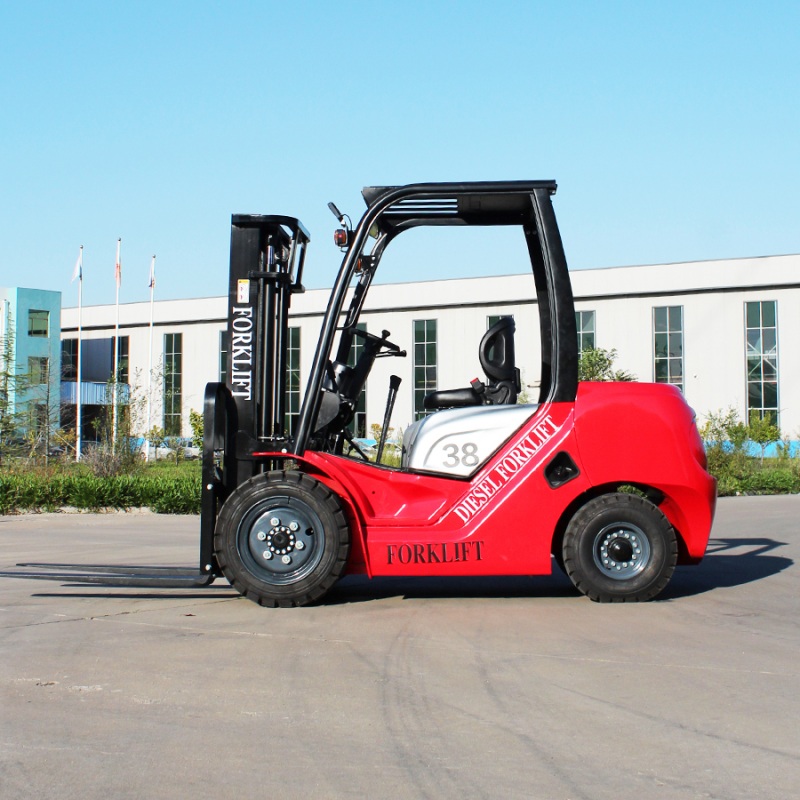

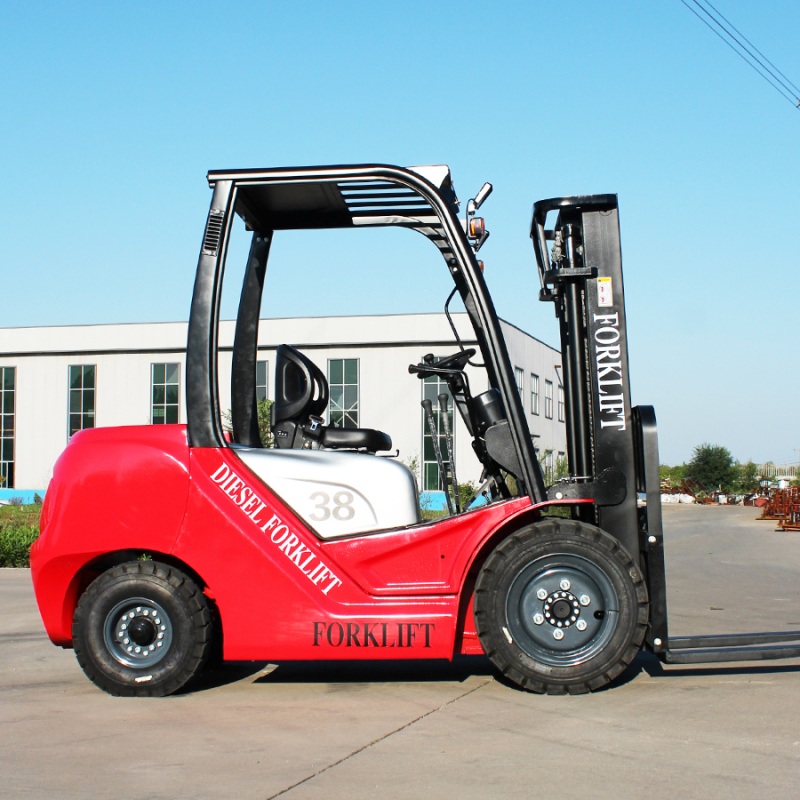

Product images

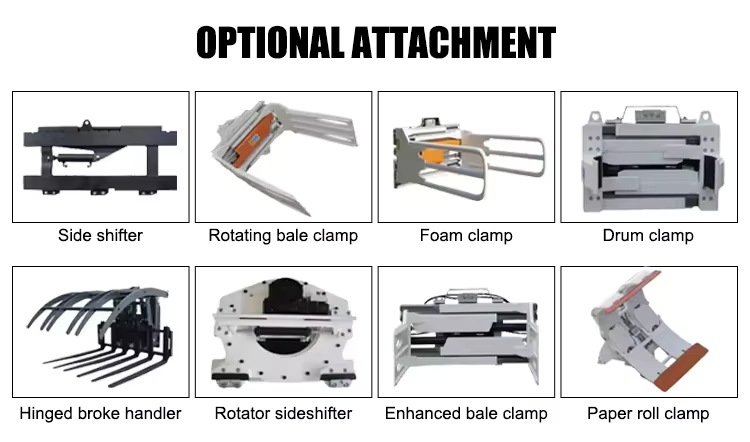

Forklift accessories
Who are we
EACHAN Group (SDYC) is one of the leading forklift manufacturers in China. Our products have obtained CE certification, comply with European V-class and American EPA4 emission standards, and have been supplied to more than 40 countries, enjoying a high reputation. We have over ten years of experience in the production and export of construction machinery. We have developed multiple forklift product series, including 2-10 ton fuel balanced forklift, 2-5 ton off-road forklift, and 0.75-5 ton electric balanced forklift. We have advanced technology and guarantee the meticulous production of every machine, providing thoughtful service every time. We strictly adhere to all process requirements, making it convenient for global buyers to purchase and feel comfortable to use. Our mission is to provide serious service, high-quality delivery service, and customer satisfaction.
