Diesel Forklift YC35-K
Our advantages
1. EACHAN GROUP (SDYC) has developed multiple forklift product lines, including 2-10 ton fuel balance weight forklifts, 2-5 ton off-road forklifts, and 0.75-5 ton electric balance weight forklifts.
2. All products comply with national and EU emission standards.
3. Support customization, with multiple colors to choose from.
4. Our forklift's gearbox, gear pump, multi way valve, drive axle, steering axle, oil pipe joint, battery, battery box, engine, oil cylinder, tire, and instrument supporting manufacturers are all leading in the domestic industry.
5. Adequate inventory can accept large quantities of orders. Welcome to become our agent!
6. This is a one-stop service platform for forklifts. Please contact us immediately, and our team will provide you with the best solution!
Forklift introduction
advantage
1. The smooth line design gives the forklift a dynamic appearance, and the whole machine adopts a brand new appearance design, which has successfully applied for patent protection.
2. The core components such as gearbox and drive axle are selected from imported high-quality components, significantly reducing the failure rate and ensuring excellent product reliability.
3. Equipped with a cast steering axle, the structure is compact and lightweight, with minimal deformation after loading, and excellent dust and water resistance, effectively improving product life and reliability.
4. Adopting high-strength and aging resistant high-quality air filters can better adapt to complex and harsh working environments, ensuring long-term stable operation of the equipment.
5. The design of the H-shaped steel portal frame is optimized by increasing the cross-sectional arc, and the overall structure is firm and reliable, providing a solid guarantee for high-intensity operations.
Reliable power system
Equipped with a well-known gearbox specially developed and produced for this type of car. This product has been validated in the market for decades and is a well-known and reliable transmission system in the industry, greatly reducing the failure rate of the entire vehicle. At the same time, multiple power system auxiliary equipment effectively ensure the reliability of the system's operation.
High security
1. The boarding pedal adopts a fully anti-skid pedal to ensure the safety of forklift drivers getting on and off the forklift.
2. The connection between the steering axle and the frame is supported by shock-absorbing rubber pads, which reduces the vibration of the entire vehicle and improves comfort.
3. The OPS seat sensing function can prevent improper driving by children and autonomous driving, ensuring the safety of the driver.
Technical Parameter
Model | YC35-K | |||
Power type | diesel | |||
Rated capacity | kg | 3500 | ||
load Centre | mm | 500 | ||
Lift height | mm | 3000 | ||
Free lift height | mm | 145 | ||
Fork size | LxWxT | mm | 1070x122x50 | |
Mast tilt angle | F/R | Deg | 6"/12" | |
Front overhang | mm | 465 | ||
Rear overhang | mm | 550 | ||
Min.ground clearance(Bottom of mast) | mm | 135 | ||
Overall dimensions | Length to face of fork (without fork) | mm | 2750 | |
Overall width | mm | 1240 | ||
Mast lowered height | mm | 2070 | ||
Mast extended height (with backrest) | mm | 4065 | ||
Overhead guard height | mm | 2220 | ||
Tuming radius(outside) | mm | 2600 | ||
Speed | Travel(Unladen) | km/h | 19 | |
Lifting(Laden) | mm/sec | 400 | ||
Lowering(Laden) | mm/sec | 450 | ||
Max. Drawbar pull(Laden/unladen) | KN | 18(18) | ||
Max.Gradeability(Laden) | % | 18 | ||
Tyre | Front | mm | 28x9-15-12PR | |
Rear | mm | 6.50-10-10PR | ||
Tread | Front | mm | 1000 | |
Rear | mm | 980 | ||
Wheelbase | mm | 1750 | ||
Self weight（oily water） | kg | 4390 | ||
Weight Distribution | Laden | Front Axle | kg | 7080 |
Rear Axle | kg | 810 | ||
Unladen | Front Axle | kg | 1590 | |
Rear Axle | kg | 2810 | ||
Rattan | Voltage/Capacity | V/Ah | 12/80 | |
Engine | model | customized | ||
Manufacture | customized | |||
Rated output/r.p.m. | kw | 39/2650 | ||
Rated torque/r.p.m. | N-m | 160/1980 | ||
No.of Cylinder | 4 | |||
Bore x Stroke | mm | 90x100 | ||
Displacement | cc | 2540 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission | Manufacture | CHINA | ||
Type | Mechankcal/Hydraulic | |||
Stage | F/R | 1/1 (2/2) | ||
Operating pressure(For attachments) | Mpa | 17.5 | ||

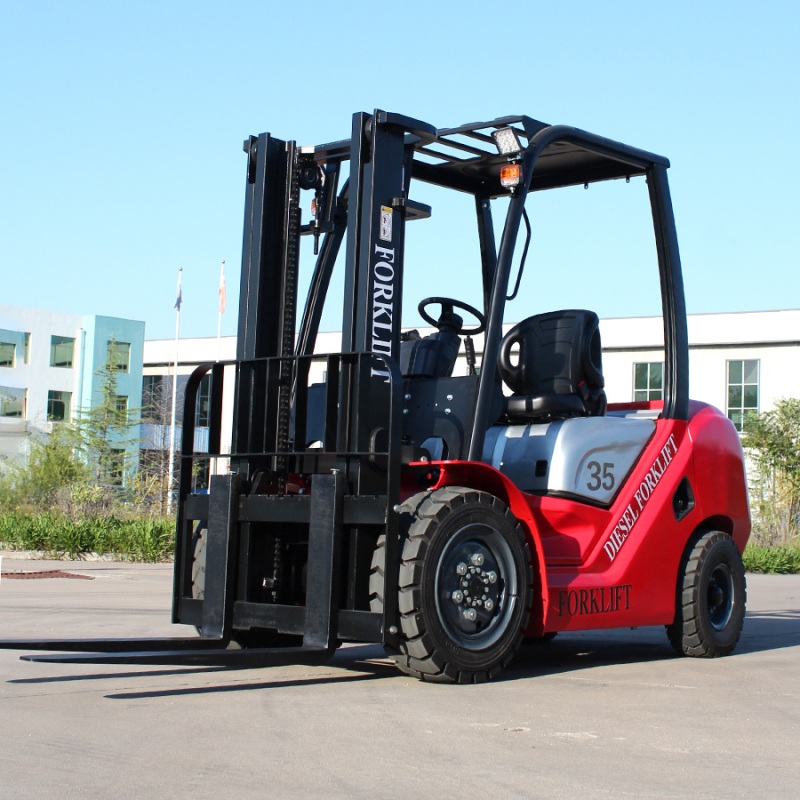

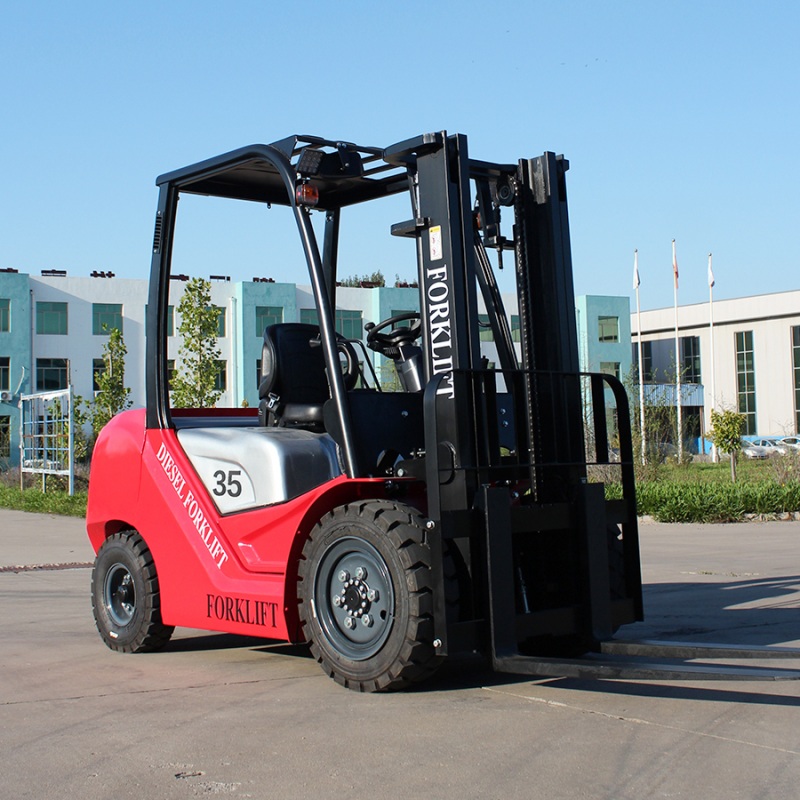

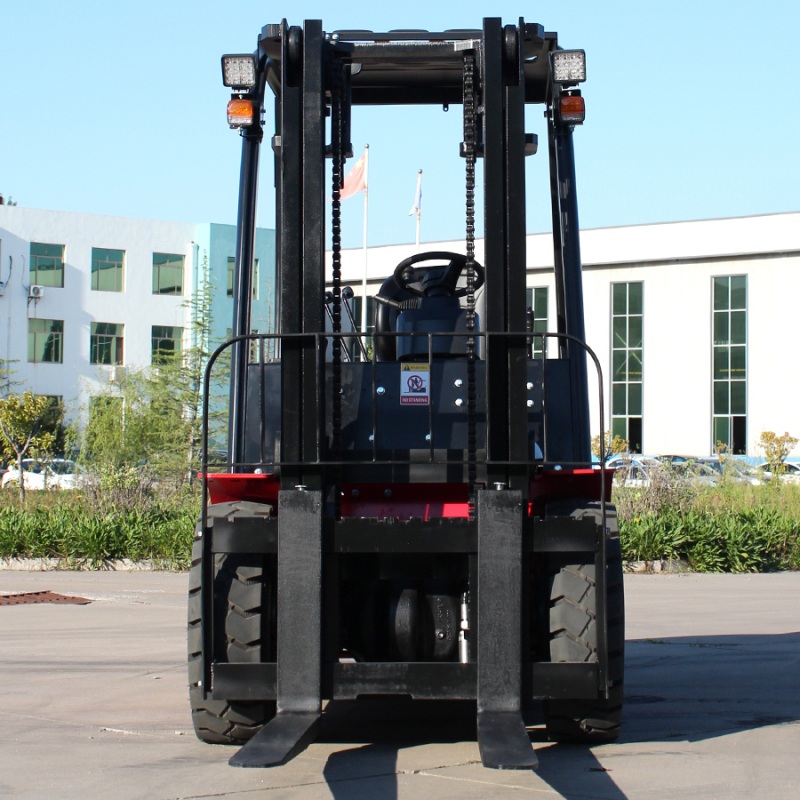

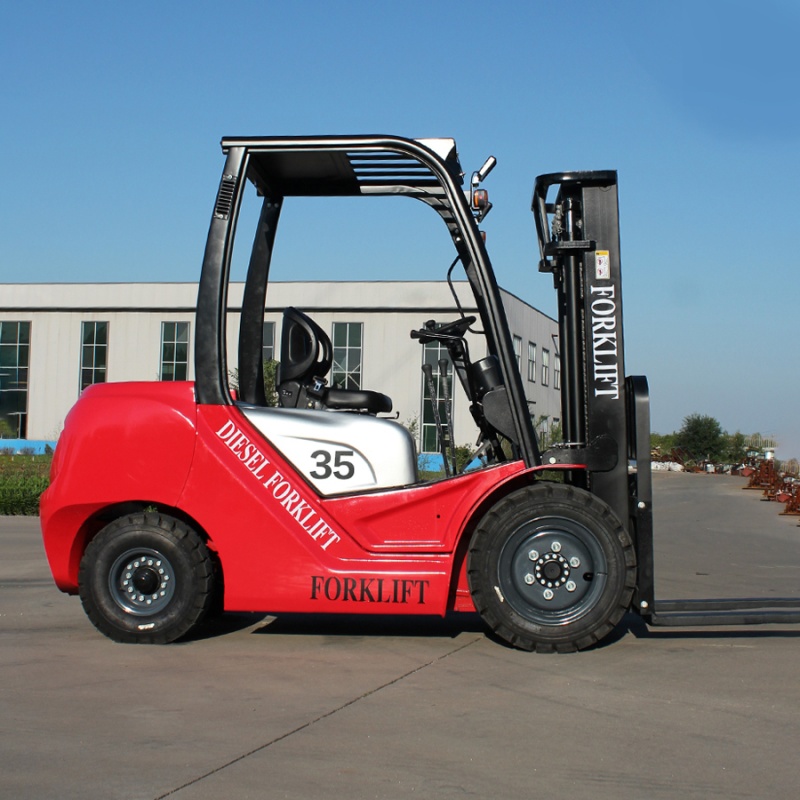

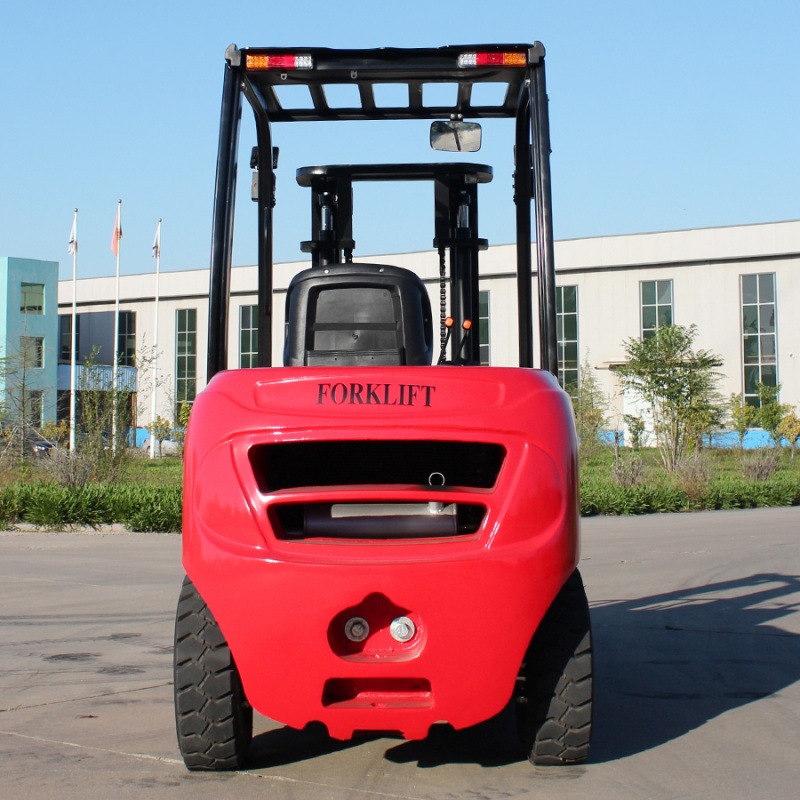

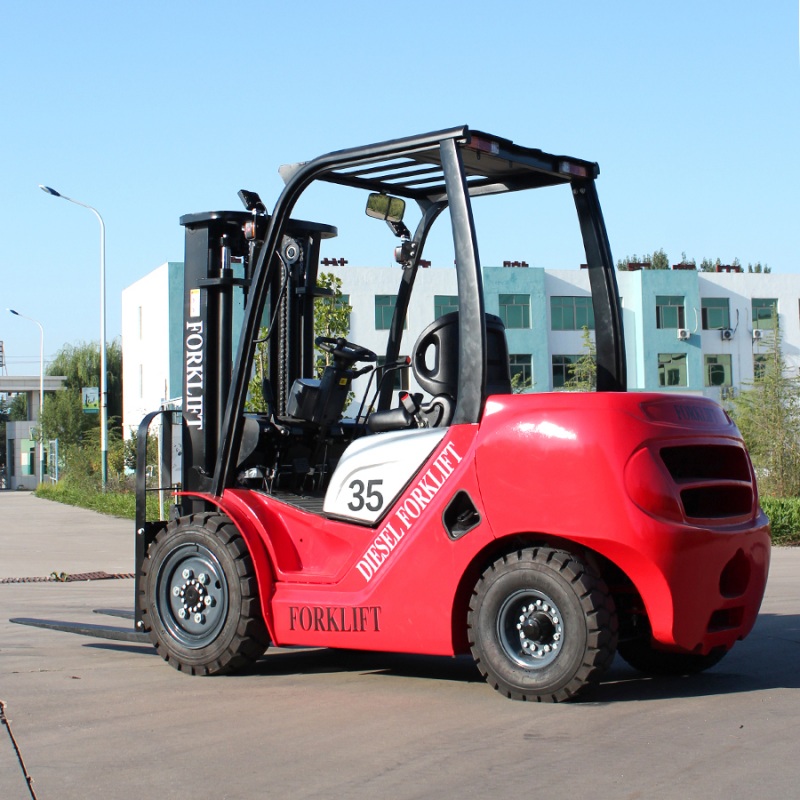

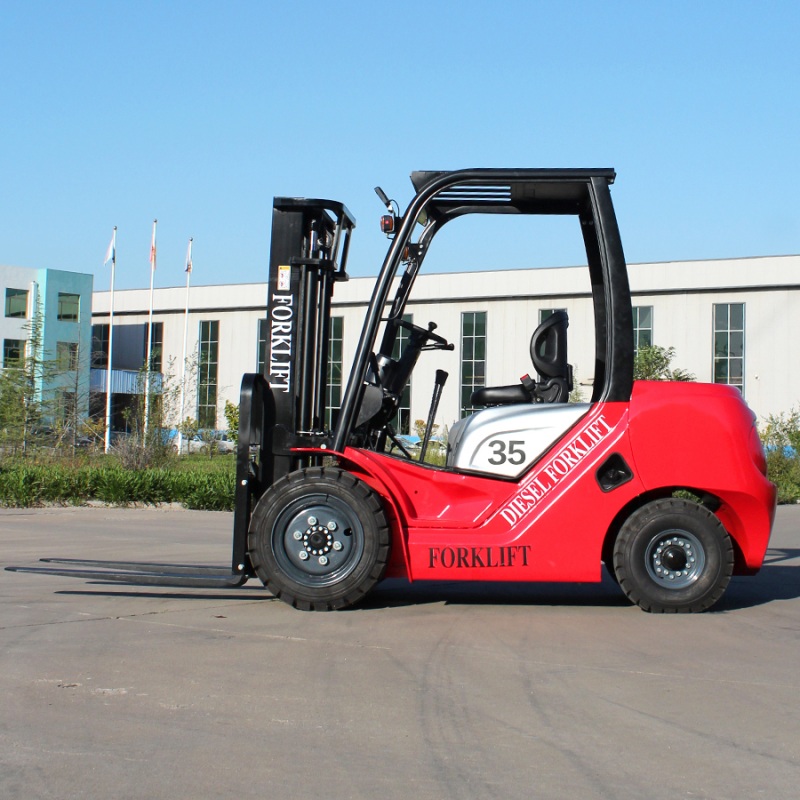

Product images

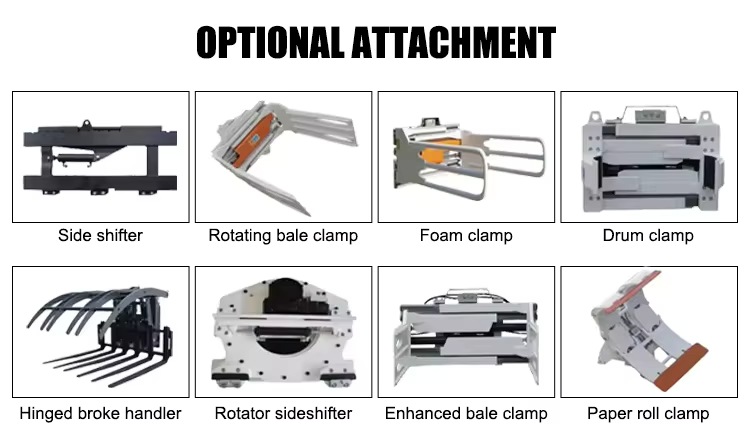

Multiple assistive devices
